Mcd5-1200C - Mcd5-1600C (G5C) - Danfoss MCD500 Service Manual

Service Instructions

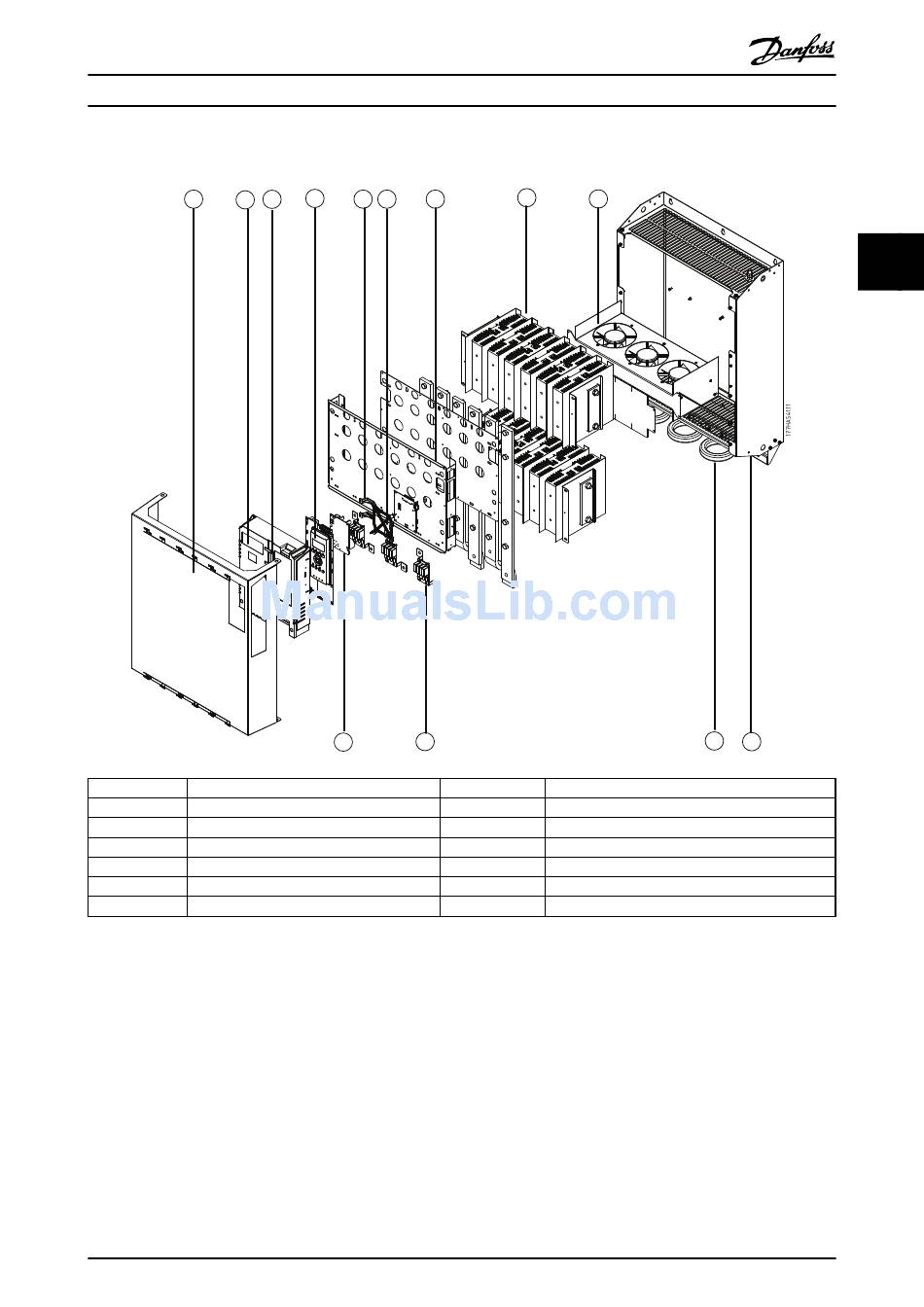

3.1.6 MCD5-1200C - MCD5-1600C (G5C)

1 2
1 Cover
2 Main plastic
3 Cable guide
4 LCP and Main Control PCB
5 Bypass driver PCB
6 Support plastic
7 Model PCB
MCD 500 Service Manual
4
3 6 7 9
5 8
®
MG.17.L4.02 - VLT is a registered Danfoss trademark
10
11
8 Snubber assembly
9 Magnetic bypass plate
10 Power assembly
11 Fan assembly
12 Current transformer assembly
13 Main body
