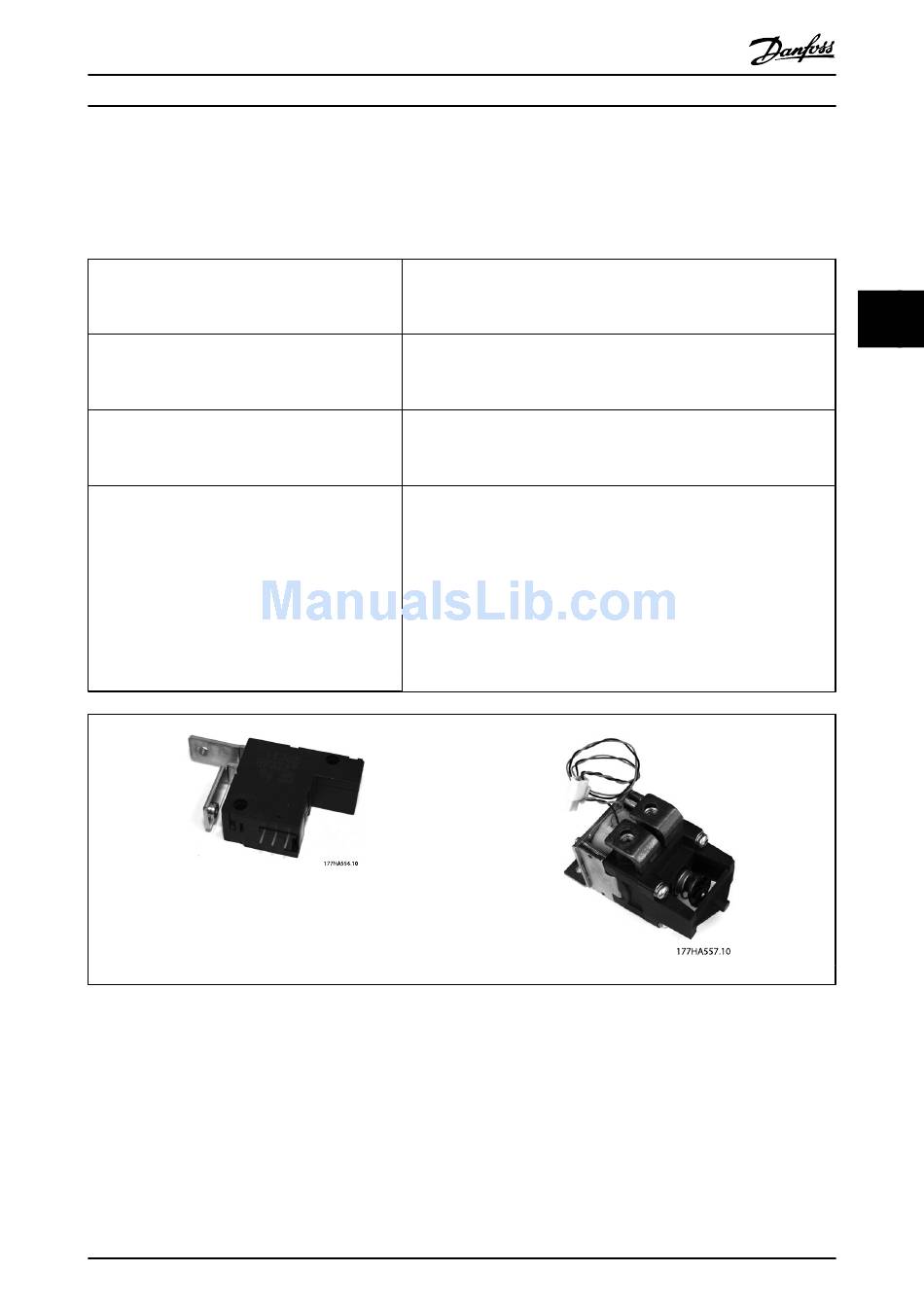

4.10 Bypass Contactors

Models MCD5-0021B - MCD5-0215B are internally bypassed. The bypass contactor for models MCD5-0021B - MCD5-0053B is
included in the Model PCB. The bypass contactors for models MCD5-0068B - MCD5-0215B are shown below. Each soft starter
requires three bypass contactors.
MCD5-0021B
MCD5-0037B
MCD5-0043B
MCD5-0053B
MCD5-0068B
MCD5-0084B
MCD5-0089B
MCD5-0105B
MCD5-0131B
MCD5-0141B
MCD5-0195B
MCD5-0215B
MCD5-0245C
MCD5-0360C
MCD5-0380C
MCD5-0428C
MCD5-0595C
MCD5-0619C
MCD5-0790C
MCD5-0927C
MCD5-1200C
MCD5-1410C
MCD5-1600C
175G5660
1
Bypass contactor upgrade. Refer to Product Note PN04 MCD
500 Bypass Contactor Upgrade for more information.
MCD 500 Service Manual
®
MG.17.L4.02 - VLT is a registered Danfoss trademark
Not required
175G5660
175G5661
175G5697 1
Not required
175G5661/175G5697
