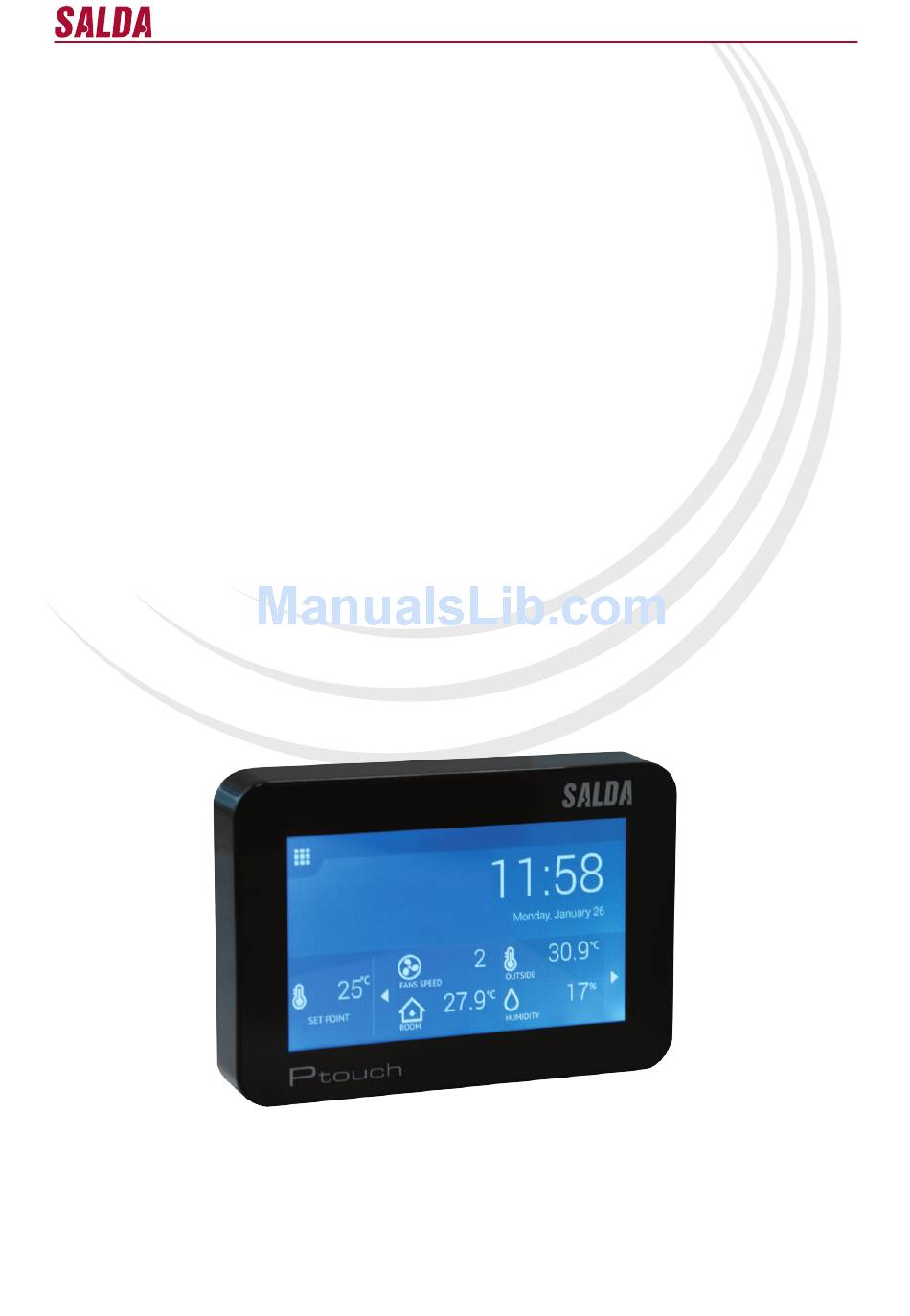

- Page 1 • Remote control panel Ptouch User manual Ragainės g. 100, LT-78109 Šiauliai, Lithuania Tel. (+370 41) 540415 Fax. (+370 41) 540417 Art.-no. PRGPU081 office@salda.lt PRV_P0099_AZ_0001 www.salda.lt...
-
Page 2: Table Of Contents
TABLE OF 1 GENERAL INFORMATION ...................... 3 CONTENTS 2 USER MANUAL .......................... 3 2.1 Main window ........................3 2.2 Temperature setting window ..................4 2.3 Fan speed setting window ................... 5 2.4 Lock screen ........................6 2.5 Menu window ........................6 2.6 Device status window ....................8 2.7 Night cooling ........................ -
Page 3: User Manual

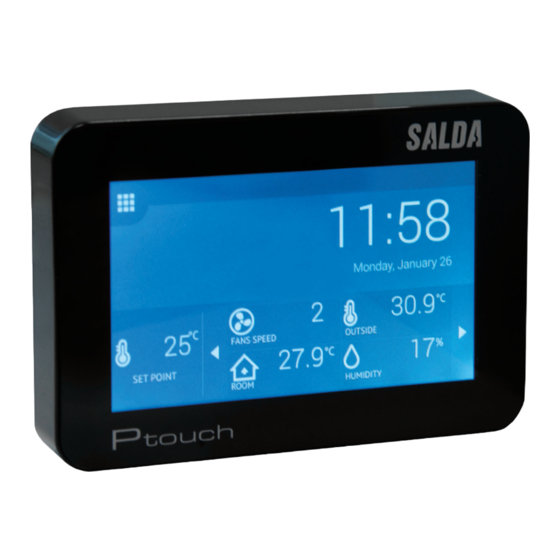

GENERAL INFORMATION Ptouch remote control panel is designed for: • SALDA ventilation units and other devices based on PRV, MCB or ECO controllers; • Modbus-controlled devices. Remote control panels guarantee optimal comfort of operation, monitoring, maintenance and service. All operations can be performed using remote panel, which displays the status of the system, fault reports and service settings. -
Page 4: Temperature Setting Window
Number Function Displays the date and time Displays the outdoor air temperature Dislpays the extract (room) temperature Displays the extract air humidity Number Function Click to open the menu window Click to open the temperature setting window Click to open the fan speed setting window Click to open the previous indicators Click to open the next indicators 2.2 Temperature setting window... -
Page 5: Fan Speed Setting Window
2.3 Fan speed setting window Number Function Active fan speed mode Number Function Click to activate the “Stand-by” mode (if other settings allow this) Click to turn on the fan speed 1 Click to turn on the fan speed 2 Click to turn on the fan speed 3 Click to turn on/off the “BOOST”... -
Page 6: Lock Screen
2.4 Lock screen Number Function Active fan speed mode Dislpays the extract (room) temperature Displays the extract air humidity Displays the outdoor air temperature 2.5 Menu window... - Page 7 Number Function Click to open the previous row Click to open the next row Click to open the status monitoring window Click to open the night-time cooling function settings window Click to open the fans boost function settings window Click to open the date and time settings window Click to open the weekly schedule setting window Click to open the filter timer settings window Click to open the alarms window...
-
Page 8: Device Status Window
2.6 Device status window Number Function Supply air temperature Exhaust air temperature Extract (room) air temperature Outdoor air temperature Fan speed setting The state of the BOOST function Supply fan speed... -
Page 9: Night Cooling
Extract fan speed The state of the fan power circuit (turned on/off ) Extract air humidity Set Point system temperature The state of the stand-by function Active system mode Air damper state The state of the heater power circuit (turned on/off ) Pre-heater state 2.7 Night cooling Number Function... -
Page 10: Fans Boost
Number Function Function on/off switch Buttons to increase value Buttons to decrease value 2.8 Fans boost Number Function Displays the setting of the BOOST function time in minutes Number Function Click to increase/decrease the „BOOST” function time... -
Page 11: Date And Time
2. 9 Date and time Number Function Displays the year Displays the month Displays the day Displays hours (24h format) Displays minutes Number Function Buttons to increase value Buttons to decrease value... -
Page 12: Weekly Schedule
2.10 Weekly scheduler Number Function On/off indicator for selected event (green strip – event is on) Active weekdays (green strips); inactive weekdays (gray strips) Event time (24h format) New fan speed which will be set as current on occurrence of selected event New set point which will be set as current on occurrence of selected event Marker showing the event (or weekday) which is being modified... -
Page 13: Filter Timer
2.11 Filter timer Number Function Working hours remaining till filter service Number Function Click to reset the filter timer. Use only after filter replacement and at Your own risk 2.12 Alarms... -
Page 14: Settings Menu
Number Function List of current active alarms Number Function Reset alarms NOTE: All active alarms are also shown on a main window. 2.13 Settings menu Number Function User interface language selection User interface theme selection Child protection lock settings Screen brightness and dimming settings Sound settings... -
Page 15: Language Selection
2.13.1 Language selection Number Function Buttons to select the language for user interface 2.13.2 Theme selection Number Function Buttons to select the theme for user interface... -
Page 16: Child Protection Lock Settings
2.13.3 Child protection lock settings Number Function Current setting indication Number Function Lock delay. Inactivity time to trigger the lock screen Range: [OFF or 10-1200 s] Unlock PIN code. Digit 1 Range: [0-9] Unlock PIN code. Digit 2 Range: [0-9] Unlock PIN code. Digit 3 Range: [0-9] Unlock PIN code. -
Page 17: Screen Brightness And Dimming Settings
2.13.4 Screen brightness and dimming settings Number Function Current setting indication Number Function Screen brightness for normal active mode Range: [70-100 %] Dimming level for dimmed mode Range: [30-70 %] Inactivity time to trigger dimmed mode Range: [30-300 s] Turn off the screen function ON: screen is turned off after specified inactivity time OFF: screen is never turned off Inactivity time to turn off the screen Range: [30-2000 s]... -
Page 18: Sound Settings
2.13.5 Sound settings Number Function Current setting indication Number Function Click tone switch: ON: Each button press is indicated by a short beep; OFF: No beeps.
