Salus iT500 User Manual

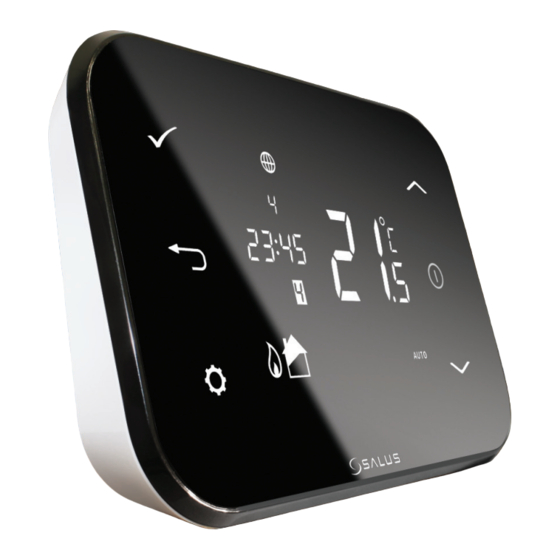

Wall or surface mount internet thermostat
Hide thumbs Also See for iT500:

Advertisement

Table of Contents

See also: Instruction Manual , Installation Manual
iT500 Internet Thermostat
U S E R M A N U A L

Advertisement

Table of Contents
loading

Related Manuals for Salus iT500

Summary of Contents for Salus iT500

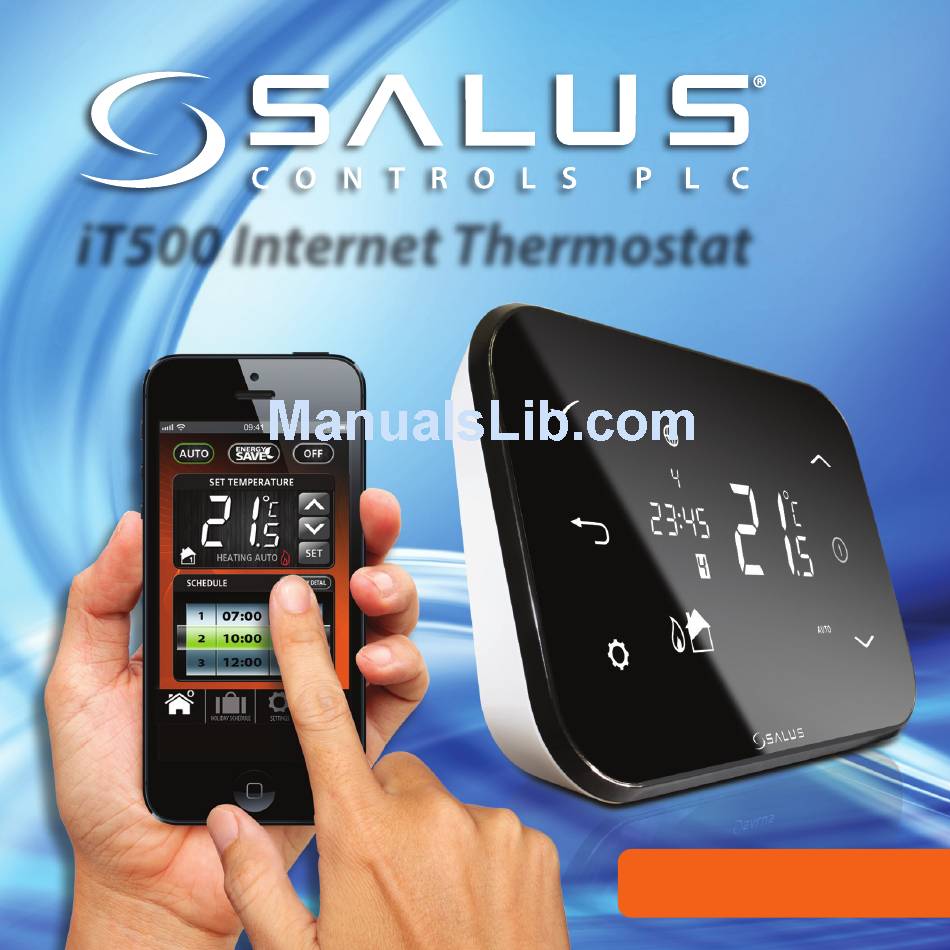

  • Page 1 Internet Thermostat U S E R M A N U A L...
  • Page 2 Product compliance & safety information These instructions are applicable to the SALUS Controls model stated on the front cover of this manual only, and must not be used with any other make or model. This accessory must be fitted by a competent person, and installation must comply with the guidance provided in the current IEE Wiring Regulations and current Building Regulations.

  • Page 3: Contents Of The Box

    Contents of the box iT500TR Thermostat iT500RX Receiver iTG500 Gateway ADSL Cable iTA500 Power adaptor Optional Stand Fixing screws & plugs Wall mount Bracket iT500 User Manual 03...

  • Page 4: Installation

    Installation Please refer to the installation guide. The installation guide also shows how to connect your iT500 thermostat to the internet. Connection & Control www.salus-controls.com For details please refer to page 18 in the installation manual. 04 iT500 User Manual...

  • Page 5: Lcd Overview

    Indicates touch lock is activated Battery status Indicates battery is low Holiday indicator Indicates holiday operation mode is selected Internet indicator Indicates connection to iTG500 and SALUS server Cooling indicator Indicates cooling output is on* ON indicator Hot water continuously on* Once indicator...
  • Page 6 Controls Increase Confirm Display ON Backup Settings Decrease 06 iT500 User Manual...

  • Page 7: Identify Your System Type

    One central heating zone only. One central heating zone plus hot water. Two central heating zones. iT500 Display iT500 Display iT500 Display Smartphone Display Smartphone Display Smartphone Display PC Display PC Display PC Display iT500 User Manual 07...
  • Page 8 One Central Heating Zone System PC & Smartphone Control Now that you have identified your system type, you can use your PC or smartphone to fully control your iT500. Energy save will use the lowest set temperature on your daily schedule.
  • Page 9 One Central Heating Zone System Local Control Control available on your Smartphone or PC is also available locally on the iT500. Temporary override of your temperature The operations Press the power button to described in the next start and use the buttons...
  • Page 10 One Central Heating Zone System Local Control Switching your heating from AUTO to OFF. Press the power button to start and use the buttons indicated to switch from AUTO to OFF. The unit will return to the home screen. 10 iT500 User Manual...
  • Page 11 Two Central Heating Zones System PC & Smartphone Control Now that you have identified your system type, you can use your PC or smartphone to fully control your iT500. For information regarding the control of an individual zone via Smartphone Two central heating zones.
  • Page 12 SET temperature. Then press the tick to accept. Note: Status has been added. Press to cancel temporary override. Note: Status has been added. Note: Gear wheel is now illuminated indicating manual override of set temperature. 12 iT500 User Manual...
  • Page 13 Switching your heating from AUTO to OFF. Zones 1 and 2. Press the power button to start and use the buttons indicated to switch from AUTO to OFF. To go straight to zone two, short press iT500 User Manual 13...

  • Page 14: One Central Heating Zone

    One Central Heating Zone + Hot Water System PC & Smartphone Control Now that you have identified your system type, you can use your PC or smartphone to fully control your iT500. Energy save will use the lowest set temperature on your daily schedule.
  • Page 15 Override program temperature* Change/view weekly hot water schedule Change/view weekly heating Current schedule program Current program Hot water boost Home Holiday Settings Back Home Holiday Settings Back iT500 User Manual 15...

  • Page 16: Hot Water

    One Central Heating Zone + Hot Water System Local Control Temporary override of your temperature and boosting your hot water. Press the power button to start and use the buttons indicated to change the SET temperature. Then press the tick to accept. To go straight to hot water, short press Note:...
  • Page 17 Switching your heating from AUTO to OFF and overriding hot water AUTO mode. To go straight to hot water, short press Hot water permanently on Hot water on once Hot water permanently off Return to home screen iT500 User Manual 17...

  • Page 18: Default Program Schedules

    Default Program Schedules Central Heating PROGRAM WEEKDAY (1 to 5) WEEKDAY (6 to 7) Your iT500 comes pre-set Time 6:00am Time 6:00am Setpoint Temp 21ºC Setpoint Temp 21ºC with these default Time 8:00am Time 8:00am program schedules. Setpoint Temp 14ºC Setpoint Temp 14ºC...
  • Page 19 Friday. Please continue to program 2 on the next page. Program for Monday to Friday Continually pressing will keep the screen on continually. Program for Monday to Friday and program for Sat/Sun All week programmer iT500 User Manual 19 Individual day programming...
  • Page 20 Viewing or changing your program schedule Two zone configuration You are now ready to set program 2 Repeat steps for program Program for Saturday and Sunday Repeat steps for program Please follow steps All programs now set starting on previous page...
  • Page 21 Please follow steps starting on previous two pages To enter Central Heating program Note: Hot Water has ON and OFF for specific To select Hot Water program program times rather than temperatures Follow steps on previous two pages iT500 User Manual 21...

  • Page 22: Setting Time And Date

    Program Menu: Setting Time and Date Hour When connected to the internet, the iT500 will set the time and date automatically. However this can also be set manually. Minute Long press to enter user settings. Month At any time press...

  • Page 23: Useful Information

    Smartphone App. override of set button. temperature press and hold Exiting Energy Mode Lock Function To enable or disable lock To enter or exit function press energy mode, press and hold the button. together. iT500 User Manual 23...
  • Page 24 Useful information The bottom switch will show a constant red When the iT500RX Receiver and the iT500 light when the iT500RX Receiver is ready to Thermostat are powered and paired then the pair. light will be green. Flashing blue light indicates a heat call/Hot...
  • Page 25 (Due to internet speed this may take several attempts) Where do I download my Smartphone app to control the iT500? A. If you have an iPhone, please search for iT500 on the app store, if you have an Android; search for iT500 on Google play.
  • Page 26 A. Check that the top slide switch on the receiver unit is in the AUTO position. A. Perform a quick installation check by putting the top slide switch to Manual position, and the bottom slide switch to CH. The boiler should fire, if not the iT500 receiver may be wired incorrectly. Please contact your installer.
  • Page 27 A. Check that you have the power supply turned ON to the gateway and it has a steady green light showing. The green light indicates you are connected to the SALUS server. A. If you have all the above, remove a battery from the iT500 and replace after 10 seconds. This will reboot the iT500 and bring you back online.
  • Page 28 TECHNICAL: T: +44 (0) 1226 323961 E: tech@salus-tech.com www.salus-controls.com SALUS Controls is a member of the Computime Group Maintaining a policy of continuous product development SALUS Controls plc reserve the right to change specification, design and materials of products listed in this brochure without prior notice.
