GETTING STARTED

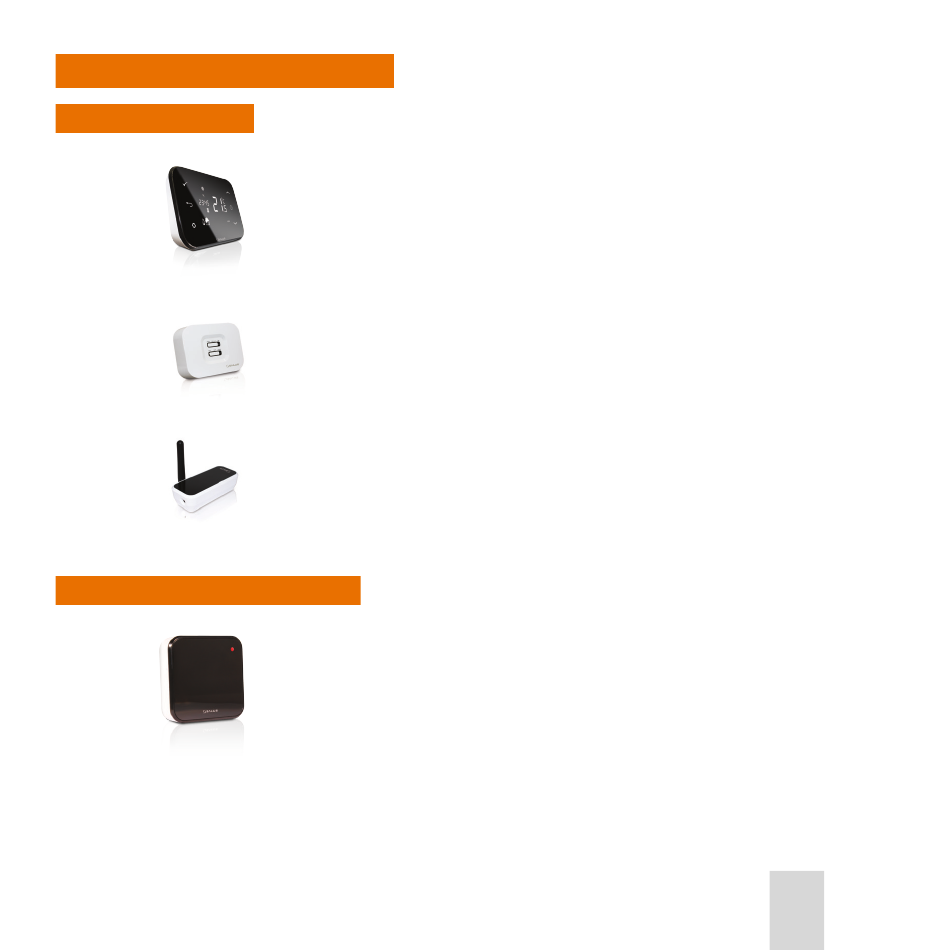

In the Box
Optional Equipment

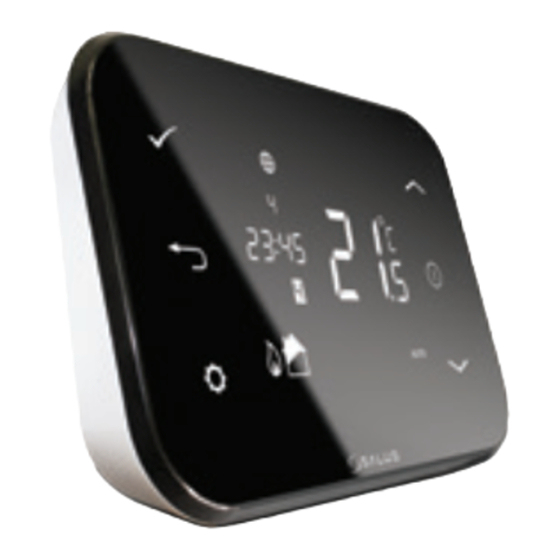

The iT500 Thermostat - replaces your fixed hardwired thermostat and
also the timer or programmable part of your heating controller. This unit
communicates with the iT500RX Receiver. It can be located anywhere in your
home as it is portable and battery powered.
Includes: 2 x AA Alkaline Batteries.
The iT500RX Receiver - replaces the switching part of your timer or heating
controller that is hardwired to your boiler, pump and 3-way valve. It allows for
manual override in the event of failure of your iT500 Thermostat unit.
The iTG500 Gateway - connects to your router and enables you to control
your central heating and hot water controls from outside of your home, via a
smartphone or computer.
Includes: 12V Power Supply and Ethernet Cable
The iT300TX Temperature Sensor Transmitter - replaces the second
hardwired thermostat in a two zone heating system. It can be located in
any part of the zone as it is portable and battery powered, can also be wall
mounted.
Purchased separately.
iT500 User Reference Manual
5
Advertisement
Related Manuals for Salus iT500 Series
Summary of Contents for Salus iT500 Series
- Page 1 GETTING STARTED In the Box The iT500 Thermostat - replaces your fixed hardwired thermostat and also the timer or programmable part of your heating controller. This unit communicates with the iT500RX Receiver. It can be located anywhere in your home as it is portable and battery powered. Includes: 2 x AA Alkaline Batteries.
- Page 2 Two Heating Zone Arrangement In this arrangement, the two outputs on the iT500 Thermostat Receiver are used to control two zone heating valves. The temperature in Zone 2 is controlled by the addition of an iT300 Temperature Sensor Transmitter, placed in the zone.
- Page 3 Heating plus Hot Water Arrangement This is the arrangement for installing an iT500 based control system with a single heating zone and hot water. The iT500RX Receiver is hardwired to the heating and water system components. The iT500 Thermostat is connected wirelessly to the iT500RX Receiver. Water Tank ALL RADIATORS...
-
Page 4: Connection To The Internet
Connection to the Internet To control the system via your smartphone or a remote computer, the system can optionally be connected to the Internet. The iT500 Thermostat is connected to your existing broadband router, using the iTG500 Gateway. iTG500 iTG500 Router Internet iT500... - Page 5 Pairing the iT500 System Units for the First Time Once the iT500 Thermostat and the iT500RX Receiver are physically installed, the two units need to be ‘paired’ . Pairing allows the two devices to recognise each other and to communicate wirelessly. When powering on the iT500TR Thermostat for the first time, the Thermostat will go through the sequence of screens shown below and automatically try and pair by searching for the strongest signal from an iTG500 Gateway.
-
Page 6: Connecting To Your Router
The light on the router will flash red when it is first connected and setting up. When connected to the SALUS Controls Server it will display a constant green light. -
Page 7: Controls And Display
CONTROLS AND DISPLAY iT500TR Thermostat Keypad and Display Keypad The Thermostat keypad provides six keys for configuring and setting your heating and hot water system. These are virtual keys, areas of the capacitive screen. An internal reset key is also provided for resetting the unit. - Page 8 Display Low battery Indicates Indicates Indicates Indicates that Indicates warning symbol. internet wireless unit is in Setting the keypad is that the Holiday If flashing, very connection is communication Mode. override is locked. Press low battery. active. is active, active. together transmitting or to unlock.
- Page 9 iT500RX Thermostat Receiver Controls The iT500RX provides manual control of the system in the event that the wireless connection fails. Auto - Manual - Off - switches Ch - Aux - Ch/Aux - switches Auto -system controlled by Should be set to match controlled programs in iT500TR Control system i.e.: Thermostat...
