Summary of Contents for Bartscher IK 235Z
- Page 1 IK 235Z 105.838 V1/1011...
-
Page 2: Table Of Contents
6. Cleaning and maintenance 6.1 Safety advice 6.2 Cleaning 6.3 Safety instructions for maintenance 7. Possible Malfunctions 31-32 8. Waste disposal Bartscher GmbH Franz-Kleine-Str. 28 D-33154 Salzkotten phone: +49 (0) 5258 971-0 Germany fax: +49 (0) 5258 971-120 - 17 -... -
Page 3: General Information
1. General information 1.1 Information about the instruction manual This instruction manual contains information about the installation, operation and maintenance of the device and should be consulted as an important source of information and reference guide. Awareness of the safety instructions and instructions for use in this manual will ensure the safe and correct use of the device. -
Page 4: Liability And Warrantees
1.3 Liability and Warrantees All the information and instructions in this manual take into account standard safety regulations, current levels of technical engineering as well as the expertise and experience we have developed over the years. The instruction manual was translated with all due care and attention. However, we do not accept liability for any translation errors. -
Page 5: Safety
2. Safety This section provides an overview of all important safety aspects. In addition every chapter provides precise safety advice for the prevention of dangers which are highlighted by the use of the above mentioned symbols. Furthermore, attention should be paid to all pictograms, markers and labels on the device, which must be kept in a permanent state of legibility. -
Page 6: Intended Use
CAUTION! o The device is not intended for use by individuals (including children) with physical or mental disabilities, insufficient experience, and/or insufficient knowledge unless such persons are under the care of a person responsible for their safety or have received instructions regarding appropriate use of the device. -
Page 7: Delivery, Packaging And Storage
3. Transport, packaging and storage 3.1 Delivery check Please check the delivery upon completeness and transport damage immediately after receipt. In case of visible damage do not accept or accept the delivery with reservation only. Note the extent of damage on the carrier’s bill of delivery. Trigger off the complaint. Hidden damages should be reclaimed immediately after notice, as claims for damages can only be asserted within the effective period for complaints. -
Page 8: Technical Data

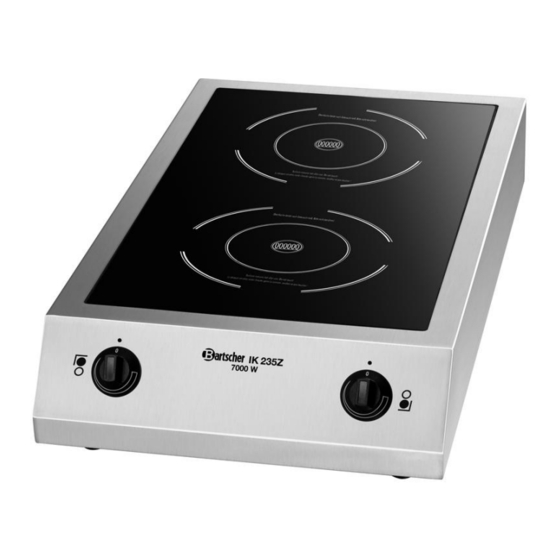

4. Technical data 4.1 Technical specification Name Induction cooker IK 235Z 105.838 Article No: Made of: stainless steel housing, glass cooking surface Power levels: 10 (800 – 3500 W / 800 - 3500 W) Total power connection: 3 NAC 400 V / 7,0 kW... -
Page 9: Installation And Operation
5. Installation and operation 5.1 Functionality of induction cookers With induction cooker, an electric voltage is applied on a conductor spool beneath the glass. This creates magnetic fields, which directly heat up the bottom of the cookware through a physical effect. This means saving time and energy, because contrary to common hotplates, the cookware is heated up, not the heating element and the glass. - Page 10 • Do not use the device in case it does not function properly, has been damaged or dropped. • Do not use any accessory or spare parts that have not been recommended by the manufacturer. These can be dangerous for the user or lead to damages of the device or personal injury, and further, the warranty expires.
-
Page 11: Suitable And Unsuitable Cookware
5.1 litres ● Ø 24 cm ● height 11.5 cm 6.1 litres ● Ø 20 cm ● height 20.0 cm 1 pan 2.8 litres ● Ø 24 cm ● height 6.5 cm Bartscher order no. A130.442 Unsuitable cookware pots/pans with a diameterof less than 12 cm;... -
Page 12: Installation And Connection
5.4 Installation and connection Setting Up o Unpack the induction cooker and remove all packing material. o Place the device on a flat, safe surface which supports the weight and is not sensitive to heat. o Never place the device on a combustible surface (such as a tablecloth, etc.). o Do not place the induction cooker near an open flame, electric ovens, heaters or other heat sources. -
Page 13: Operating
5.5 Operating Control panel ② ① ③ ④ Digital display ⑤ ⑥ ① Setting point of rear cooking plate ② Setting point of front cooking plate ③ Knob of front cooking plate ④ Knob of rear cooking plate ⑤ Digital display of rear cooking plate ⑥... - Page 14 Turning on the device • Before turning on the device, set both knobs in the OFF position ( „0“ mark of the knob positioned at the setting point). • Place an appropriate cooking pan in the middle of the selected cooking plate. WARNING! Never place an empty pan on the cooking plate.
-
Page 15: Cleaning And Maintenance
• The power sharing is determined in such a way that both cooking plates operate simultaneously with an output of 3500 W every time. • To be able to set the device at the maximum output, both cooking plates must be turned on. -
Page 16: Cleaning
6.2 Cleaning o Clean the device regularly. o Clean the cooking surface, control panel and housing with a soft damp cloth and with a mild, and not an abrasive cleaning agent. o Always protect the rear vents of the device against dirt and dust or clean them (using a brush or air blower). -
Page 17: Waste Disposal
NOTE! For the disposal of the device please consider and act according to the national and local rules and regulations. Bartscher GmbH Franz-Kleine-Str. 28 D-33154 Salzkotten phone: +49 (0) 5258 971-0 Germany fax:...
