Summary of Contents for Bartscher IK 30S-EB

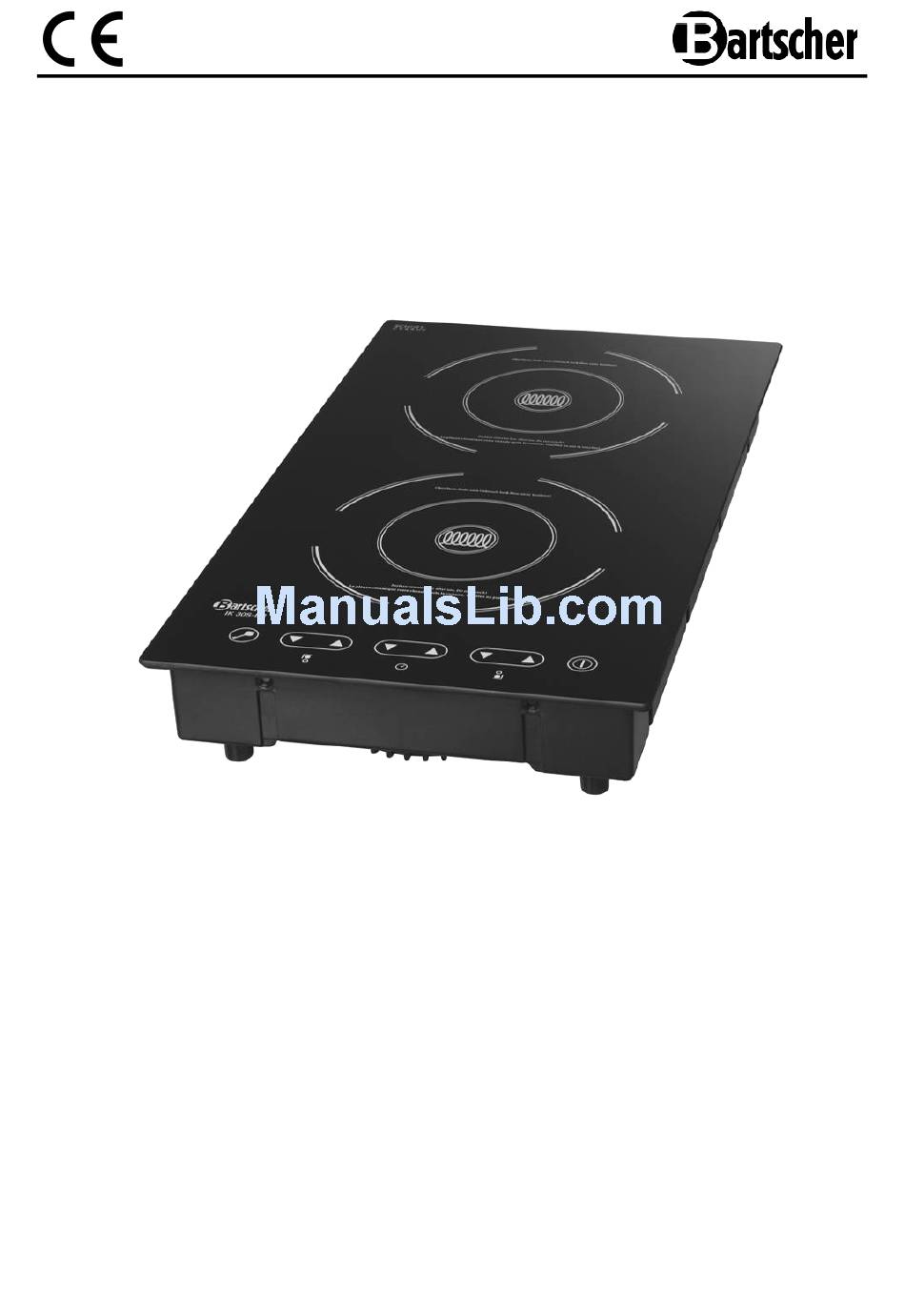

  • Page 1 IK 30S-EB 105936S V1/0813...

  • Page 2: Table Of Contents

    6. Cleaning and maintenance ..................33 6.1 Safety advice ....................... 33 6.2 Cleaning ......................34 6.3 Safety instructions for maintenance ..............34 7. Possible Malfunctions .................... 35 8. Waste disposal ......................36 Bartscher GmbH Franz-Kleine-Str. 28 D-33154 Salzkotten phone: +49 (0) 5258 971-0 Germany fax:...

  • Page 3: General Information

    1. General information 1.1 Information about the instruction manual This instruction manual contains information about the installation, operation and maintenance of the device and should be consulted as an important source of information and reference guide. Awareness of the safety instructions and instructions for use in this manual will ensure the safe and correct use of the device.

  • Page 4: Liability And Warrantees

    CAUTION! Magnetic fields! Do not remove the unit’s bottom cover. 1.3 Liability and Warrantees All the information and instructions in this manual take into account standard safety regulations, current levels of technical engineering as well as the expertise and experience we have developed over the years. The instruction manual was translated with all due care and attention.

  • Page 5: Declaration Of Conformity

    1.5 Declaration of conformity The device complies with the current standards and directives of the EU. We certify this in the EC declaration of conformity. If required we will be glad to send you the according declaration of conformity. 2.Safety This section provides an overview of all important safety aspects.

  • Page 6: Intended Use

    CAUTION! o The device can be used by children 8 years and up, as well as by people with disabilities and those with limited experience/knowledge as long as they are under supervision or have been instructed on proper use of the device and its possible dangers.

  • Page 7: Transport, Packaging And Storage

    3. Transport, packaging and storage 3.1 Delivery check Please check the delivery upon completeness and transport damage immediately after receipt. In case of visible damage do not accept or accept the delivery with reservation only. Note the extent of damage on the carrier’s bill of delivery. Trigger off the complaint. Hidden damages should be reclaimed immediately after notice, as claims for damages can only be asserted within the effective period for complaints.

  • Page 8: Technical Data

    4. Technical data 4.1 Technical specification Name IK 30S-EB Induction Cooker 105936S Code-no.: Construction: Hob: Schott Ceran, Body: plastic Connection values: 3000 W / 230 V 50 Hz Total power: 3000 W with both plates operating Front plate: Rear plate:...

  • Page 9: Control Panel And Functions

    4.3 Control panel and functions Buttons and displays ⑩ ⑨ ⑧ ⑮ ⑪ ⑭ ⑬ ⑫ ⑧ ⑫ Digital display for rear plate Front plate adjustment buttons ⑨ ⑬ Digital clock Time setting buttons ⑩ ⑭ Digital display for front plate Rear plate adjustment buttons ⑪...

  • Page 10: Installation And Operation

    Overheating protection Device has an inbuilt overheating protection. If the critical temperature is reached the device will switch itself off due to safety reasons. Note: Never put empty cooking pots and pans on the cooking plates. Heating an empty pot or pan will cause overheating protection to activate, an acoustic signal will be emitted and the device will switch off.

  • Page 11: Safety Instructions

    5.2 Safety instructions WARNING! Risk of electric shock! The device must only be connected to a properly installed single socket with protective contact. Never remove the power cable by pulling the cable itself; always grab the plug housing. • Never allow the power cable to come into contact with heat sources or sharp edges. The power cable should not hang over the side of the working surface.

  • Page 12: Suitable And Unsuitable Cookware

    • Remember that items such as rings, watches, etc. may become hot if they are near the cooking surface. • Cooking surface is made of a heat resistant glass. If any crack or damage is present (even a small one), disconnect the device immediately from the mains in order to prevent possible electric shock.

  • Page 13: Installation And Connection

    2.7 litres ● Ø 18 cm ● height 11.0 cm 5.1 litres ● Ø 24 cm ● height 11.5 cm 6.1 litres ● Ø 20 cm ● height 20.0 cm Bartscher order no. A130442 Unsuitable cookware o vessels with round bottom;...

  • Page 14: Operation

    • Do not place the induction cooker next to devices or objects, which react sensitively to magnetic fields (e.g. radios, TVs, etc.). WARNING! Hazard via electrical current! The device can cause injuries due to improper installation! Before installation the local power grid specification should be compared with that of the device (see type label).Connect the device only in case of compliance! Take note of the safety advice! •...
  • Page 15 Power level adjustment • With button set the desired power level 1 - 8 for a chosen cooking plate (or both). Set power level will be shown on an appropriate digital display. • Power level is adjusted separately for each of the cooking plates by suitable sets of buttons.

  • Page 16: Cleaning And Maintenance

    NOTE! During operation you may always change the set time with button. Due to device's memory storage, the power level set previously will remain unchanged. • You can adjust settings at any time. The device will always use recently set values. NOTE! If, during operation, there are no changes for 2 hours, the device will turn off automatically.

  • Page 17: Cleaning

    6.2 Cleaning o Device should be cleaned after cooking. o Cooking surface, control panel and body should be cleaned with a soft, moist cloth and a mild, non-scratching cleaning fluid. o Always use a soft cloth only. Never use any coarse cleaning agents that might damage the surface.

  • Page 18: Possible Malfunctions

    7. Possible Malfunctions Error code Cause Solution • No cooking pot present on • Do not turn the device without the cooking surface or the cooking pots present. Only use pot is not suitable for cooking pots and pans suitable induction cooker.

  • Page 19: Waste Disposal

    NOTE! For the disposal of the device please consider and act according to the national and local rules and regulations. Bartscher GmbH Franz-Kleine-Str. 28 D-33154 Salzkotten phone: +49 (0) 5258 971-0 Germany fax:...
  • Page 20 Einbauanleitung D/A/CH Induktionskocher Assembly manual IK 30S-EB GB/UK Induction cooker Instructions d’installation F/B/CH Réchaud à induction Istruzioni per il montaggio I/CH Сucina ad induzione Instrucciones de montaje Placa inducción Manual de montagem 105936S Placa de indução Montagehandleiding NL/B Inductiekookplaat Monteringsvejledning Induktionskogeapparat Инструкция...
  • Page 21 GB/UK Technical Data Name Induction Cooker IK 30S-EB 105936S Code-no.: Construction: Hob: Schott Ceran, Body: plastic Dimensions: width 290 x depth 510 x height 83 mm Weight: 4.5 kg Further technical modifications are possible! Assembly Device is meant to be installed in a kitchen counter top. During the assembly the following advice should be taken into consideration: 1.
  • Page 22 (alternatively) 7. In order to make the induction cooker more rigid when installed in the counter top and to make it water resistant, the cooker should be protected with a suitable gasket. Bartscher GmbH Franz-Kleine-Str. 28 D-33154 Salzkotten phone: +49 (0) 5258 971-0...
