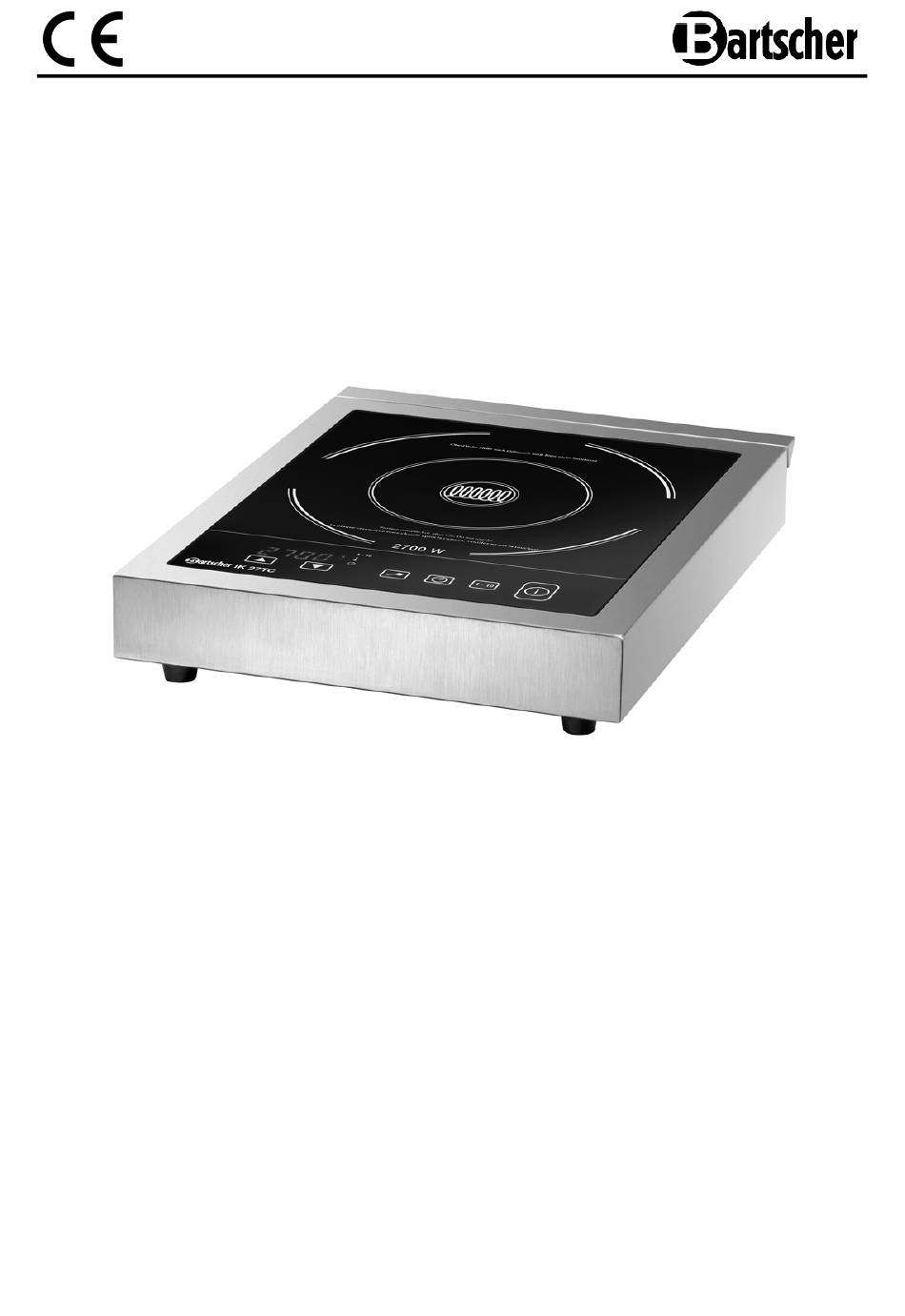

- Page 1 IK 27TC / 105927 Original-Gebrauchsanleitung V1/0916...
-
Page 2: Table Of Contents
6.1 Functionality of induction cookers ................ 34 6.2 Suitable and unsuitable cookware ................ 34 6.3 Operation ......................36 7. Cleaning ........................38 8. Possible Malfunctions .................... 39 9. Waste disposal ......................40 Bartscher GmbH Franz-Kleine-Str. 28 33154 Salzkotten phone: +49 (0) 5258 971-0 Germany fax:... -
Page 3: Safety
Read these instructions before using and keep them available at all times! This instruction manual contains information about the installation, operation and maintenance of the device and should be consulted as an important source of information and reference guide. Awareness of the safety instructions and instructions for use in this manual will ensure the safe and correct use of the device. -
Page 4: Safety Instructions
CAUTION! This symbol highlights dangerous situations which could lead to light injuries, or damage, malfunction, and/or destruction of the device. CAUTION! Magnetic field! This symbol informs that the magnetic fields occurring during the device operation may cause interference. NOTE! This symbol highlights recommendations and information aimed for effective and trouble-free device operation. - Page 5 • Prevent access of children to the package materials like plastic bags and foamed polystyrene elements. Suffocation hazard! • Only a qualified technician and using original spare parts and accessories should carry out repairs and maintenance of the device. Do not attempt to repair the device yourself. •...
- Page 6 • Check the power cord regularly for damage. Do not use the appliance if the power cord is damaged. If this cable is damaged, it must be replaced by customer service or a qualified electrician in order to avoid dangers. •...
- Page 7 • Do not place any metal kitchen utensils, pot covers, frying pans, knives, or other metal objects on the cooking field. After the device activation they may become very hot. • Keep in mind that the objects like rings, watches, etc. may become hot in the vicinity of the cooking surface.
- Page 8 • Do not heat closed containers, e.g. canned food, on the induction cooking field. The containers or cans may explode (crack) due to overpressure. Open the can and place it in the pot with some water heated on the cooking field. CAUTION! Electromagnetic field hazard! To avoid the hazard results please follow the instructions below.
-
Page 9: Intended Use
• The cooking surface is made from glass resistant to high temperature. In case of damages or small cracks disconnect the device from the power supply immediately and contact the service. 1.3 Intended use Safe operation is only guaranteed when using the device for its intended purpose. Any technical interventions, as well as assembly and maintenance are to be made by a qualified customer service only. -
Page 10: General Information
2. General information 2.1 Liability and Warrantees All the information and instructions in this manual take into account standard safety regulations, current levels of technical engineering as well as the expertise and experience we have developed over the years. The instruction manual was translated with all due care and attention. However, we do not accept liability for any translation errors. -
Page 11: Transport, Packaging And Storage
3. Transport, packaging and storage 3.1 Delivery check Please check the delivery upon completeness and transport damage immediately after receipt. In case of visible damage do not accept or accept the delivery with reservation only. Note the extent of damage on the carrier’s bill of delivery. Trigger off the complaint. Hidden damages should be reclaimed immediately after notice, as claims for damages can only be asserted within the effective period for complaints. -
Page 12: Technical Data

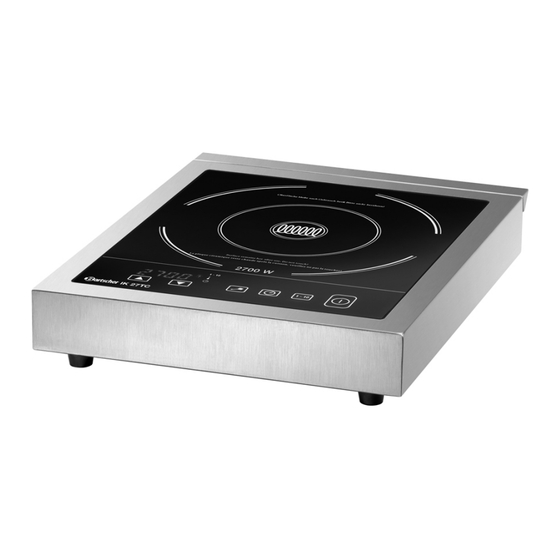

4. Technical data 4.1 Technical data Name Induction cooker IK 27TC 105927 Code-No.: Material: Stainless steel body, cooking surface: glass 1 hob, pot size: 120 x 260 mm Touch control panel with digital display Timer: Design: Pan detector Lock key (child safety lock) -
Page 13: Overview Of Parts
4.2 Overview of parts Body Touch control panel Feet (4) 4.3 Touch-Control operation field ON/STANDBY LED indicator Digital display LED indicators: power, ON/OFF button temperature, time Button for increasing power, Lock key (child safety lock) temperature or time Button for decreasing power, Time setting button: temperature or time Function button: power or... -
Page 14: Installation
5. Installation 5.1 Positioning • Before the operation unpack the device and remove all package material. CAUTION! Never remove the rating plate and any warning signs from the device. • Place the device on top of an even, stable, dry, and water-resistant surface which supports the weight of the device and is not heat sensitive. -
Page 15: Operation
6. Operation 6.1 Functionality of induction cookers With induction cooker, an electric voltage is applied on a conductor spool beneath the glass. This creates magnetic fields, which directly heat up the bottom of the cookware through a physical effect. This means saving time and energy, because contrary to common hotplates, the cookware is heated up, not the heating element and the glass. - Page 16 12 cm and 26 cm for better > > > > 12 cm results. e.g. Bartscher Induction cookware, 9-piece cooking pot set chromium-nickel steel ● edge suitable for pouring ● cold handles 4 pots with lid 1 pan 2.0 litres ●...
-
Page 17: Operation
6.3 Operation • Before the device operation clean it according to the instructions in section 7 “Cleaning” CAUTION! Never place an empty cookware on the hob. Warming up an empty pot or frying pan activates the overheaeting protection system; an audio signal will sound (3 times) and the device turns off. „E2“... - Page 18 • The buttnons can be used to change the temperature within the range from 60 ° C to 240 ° C. The following temperature settings are available: 60, 80, 100, 120, 140, 160, 180, 200, 220 and 240 °C. Timer function •...
-
Page 19: Cleaning
NOTE! To simmer or cook food (max temperature of 170 ° C) select one of the power levels. To bake or fry in deep fat (max temperature of 240 ° C) select one of the temperature ranges (60 ° C - 240 ° C). Lock button (child safety lock) •... -
Page 20: Possible Malfunctions
o Clean the device regularly. o Wipe the cooking surface and the body with a soft, damp cloth with a mild, non- abrasive cleaner. o Ventilation slots at the rear side of the device must be always free of dust and dirt, or cleaned if necessary (e.g. -
Page 21: Waste Disposal
CAUTION! For the disposal of the device please consider and act according to the national and local rules and regulations. Bartscher GmbH Franz-Kleine-Str. 28 33154 Salzkotten phone: +49 (0) 5258 971-0 Germany...
