TECHNICAL FEATURES AND DIMENSIONS

1. 1

INTRODUCTION

The Sime "FORMAT C" are wall mounted, fan assisted bal-
anced flue combination boilers.
The appliance is supplied suitable for use with natural gas,
LPG and provide central heating and instantaneous produc-
tion of D.H.W. Heat output is varied according to demand by
the modulating gas control on both D.H.W. and C.H.
The appliance is supplied with a telescopic air/flue duct suit-
able for wall thicknesses up to 635 mm (25 in) although
extension duct kits are available (see details in section 3.4).
The combined flue and air duct can exit the boiler from either
side or from the rear of the appliance. A vertical extension and
1.2

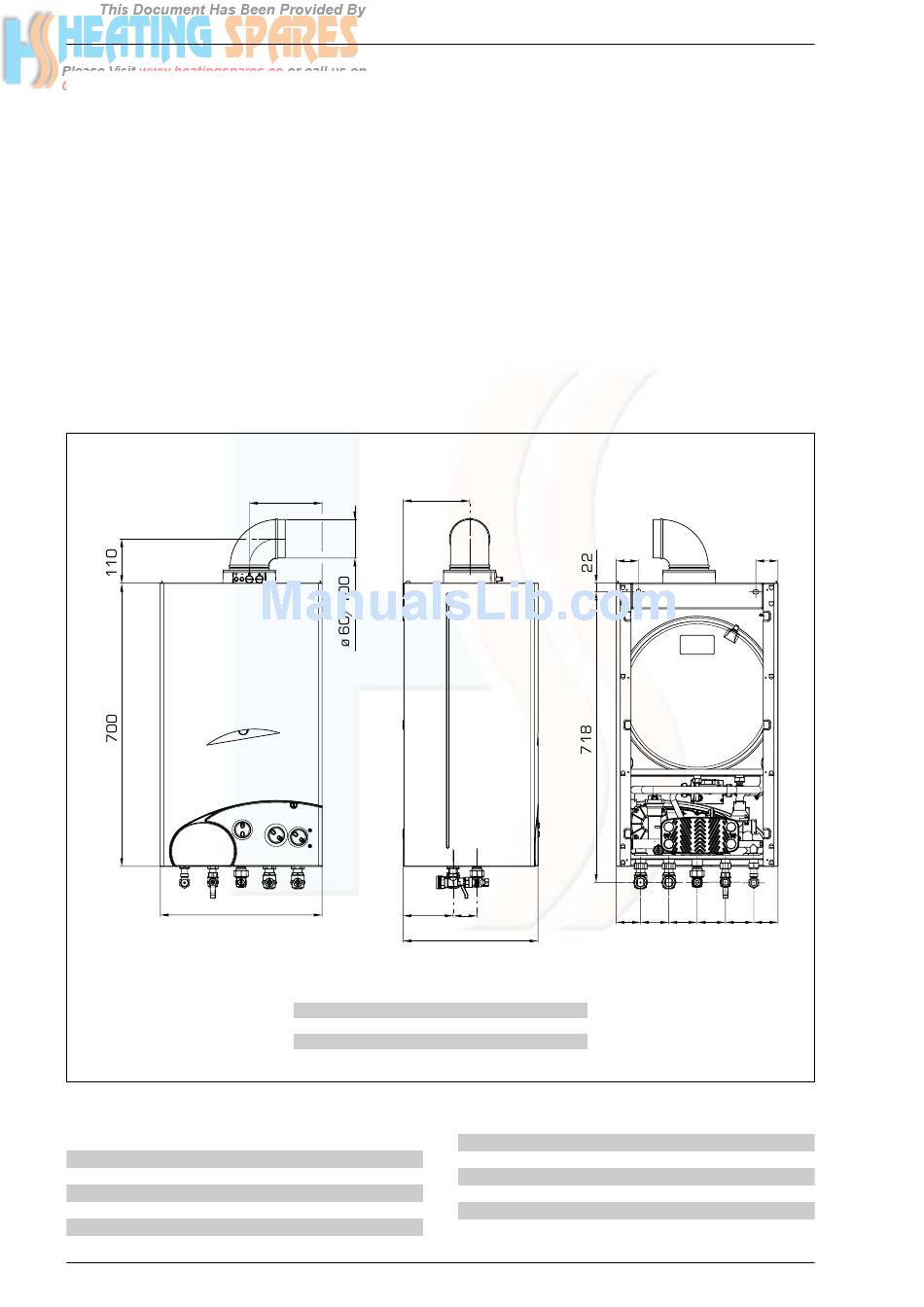

DIMENSIONAL DETAILS

L
TABLE 1 - Connections
A C.H. return
B C.H. flow
C Gas connection
D Cold water
E Hot water
Supplied By www.heating spares.co Tel. 0161 620 6677
K
125 60
80 C
L mm 400
K mm 180
22 mm Compression
22 mm Compression
1/2 in Bsp
15 mm Compression
15 mm Compression
additional flue elbow may be fitted. If required, the boilers can
also be fitted with a separate flues kit (see section 3 for details).
The boiler is designed for use with sealed primary water sys-
tems and is supplied fully assembled and equipped with com-
plete valve packs.
The boiler can be used with a 24V room thermostat (class II
according to EN 60730. 1 ). This booklet provides instructions
for the boiler models: "FORMAT 80 C" - "FORMAT 100 C" -
"FORMAT 110 C" with following features:
– electronic ignition,
– fully modulating,
– built in mechanical time clock.
165
335
100 C 110 C
450 450
205 205
TABLE 2 - Minimum clearances
ABOVE THE APPLIANCE CASING
AT THE R.H.S.
AT THE L.H.S.
BELOW THE APPLIANCE CASING
IN FRONT OF THE APPLIANCE
55 55
A B C D E
= 70 70 70 70 =
Fig. 1
For ventilation For servicing
200 mm 300 mm
15 mm 15 mm
15 mm 15 mm
200 mm 200 mm
350 mm 500 mm
