3.

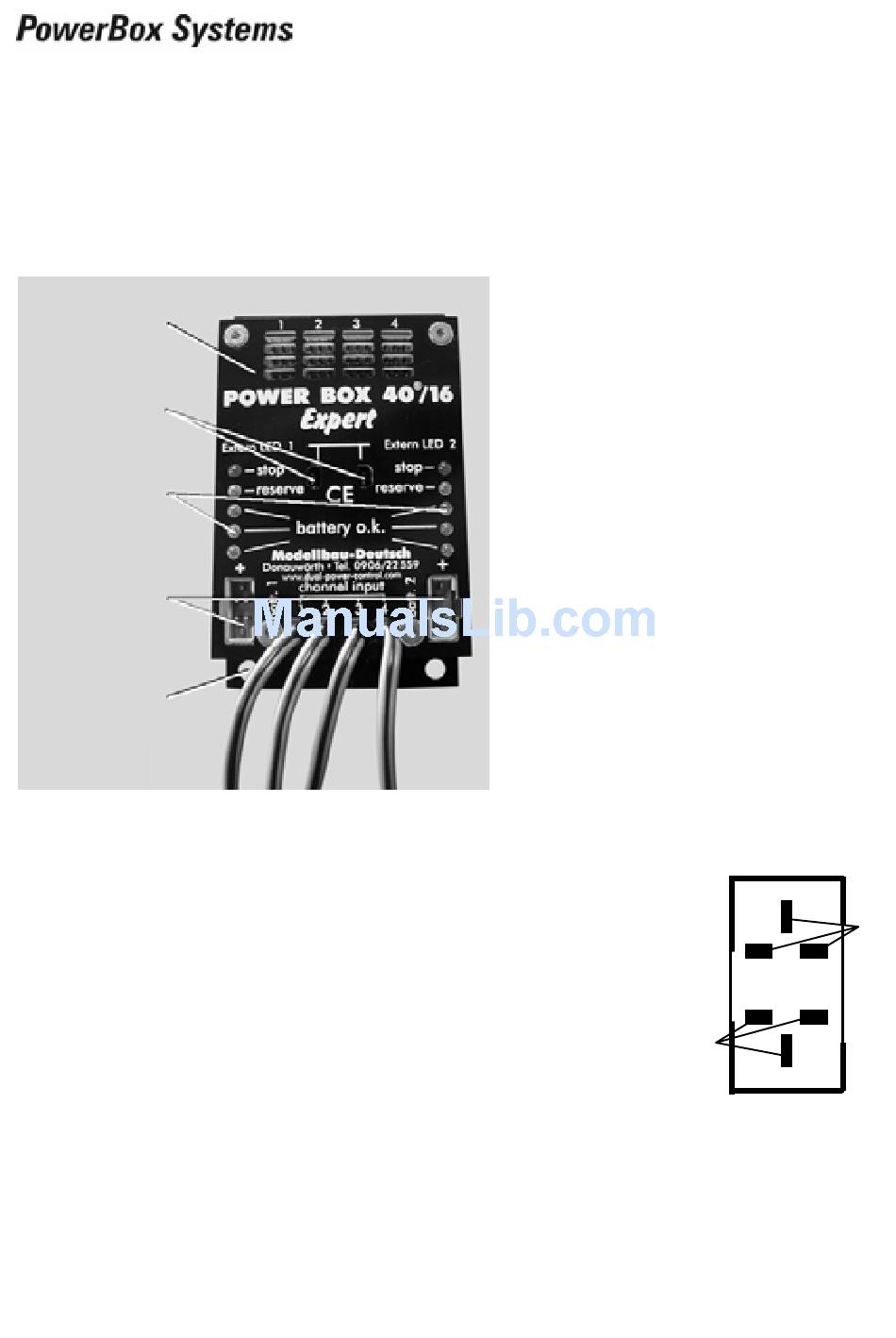

Connections and operation controls
The power supply of the receiver is provided by four servo-cables. Please connect
the servos to the channels of your receiver to which the servo-pulses should be
amplified due to extra number of servos connected to the Power-Box line-out.
4 plugs each
channel
Extern LED
plugs
Voltage control
battery
1 and 2
High-current-
plugs
Clamping plate
due to our use of high quality integrated amplifiers.
The two battery-packs are connected via two high-current-
plugs. The POWER BOX 40/16 would of course work with one
battery. But you would not have the extra security of using a
double-power-supply. We are able to deliver matching battery-
packs with correct high-current-plugs already fitted. However, if
you want to make the power supply cable yourself, then you
must use two pole-proof high-current-plugs for the connection
to the battery-pack. The plugs must not be connected to the
wrong pole! Also please ensure that the cables are soldered
correctly. Make sure that you take notice of the caption on the
plug and also of this sketch in order to avoid any wrong
connections. This would of course destroy your dual-power-
control. Ensure that you have a good joint space and insulate the "+" and "-"
connections against each other as well as against their surrounding area and make
sure that no short circuit can happen at any time.
POWER BOX 40/16
The Channel number at the servo
line-in of the POWER BOX 40/16
is identical to the number of the Rx
output block.
connect connection No:1 with line-
out No:2 of say a Graupner/JR
receiver
then you can connect up to four
aileron-servos directly. Or up to
eight servos via special servo V-
cables in the case of an extra
large model-aircraft !
Due to our special circuitry you will
not
be
attenuations,
interferences of the servo-pulses
should you wish to use cables of
up to two meters in length this is
- 5 -
Therefore if you
for
example (aileron),
troubled
by
distortions
-
Connection
diagram
Top view
any
or
+
