- Page 1 Instruction Manual VoltAgE rEgulAtor...

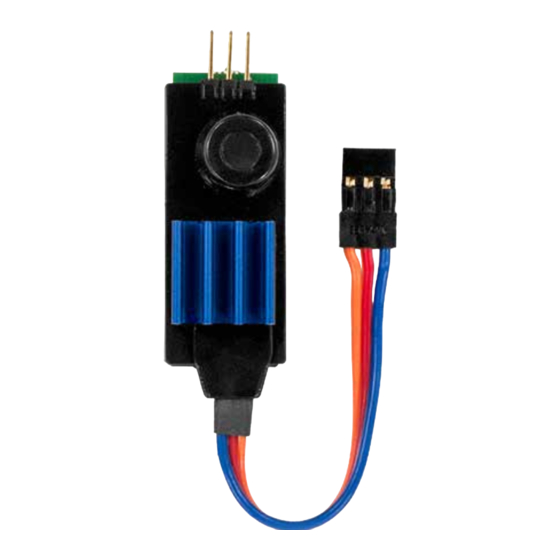

- Page 2 Dear customer, the voltage regulator is designed to supply a defined, sta- bilised voltage to your receivers and servos. lt is a com- pact, lightweight device with an excellent performance, and has been developed and manufactured in-house. This unit enables you to use modern LiPo, LiIon, NiMh or LiFe batteries as the power supply in your models.
- Page 3 (7.4 V), but where one or two servos are not approved for use at the higher voltage. In this case the non-HV ser- vos can be plugged into the voltage regulator and used in the normal way. These are often tail rotor servos or electronic components such as lighting units, valves etc.,...
- Page 4 LiPo batteries with our PowerBox 12 switch backer (without integral voltage regulation) if you connect one voltage regulator to the system for each battery. The regulator can supply 2 to 3 Ampere - according to bat- tery type and cooling efficiency - which is adequate for mo- dels fitted with 6-8 standard servos or 4-5 digital servos.
- Page 5 EMV tested: EN 55014 - 1 and EN 55014 - 2 CE tested: 2004/108/EG, certificated dated 1O.03.2009 Approved only for use with a two-cell LiPo/LiIon or LiFe battery or a five-cell NiMh battery. The device must not be used in conjunction with a mains PSU! contact plugs for connecting the power source: centre contact is positive, do not plug out of phase! High-capacity...
-
Page 6: Guarantee Conditions
They are guaranteed “Made in Germany”! That is why we are able to grant a 36 month guarantee on our voltage regulator from the initial date of purchase. The guarantee covers proven material faults, which will be corrected by us at no charge to you. As a precautionary... -
Page 7: Liability Exclusion
LIABILITY EXCLUSION We are not in a position to ensure that you observe our in- structions regarding installation of the voltage regulator, fulfil the recommended conditions when using the unit, or maintain the entire radio control system competently. For this reason we deny liability for loss, damage or costs which arise due to the use or operation of the voltage re- gulator, or which are connected with such use in any way. - Page 8 02/2018 PowerBox-Systems GmbH certificated according to DIN EN ISO 9001 Ludwig-Auer-Straße 5 D-86609 Donauwoerth Germany +49-906-99 99 9-200 +49-906-99 99 9-209 www.powerbox-systems.com...
