Summary of Contents for PowerBox Systems SensorSwitch 6500

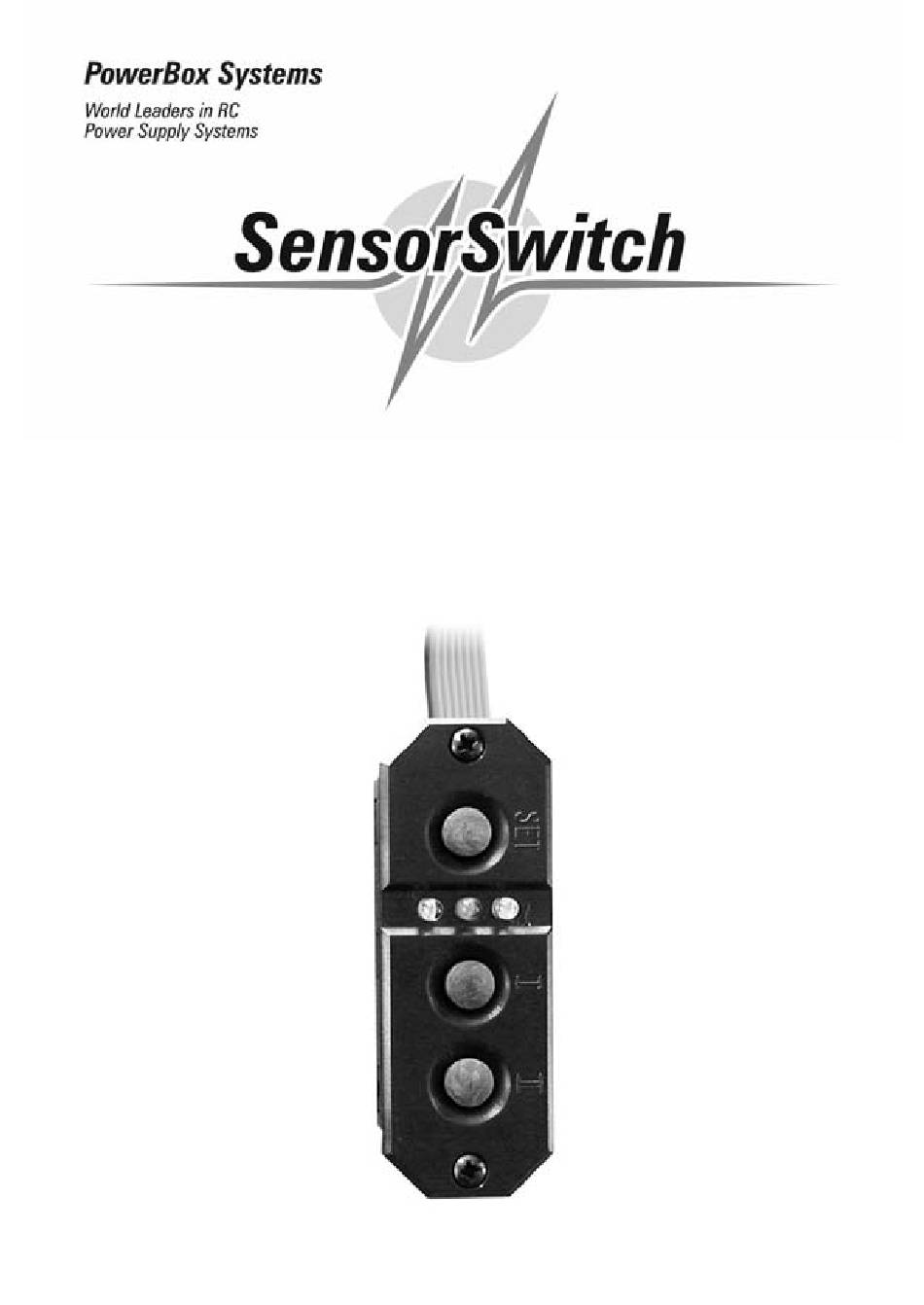

- Page 1 Operating instructions The SensorSwitch for the PowerBox “Competition” and “Champion”...
- Page 2 SensorSwitch Dear customer, The purpose of the SensorSwitch is to provide external control of the integral electronic switches in our PowerBox “Competition” and “Champion”. The SensorSwitch does not switch the current for the servos and receiver. The actual switching process is carried out by the two completely independent electronic switches in the backer.

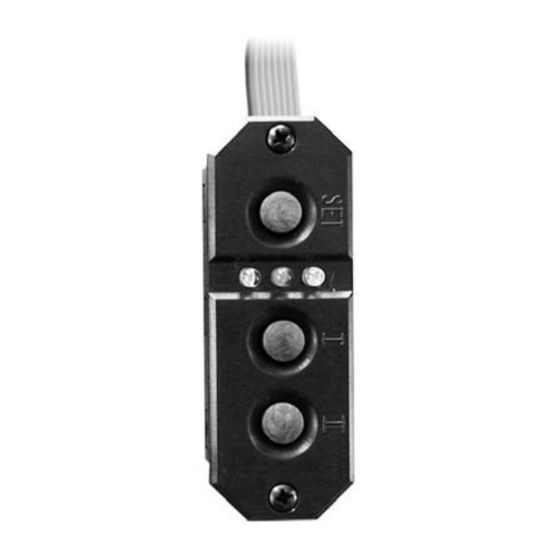

- Page 3 SensorSwitch ribbon-cable for the connection of the PowerBox fixing bolt red LED for signaling SET key for the activation status activation 2 green LEDs for Signaling switching key batterie 1 switching status switching key batterie 2 the simultaneous pressing of the switching keys serves for the selection of the minimum voltage memory...
- Page 4 Accessories: 2 retaining screws Installation template Order-No.: 6500 SensorSwitch black 6505 SensorSwitch grey Donauwörth, July 2003 Your Modellbau-Deutsch Team PowerBox Systems, Germany Modellbau-Deutsch Hindenburgstraße 33 86609 Donauwörth Tel: +49-0906-22559 Fax: +49-0906-22459 E-Mail: info@powerbox-systems.com www.powerbox-systems.com...
