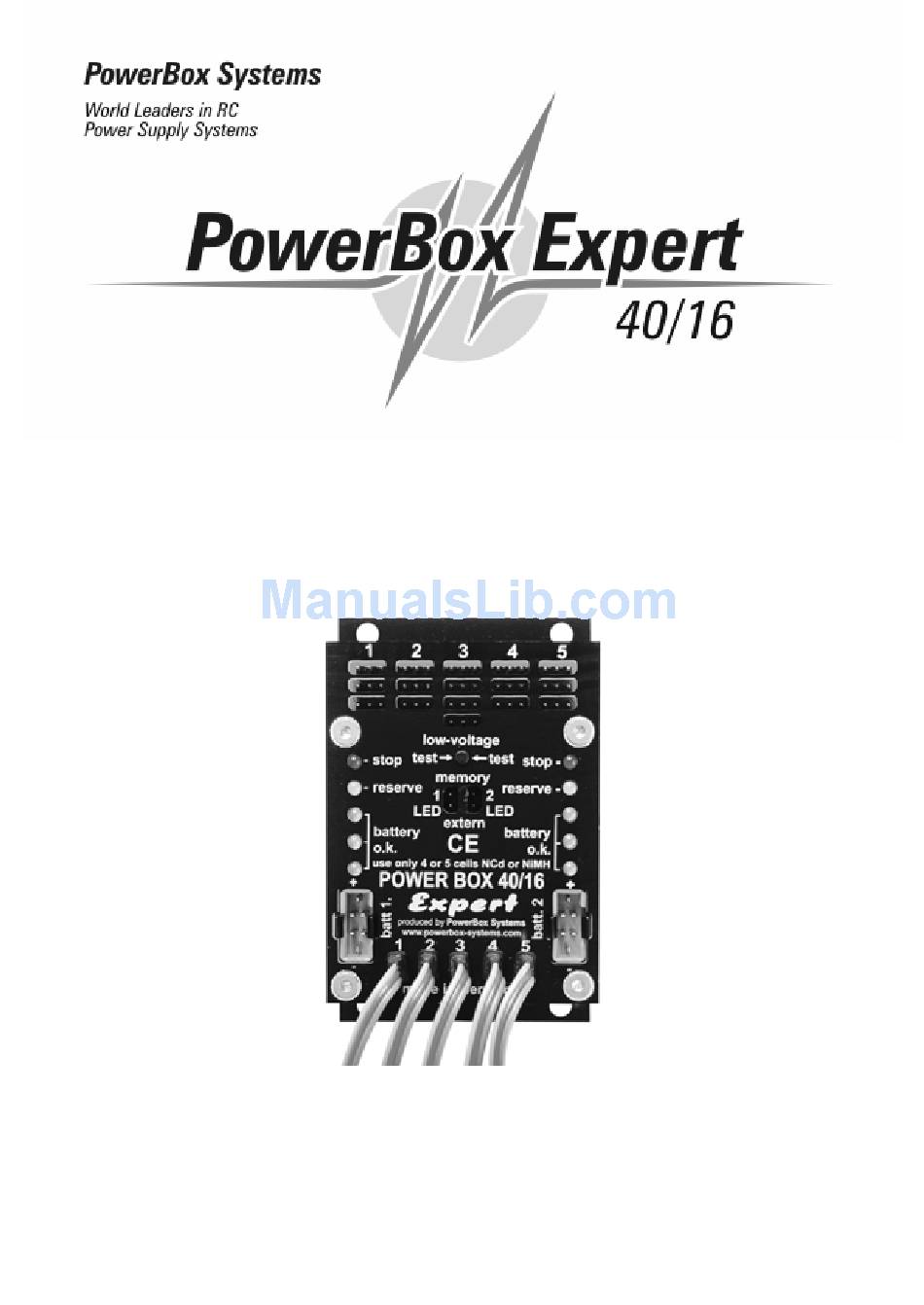

- Page 1 Operating Instruction Featuring four servo-pulse amplifiers plus two independent voltage-controllers...
-
Page 2: Table Of Contents

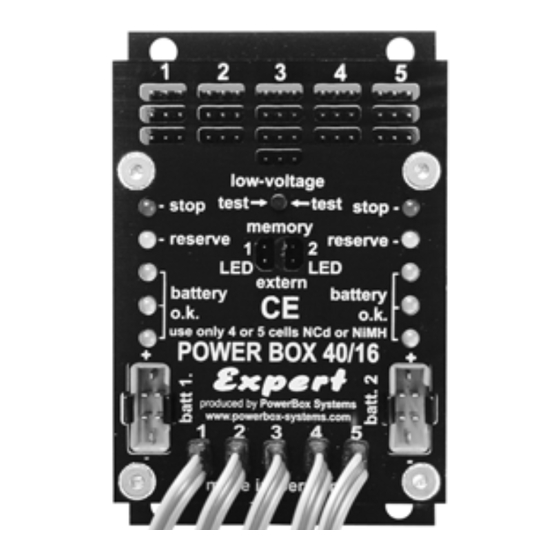

POWER BOX 40/16 Dear Customer, We are very pleased that you have decided to purchase our POWER BOX 40/16. With this newly developed product you now have a powerful Dual-Power-control system for your valuable model aeroplane. This will allow you to have not only the extra safety advantage of coupling two on board flight battery-packs. -
Page 3: Power Box
This new type of diode allows only minimal voltage drops. Therefore it is absolutely safe to use the Dual-Power-Control with battery packs made up of four cells only. The POWER BOX 40/16 operates with two battery-packs of the same size and voltage; this then means that both battery-packs get discharged steadily. While operating it’s always the battery with the highest momentary voltage, which will be... - Page 4 POWER BOX 40/16 You can also use the voltage control of our POWER BOX 40/16 in order to check for any defect cables, plugs and switches etc. If one of these components is damaged, a higher voltage drop is displayed by the LEDs. It is important that you repair the damage indicated before getting your model airplane airborne again.
-
Page 5: Connections And Operation Controls
The two battery-packs are connected via two high-current- plugs. The POWER BOX 40/16 would of course work with one battery. But you would not have the extra security of using a double-power-supply. -
Page 6: Information On Usage And Security
The clamping-plate has four holes which will help you when installing the switch. Install the POWER BOX 40/16 in a position which will allow you to see and check the switch from outside of the plane. -
Page 7: Warranty Information
POWER BOX 40/16 Warranty information Each Power Box 40/16 has had to pass through several tests during its production phase. We put special emphasis on producing a very high quality-product. This fact enables us to give you a guarantee on our Dual-power–Control of 24 months from the day of your purchase. - Page 8 High Current switches you will of course increase the safety factor when flying for your model aeroplane. If it is not possible to install your POWER BOX 40/16 in a prominent position where you can see the LED’s easily. Then we are able to offer you the possibility to connect two extra bright LED’s for each of the battery packs.
