- Page 1 Instruction Manual LightBox LightBox LightBox...
-
Page 2: Product Description

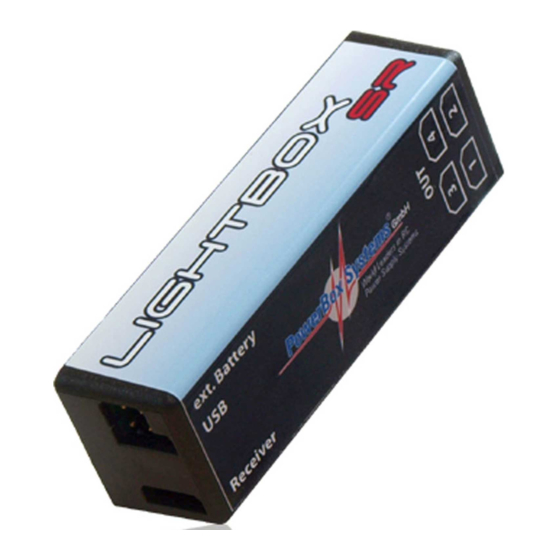

Only one channel is required to switch the various lighting circuits on and off independently. As you would expect, the LightBox SR is pre-configured in such a way that it can be used immediately, without any adjustment. With a single conventional receiver out- put it is possible to switch landing lights, two flashers and one beacon on and off. - Page 3 FEATURES Four outputs, separately user-variable Landing light, flasher, beacon and afterburner functions Can be controlled via PWM or serial signal Following serial systems are supported: PowerBUS, Futaba S-BUS, Multiplex M-Link, Jeti EX and UDI, Graupner SUMD, Spektrum SRXL, JR X-BUS User-variable switching thresholds Fully configurable lighting functions Simple PC interface...
- Page 4 1. CONNECTIONS Input for optional external battery Socket for the USB Interface Adapter Outputs for the LEDs Input for PWM or serial signal Polarity of the LED outputs: PowerBox-Systems − World Leaders in RC Power Supply Systems...
-
Page 5: First Steps
LEDs in series and use them with a higher battery voltage in order to minimise the current. If you wish to operate the LightBox SR without entering any settings at the PC, the default settings for the various functions are as follows... - Page 6 The program is free, and can be used to update the LightBox SR as well as ad- just its settings. Instructions for installing the program can also be found in the Download area. Once you have installed the program, connect the USB Interface Adapter (Order No.
- Page 7 Select LightBox at the top of the window, and click on Continue. You will now see the following screen display: www.powerbox-systems.com...
- Page 8 Explanation of functions: Solid Light: Switchable continuous light, typically used for landing lights or cockpit illumination Flash Light: Flashing light, typically used for navigation lights or stroboscopic ef- fects Beacon Light: Rotating light function, simulating a rotary beacon Afterburner: Simulated afterburner Various settings are available, depending on the function you select: ON/OFF Setpoint: the switching point is set here.
-
Page 9: Low-Voltage Cut-Off
4. FUSED OUTPUTS All four LED outputs are fitted with integral fuses. If an output is overloaded, or a short-circuit occurs in the wiring system, that output is switched off. This ensures that the receiving system is not affected if an error occurs, even when the lighting system draws its power through the receiver. -
Page 10: Technical Data
Cut Off Voltage is set at a point about 0.3 V – 0.4 V below the stabilised voltage. For 5.9 V this would be a Cut Off Voltage of 5.6 V. How- ever, a long power cable to the LightBox SR may necessitate a lower cut-off threshold. -
Page 11: Specification
7. SPECIFICATION 8. SET CONTENTS - LightBox SR - Patch-lead 24 cm - 4 x LED connecting lead - Self-adhesive pad - Operation instruction in German and English 9. SERVICE We make every effort to provide a good service to our customers, and have now established a Support Forum which covers all queries relating to our products. -
Page 12: Guarantee Conditions
Please use the Support Forum before you contact us by telephone. You will find the forum at the following address: www.forum.powerbox-systems.com 10. GUARANTEE CONDITIONS At PowerBox-Systems we insist on the highest possible quality standards in the development and manufacture of our products. They are guaranteed “Made in Ger- many”! That is why we are able to grant a 24 month guarantee on our from the initial date of purchase. -
Page 13: Liability Exclusion
For this reason we deny liability for loss, damage or costs which arise due to the use or operation of the LightBox SR , or which are connected with such use in any way. Regardless of the legal arguments employed, our obligation to pay damages is limited to the invoice total of our products which were involved in the event, inso- far as this is deemed legally permissible. - Page 14 09/2020 PowerBox-Systems GmbH certificated according to DIN EN ISO 9001 Ludwig-Auer-Straße 5 D-86609 Donauwoerth Germany +49-906-99 99 9-200 +49-906-99 99 9-209 www.powerbox-systems.com...
