After the Gcode is generated, the temperature of the bottom plate needs to be changed if you print

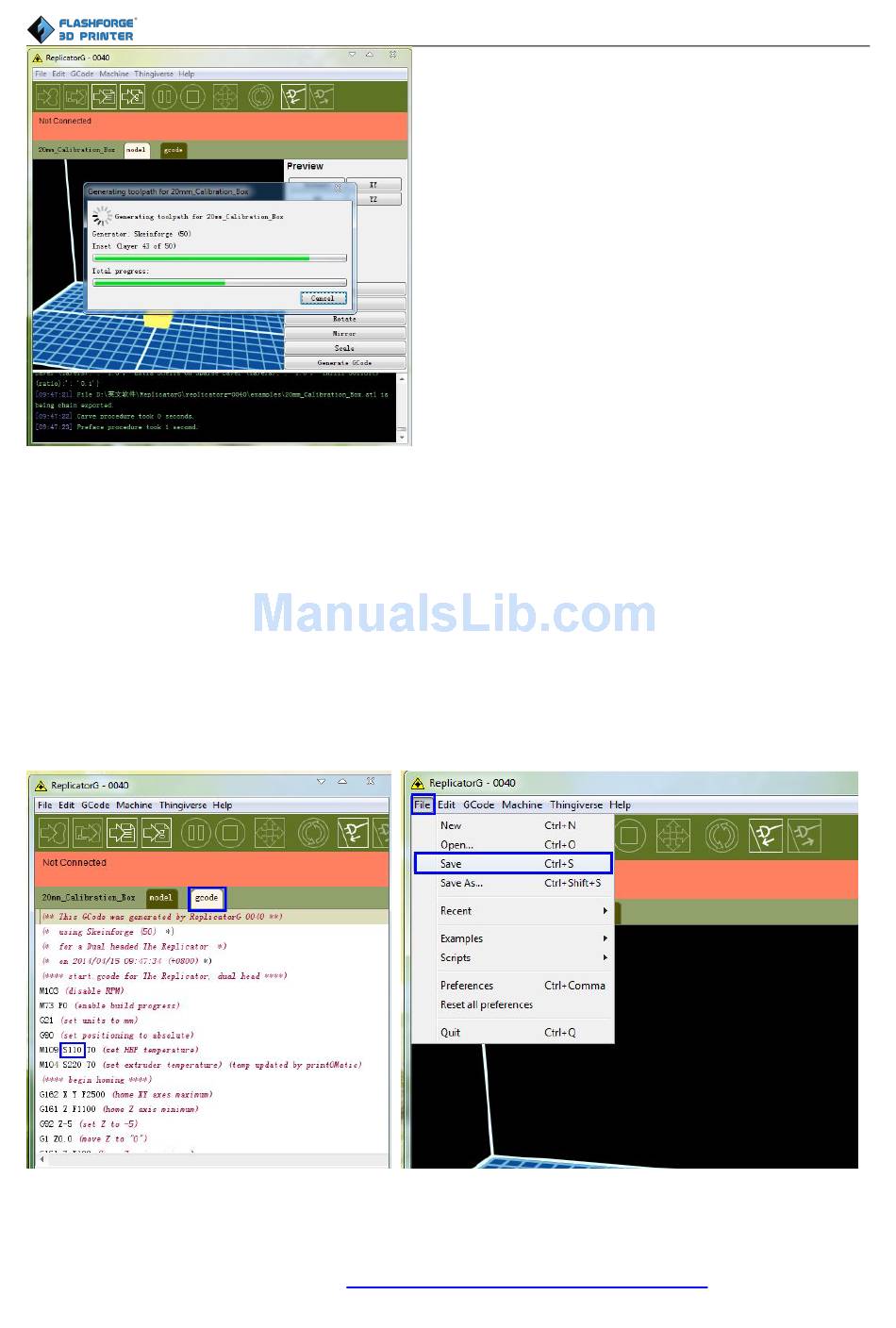

PLA filament. See below for the required modification. First, select Gcode as shown highlighted in
the illustration below and change M109
S110
to M109
S50
to set the HBP temperature at 50°C.
Then click
File
>
Save
to save this modification. If you print ABS filament, then no HBP
temperature modification is needed.
If you have connected Replicator G Creator Pro printer, click the left most button on the green bar
near the top of the screen. The Gcode has now been sent to the printer and the object will start
printing shortly. If not, please refer to
USB Connection & Temperature Setting
to connect.
32
