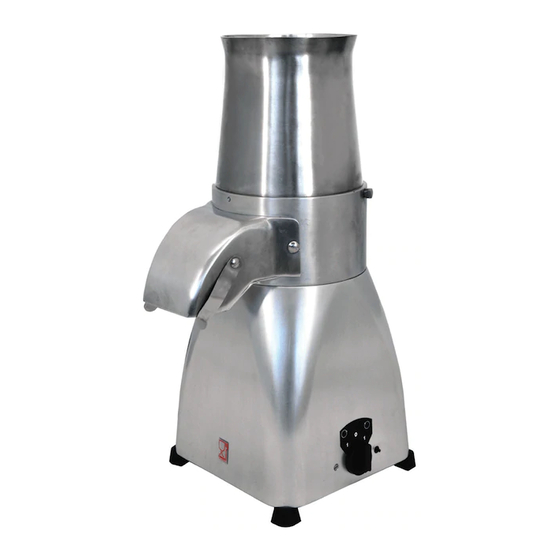

- Page 1 Bread Graters Models GR-IT-0080, 0080-S Items 11411, 23865 Instruction Manual Revised - 07/14/2016 Toll Free: 1-800-465-0234 Fax: 905-607-0234 Email: service@omcan.com www.omcan.com...
-
Page 2: Table Of Contents
Table of Contents Model GR-IT-0080 / Model GR-IT-0080-S Section Page General Information --------------------------------------------------------------------------- 3 - 4 Safety and Warranty --------------------------------------------------------------------------- 4 - 5 Technical Specifications -------------------------------------------------------------------------- 6 Installation --------------------------------------------------------------------------------------- 6 - 7 Operation ----------------------------------------------------------------------------------------- 7 - 8 Maintenance ----------------------------------------------------------------------------------- 8 - 10... -
Page 3: General Information
If the package has suffered rough handling, bumps or damage (visible or concealed), please note it on the bill of lading before accepting the delivery and contact Omcan within 24 hours, so we may initiate a claim with the carrier. A detailed report on the extent of the damage caused to the machine must be filled out within three days, from the delivery date shown in the shipping documents. -
Page 4: Safety And Warranty
Si el paquete ha sufrido un manejo de poco cuidado, golpes o daños (visible o oculto) por favor anote en la factura antes de aceptar la entrega y contacte Omcan dentro de las 24 horas, de modo que podamos iniciar una reclamación con la compañia. - Page 5 1 YEAR PARTS AND LABOUR BENCH WARRANTY Within the warranty period, contact Omcan Inc. At 1-800-465-0234 to schedule a drop off to either an Omcan authorized service depot in the area, or to an Omcan Service warehouse to repair the equipment.
-
Page 6: Technical Specifications
4. Grated bread way out. 5. Spring to hold up the bag. 6. Casting base. 7. Overload switch. Model GR-IT-0080 GR-IT-0080-S Power 1.5 HP / 1.12 kW Electrical 110 V / 60 Hz / 1 Weight 37.4 lbs. / 17 kg. -
Page 7: Installation
Installation Prior to installation, test the electrical service to assure that it agrees with the specifications on the machine data plate. ELECTRICAL WARNING: This machine is provided with this plug, this plug must be connected to a properly grounded outlet. If the receptacle is not the proper grounding type, contact an electrician. Operation IMPORTANT Very easy to operate: once started you only need to put into the filler your dry bread to... -
Page 8: Operation
Operation To restart the machine it is necessary to: 1. Place the machine on its side; the overload switch is on the lower section. 2. Re-position the switch to 0. 3. Disconnect the machine from the main supply. 4. Remove the cause of the blockage. 5. -
Page 9: Maintenance
Maintenance... - Page 10 Maintenance This machine must be thoroughly cleaned and sanitized after installation and before being put into service. ASSEMBLING 1. Reallocate drain between screws. 2. Fasten both fixing screws. 3. Allocate cylindrical filler by tilting it forward. 4. Fasten filler cylindrical locking screws.
-
Page 11: Parts Breakdown
Parts Breakdown Model GR-IT-0080 11411... - Page 12 Parts Breakdown Model GR-IT-0080 11411...
- Page 13 Parts Breakdown Model GR-IT-0080 11411 Item No. Description Position Item No. Description Position Item No. Description Position 36542 M20 Cover Ring for BG80 A5904 16942 Switch for M2 for BG80 I3682 36903 Box Interruttore M20 for BG80 S102685 74399 Base for BG80 B1864 20461 Switch for M20 for BG80...
- Page 14 Parts Breakdown Model GR-IT-0080-S 23865...
- Page 15 Parts Breakdown Model GR-IT-0080-S 23865...
- Page 16 Parts Breakdown Model GR-IT-0080-S 23865 Item No. Description Position Item No. Description Position Item No. Description Position Anello Adattatore Øe 200 Filo Ø4 for Rotor(A3125 P2523)M20-M20N 230/50 74398 A5938 36646 Nut U5588 M6 Stainless Steel for BG80E D0163X 36898 R8065...
-
Page 17: Electrical Schematics
Electrical Schematics Model GR-IT-0080 11411 Model GR-IT-0080-S 23865... -
Page 18: Notes
Notes ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________... -
Page 19: Warranty Registration
Warranty Registration Thank you for purchasing an Omcan product. To register your warranty for this product, complete the information below, tear off the card at the perforation and then send to the address specified below. You can also register online by visiting: Merci d’avoir acheté... - Page 20 Since 1951 Omcan has grown to become a leading distributor of equipment and supplies to the North American food service industry. Our success over these many years can be attributed to our commitment to strengthen and develop new and existing relationships with our valued customers and manufacturers.
