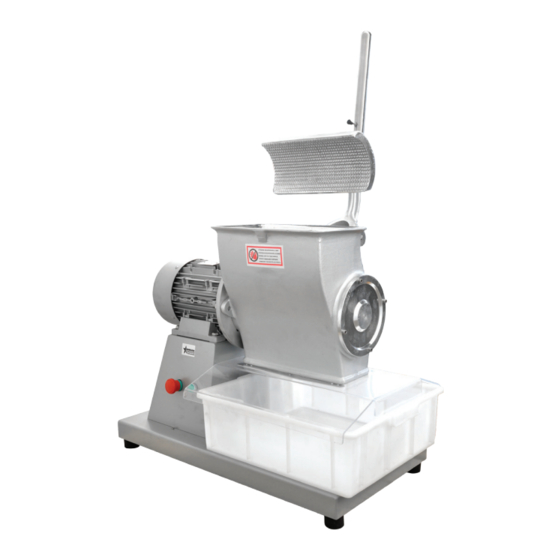

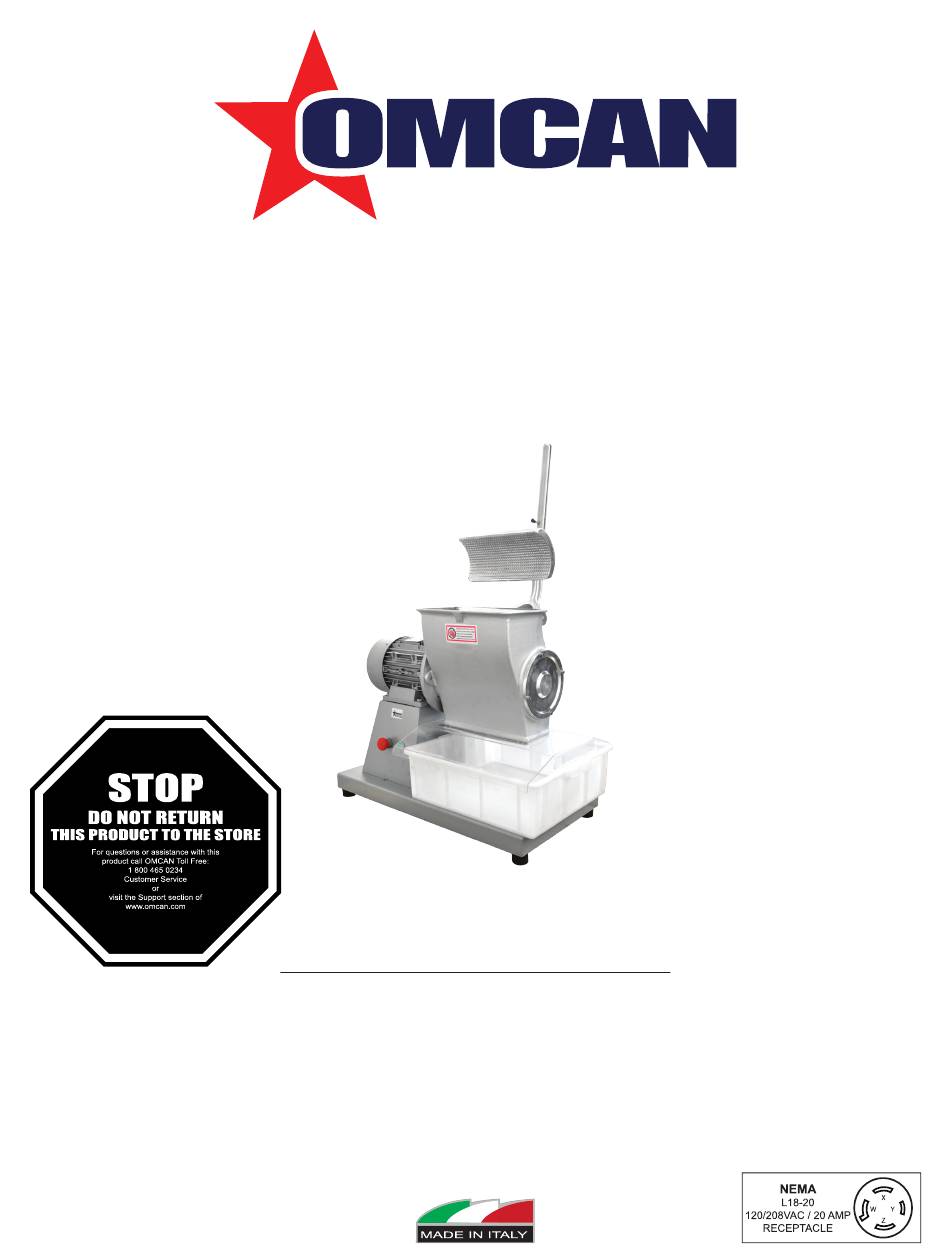

- Page 1 Cheese Grater Model GR-IT-2983-B Item 39498 Instruction Manual Revised - 09/26/2018 Toll Free: 1-800-465-0234 Fax: 905-607-0234 Email: service@omcan.com www.omcan.com...
-
Page 2: Table Of Contents
Table of Contents Model GR-IT-2983-B Section Page General Information --------------------------------------------------------------------------- 3 - 4 Safety and Warranty --------------------------------------------------------------------------- 4 - 6 Technical Specifications -------------------------------------------------------------------------- 6 Installation --------------------------------------------------------------------------------------- 6 - 7 Operation ----------------------------------------------------------------------------------------- 7 - 9 Maintenance ----------------------------------------------------------------------------------------- 9 Troubleshooting ----------------------------------------------------------------------------------- 10... -
Page 3: General Information
If the package has suffered rough handling, bumps or damage (visible or concealed), please note it on the bill of lading before accepting the delivery and contact Omcan within 24 hours, so we may initiate a claim with the carrier. A detailed report on the extent of the damage caused to the machine must be filled out within three days, from the delivery date shown in the shipping documents. -
Page 4: Safety And Warranty
Si el paquete ha sufrido un manejo de poco cuidado, golpes o daños (visible o oculto) por favor anote en la factura antes de aceptar la entrega y contacte Omcan dentro de las 24 horas, de modo que podamos iniciar una reclamación con la compañia. - Page 5 Do not tamper with the safety devices in any way. 1 YEAR PARTS AND LABOUR WARRANTY Within the warranty period, contact Omcan Inc. at 1-800-465-0234 to schedule an Omcan authorized service technician to repair the equipment locally. Unauthorized maintenance will void the warranty. Warranty covers electrical and part failures, not improper use.
-
Page 6: Technical Specifications
In any case, for suitable recycling, we suggest disposing of the products separately (differentiated waste) according to the current norms. DO NOT DISCARD ANY PACKAGING MATERIALS IN THE ENVIRONMENT! Technical Specifications Model GR-IT-2983-B Grater Revolution 1400 Mouth Dimension 6.25” x 11.75”/ 160 x 300mm... -
Page 7: Installation
Installation CONNECTION TO THE ELECTRICAL SYSTEM ATTENTION! Make sure the electrical source corresponds to the value reported on the identification plate of the machine. Each operation should be carried out only by specialized personnel authorized by the appropriate supervisor. Connect the machine to a network with an efficient floor plug. Connect the cable to the 230 V/50 Hz single-phase electrical supply network, inserting a 16-Amp magnetothermic differential switch. -
Page 8: Operation
Operation 2. Set the differential switch in position “I”. The lit indicator, indicating that the machine is powered, must be illuminated. 3. Press the pushbutton to start and immediately afterwards press the stop one, checking the rotation direction of the roller. NOTE The presser must be in a low position. -
Page 9: Maintenance
Operation NOTE If the presser is in an “open” position the machine will not run, therefore it will have to be lowered. STOP • Press the stop pushbutton to stop the running of the machine; the light indicator will remain on to indicate that the machine is powered. -
Page 10: Troubleshooting
REFERENCE Item Number Model Number Description Manufacturer Model Number Cheese Grater 4 HP / 2983 W 39498 GR-IT-2983-B GFHP4 with Brake Motor 208V/60/3 Parts Breakdown Model GR-IT-2983-B 39498 Item No. Description Position Item No. Description Position Item No. Description Position... - Page 11 Parts Breakdown Model GR-IT-2983-B 39498...
-
Page 12: Electrical Schematics
Electrical Schematics Model GR-IT-2983-B 39498... -
Page 13: Notes
Notes... - Page 14 Notes...
-
Page 15: Warranty Registration
Warranty Registration Thank you for purchasing an Omcan product. To register your warranty for this product, complete the information below, tear off the card at the perforation and then send to the address specified below. You can also register online by visiting: Merci d’avoir acheté... - Page 16 Since 1951 Omcan has grown to become a leading distributor of equipment and supplies to the North American food service industry. Our success over these many years can be attributed to our commitment to strengthen and develop new and existing relationships with our valued customers and manufacturers.
