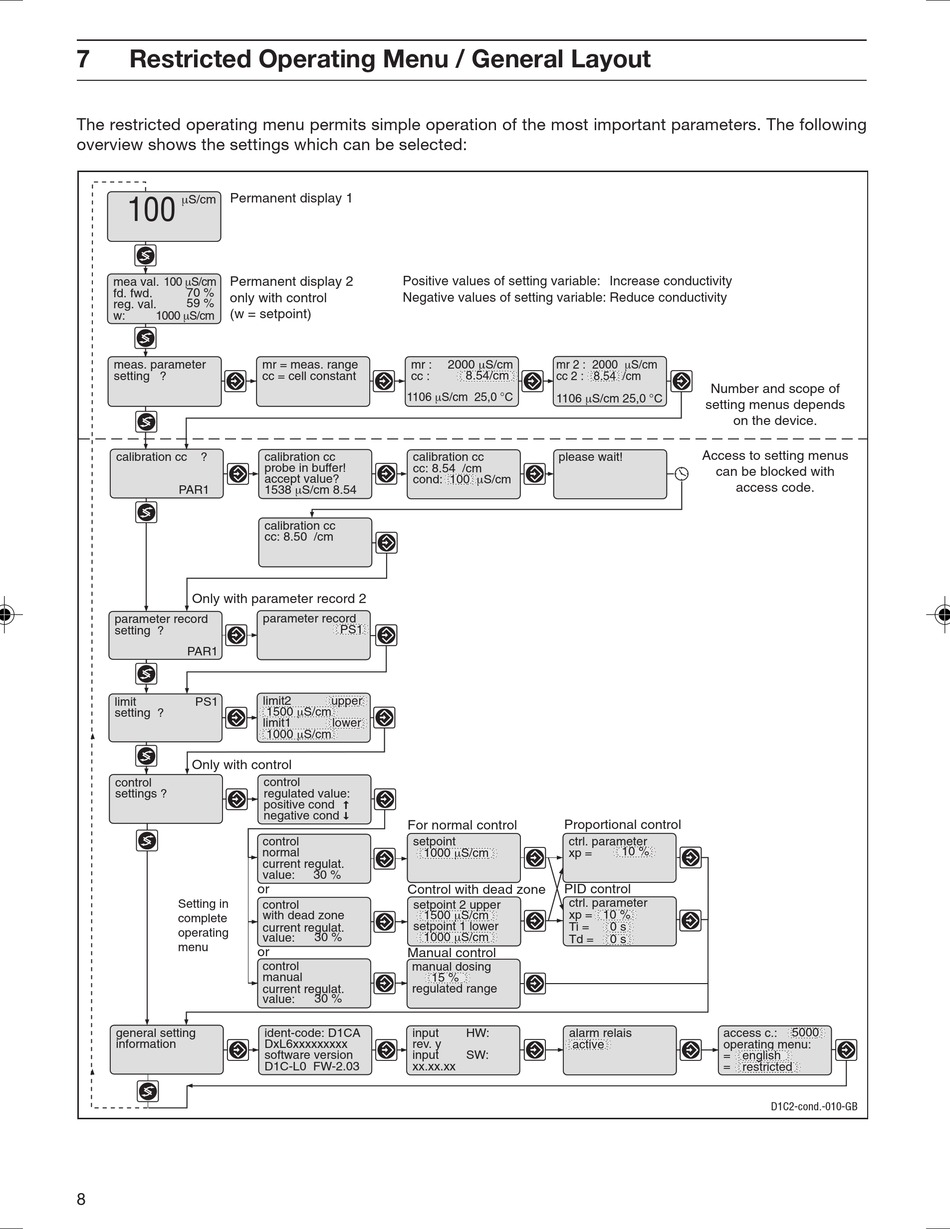

7 Restricted Operating Menu / General Layout
The restricted operating menu permits simple operation of the most important parameters. The following
overview shows the settings which can be selected:
Permanent display 1
µS/cm
100
Permanent display 2
mea val. 100 µS/cm
fd. fwd. 70 %
only with control
59 %
reg. val.
(w = setpoint)
w: 1000 µS/cm
meas. parameter
setting ?
calibration cc ?
PAR1
Only with parameter record 2
parameter record
setting ?
PAR1
limit PS1
setting ?
Only with control
control
settings ?
Setting in
complete
operating
menu
general setting
information
8
Positive values of setting variable:
Negative values of setting variable:
mr = meas. range mr :
cc = cell constant cc :
1106 µS/cm 25,0 °C
calibration cc
calibration cc
probe in buffer! cc: 8.54 /cm
accept value? cond: 100 µS/cm
1538 µS/cm 8.54
calibration cc
cc: 8.50 /cm
parameter record Grenzwert2 oben
PS1
5.00 ppm
Grenzwert1 unten
1.00 ppm
Grenzwert2 oben limit2 upper
5.00 ppm 1500 µS/cm
limit1 lower
Grenzwert1 unten
1000 µS/cm 1.00 ppm
control
regulated value:
positive cond
negative cond
For normal control
control setpoint
normal
current regulat.
value: 30 %
or Control with dead zone
control setpoint 2 upper
with dead zone
setpoint 1 lower
current regulat.
30 %
value:
or
Manual control
control
manual dosing
manual
current regulat. regulated range
value: 30 %
ident-code: D1CA input
DxL6xxxxxxxxx rev. y
software version input
D1C-L0 FW-2.03 xx.xx.xx
2000 µS/cm mr 2 : 2000 µS/cm
8.54/cm
cc 2 : 8.54 /cm
1106 µS/cm 25,0 °C
please wait!
Proportional control
ctrl. parameter
1000 µS/cm xp =
PID control
ctrl. parameter
xp =
1500 µS/cm
Ti =
1000 µS/cm
Td =
15 %
HW: alarm relais
active
SW:
Increase conductivity
Reduce conductivity
Number and scope of
setting menus depends
on the device.
Access to setting menus
can be blocked with
access code.
10 %
10 %
0 s
0 s
access c.:
operating menu:
= english
=
restricted
5000
D1C2-cond.-010-GB
