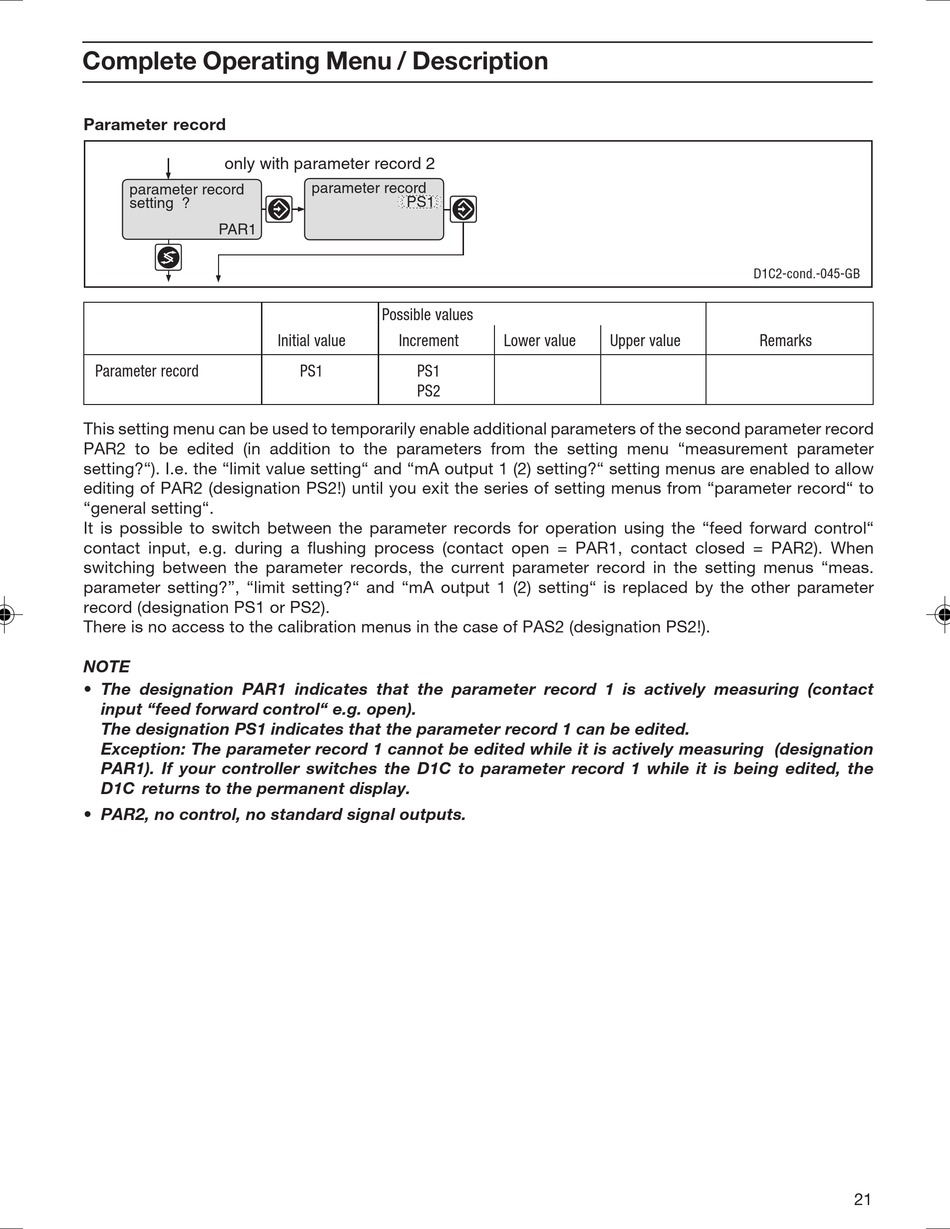

ProMinent DULCOMETER D1C Type D Operating Instructions Manual page 21

Complete Operating Menu / Description
Parameter record
only with parameter record 2
parameter record
setting ?
PAR1
Parameter record
This setting menu can be used to temporarily enable additional parameters of the second parameter record
PAR2 to be edited (in addition to the parameters from the setting menu "measurement parameter
setting?"). I.e. the "limit value setting" and "mA output 1 (2) setting?" setting menus are enabled to allow
editing of PAR2 (designation PS2!) until you exit the series of setting menus from "parameter record" to
"general setting".
It is possible to switch between the parameter records for operation using the "feed forward control"
contact input, e.g. during a flushing process (contact open = PAR1, contact closed = PAR2). When
switching between the parameter records, the current parameter record in the setting menus "meas.
parameter setting?", "limit setting?" and "mA output 1 (2) setting" is replaced by the other parameter
record (designation PS1 or PS2).
There is no access to the calibration menus in the case of PAS2 (designation PS2!).
NOTE
• The designation PAR1 indicates that the parameter record 1 is actively measuring (contact
input "feed forward control" e.g. open).
The designation PS1 indicates that the parameter record 1 can be edited.
Exception: The parameter record 1 cannot be edited while it is actively measuring (designation
PAR1). If your controller switches the D1C to parameter record 1 while it is being edited, the
D1C returns to the permanent display.
• PAR2, no control, no standard signal outputs.
parameter record
Grenzwert2 oben
5.00 ppm PS1
Grenzwert1 unten
1.00 ppm
Possible values
Initial value Increment
PS1 PS1
PS2
Lower value Upper value
D1C2-cond.-045-GB
Remarks
21
