Assembly and operating instructions

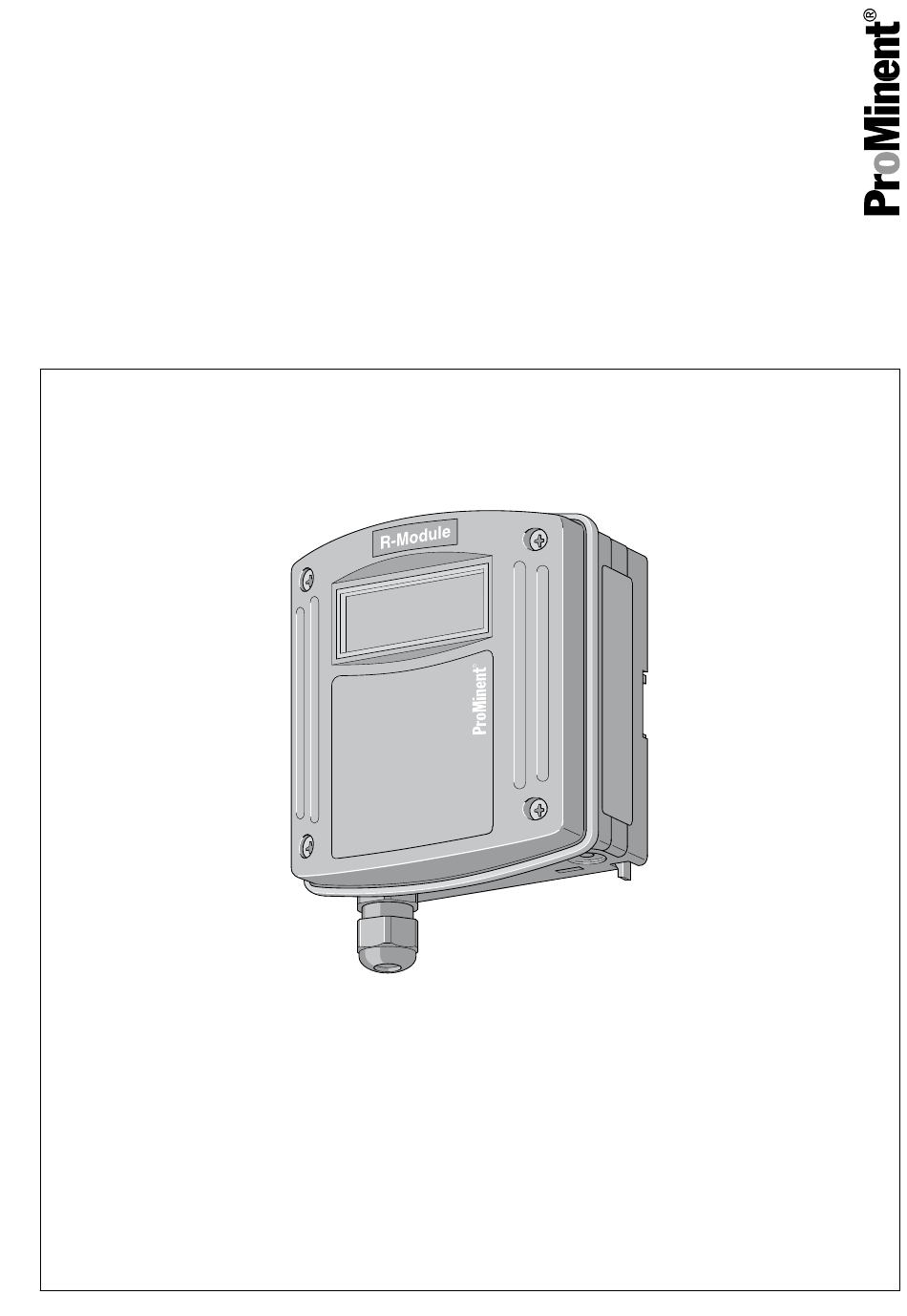

DULCOMARIN
, R Module
®
Control unit for chlorine gas metering device,
DXMaR
EN
A0448
These operating instructions are only valid in conjunction with the "Operating instructions for the DULCOMARIN
".
®
Please carefully read these operating instructions before use. · Do not discard.
The operator shall be liable for any damage caused by installation or operating errors.
The latest version of the operating instructions are available on our homepage.
986539
Version: BA DC 090 03/19 EN
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for ProMinent DULCOMARIN DXMaR Series
Summary of Contents for ProMinent DULCOMARIN DXMaR Series
- Page 1 Assembly and operating instructions DULCOMARIN , R Module ® Control unit for chlorine gas metering device, DXMaR A0448 These operating instructions are only valid in conjunction with the "Operating instructions for the DULCOMARIN ”. ® Please carefully read these operating instructions before use. · Do not discard. The operator shall be liable for any damage caused by installation or operating errors.
- Page 2 Table of contents Table of contents Identity code................3 Safety and responsibility............4 Handling the device.............. 5 Wiring diagram..............6...
- Page 3 Identity code Identity code The identity code describes the external modules for the DULCOMARIN ® DXMa External modules for the DULCOMARIN ® Module: M module, measuring module: pH, ORP, temperature A module, control module: 3 pumps and 4 analogue outputs R module, control module: Chlorine gas metering device with feedback 1) 2) N module, power supply module without relay...
- Page 4 Safety and responsibility Safety and responsibility NOTICE! Further applicable documents These operating instructions are only valid in con‐ junction with the "Operating instructions for DUL‐ COMARIN ® ”. All the safety information and explanations con‐ tained therein must be observed without exception. NOTICE! Intended use –...
- Page 5 Handling the device Handling the device Storage and transport CAUTION! Protect the module against moisture and the effects of chemicals, even while still packaged. Store and transport the module it its original packaging. Ambient conditions for storage and transport: Temperature: -10 °C ... 70 °C. Max.
- Page 6 Wiring diagram Wiring diagram WARNING! Danger to life due to chlorine gas Chlorine gas can escape if a chlorine gas metering ‘OPEN’ . device is accidentally set to Possible consequence: Fatal or very serious inju‐ ries. Measure: Lock the power supply to the chlorine gas metering device in the event of a failure of the chlorine gas metering device, doing the same with the power supply to the booster pump and the cir‐...
- Page 7 Wiring diagram Tab. 1: Terminal assignment Name Terminal identifier Terminal no. Pole Function Output relay output Shut the servomotor. Output relay output Open the servomotor. Response signal Feedback servomotor input position. Electrical data Output relay output (P1, P2): Type of contact: Changeover contact with interference-sup‐ pressed varistors Load capacity: 250 V AC, 3 A max., 700 VA Contact lifespan: >...
- Page 8 ProMinent GmbH Im Schuhmachergewann 5 - 11 69123 Heidelberg Telephone: +49 6221 842-0 Fax: +49 6221 842-419 Email: info@prominent.com Internet: www.prominent.com 986539, 2, en_GB © 2019...
