- Page 1 Operator’s Manual & Parts Drawings Mower Model HM602/HM722/HP722 Revised 09/27/16 Original Operator’s Manual 09.10042 Rev. 08...
-
Page 2: To The Owner
To the Owner Contact Information and Product Identification If you need to contact an authorized Ventrac dealer for information on servicing your product, always provide the product model and serial numbers. Please fill in the following information for future reference. See the picture(s) below to find the location of the identification numbers. -
Page 3: Table Of Contents
TABLE OF CONTENTS INTRODUCTION PAGE 5 Product Description ..........................5 Why Do I Need an Operator’s Manual? ....................5 Using Your Manual ..........................6 Manual Glossary ............................6 SAFETY PAGE 7 Safety Decals ............................7 General Safety Procedures ........................9 Training Required ...........................9 Personal Protective Equipment Requirements ..................9 Operation Safety ............................9 Preventing Accidents ..........................10 Keep Riders Off ............................10... - Page 4 Tire Pressure ............................20 Deck Leveling Procedure ........................20 Lubrication ............................21 Maintenance Schedule .........................23 Maintenance Checklist .........................23 SPECIFICATIONS PAGE 24 HM602 Dimensions ..........................24 HM722 Dimensions ..........................24 HP722 Dimensions ..........................24 Features ...............................24 PARTS PAGE 26 Main Deck ............................26 Deck Belt, Spindles, & Blades ......................28 Carrier Frame ............................30...
-
Page 5: Introduction

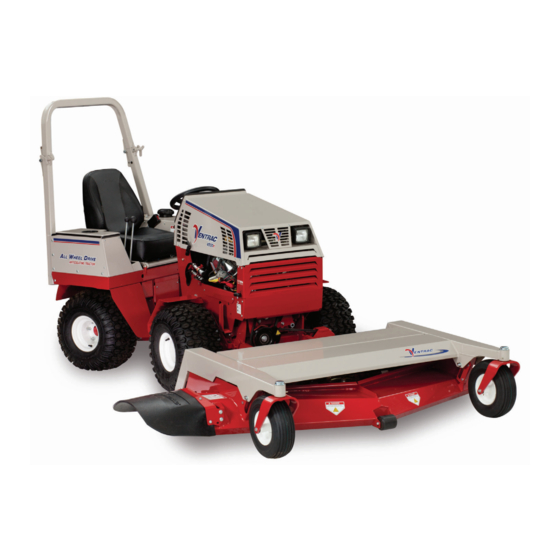

The HM602 features a 60 inch (152 cm) cutting width, the HM722 and the HP722 feature a 72 inch (183 cm) cutting width. The HP722 mower deck is offset to the left 6-1/2 inches (16.5 cm). Ventrac’s LAS (Lin- ear Adjustment System) provides thirteen cutting height positions ranging from 1-1/8”... -
Page 6: Using Your Manual
Manual Glossary Power Unit A Ventrac tractor or other Ventrac engine powered device that may be operated by itself or with an attachment or accessory. Attachment A piece of Ventrac equipment that requires a Power Unit for operation. -
Page 7: Safety
Keep all safety decals legible. Remove all grease, dirt, and debris from safety decals and instructional labels. If any decals are faded, illegible, or missing, contact your dealer promptly for replacements. When new components are installed, be sure that current safety decals are affixed to the replacement components. HM602 HM/HP722 Location Location... -
Page 8: Decal Description
SAFETY Decal Description Part Number Quantity Danger, Shield Missing 00.0062 Danger, Pinching Hazard 00.0102 Danger, Thrown Object Hazard 00.0122 Danger, Keep Hands & Feet Clear 00.0123 Warning, Moving Parts 00.0216 Warning, Read Owner’s Manual 00.0217 Warning, Do Not Reach 00.0219 Warning, General Safety 00.0220 Safety - 8... -
Page 9: General Safety Procedures
SAFETY General Safety Procedures for Ventrac Power Units, Attachments, & Accessories Training Required • The owner of this machine is solely responsible for properly training the operators. • The owner/operator is solely responsible for the operation of this machine and prevention of accidents or injuries occurring to him/her- self, other people, or property. -
Page 10: Preventing Accidents
SAFETY General Safety Procedures for Ventrac Power Units, Attachments, & Accessories Operation Safety (continued) • If equipped with a high/low range feature, never shift between high and low range while on a slope. Always move the machine to level ground and engage the parking brake before shifting range. -
Page 11: Operating On Slopes
SAFETY General Safety Procedures for Ventrac Power Units, Attachments, & Accessories Operating On Slopes • Slopes can cause loss-of-control and tip-over accidents, which can result in severe injury or death. Be familiar with the emergency parking brake, along with the power unit controls and their functions. -
Page 12: Maintenance
• If the power unit, attachment, or accessory requires repairs or adjustments not instructed in the operator’s manual, the power unit, attachment, or accessory must be taken to an authorized Ventrac dealer for service. • Never perform maintenance on the power unit and/or attachment if someone is sitting in the operator’s seat. -
Page 13: Hydraulic Safety
SAFETY General Safety Procedures for Ventrac Power Units, Attachments, & Accessories Fuel Safety (continued) • Do not overfill fuel tank. Only fill to bottom of fuel neck, do not fill fuel neck full. Overfilling of fuel tank could result in engine flooding, fuel leakage from the tank, and/or damage to the emissions control system. -
Page 14: Cutting Unit Safety
SAFETY HM602/HM722/HP722 Safety Procedures Cutting Unit Safety • Rotating Blades: Contact with the rotating mower blades or other moving parts may cause personal injury. Keep hands and feet away. • Rotation of one blade may cause another blade to rotate. -
Page 15: Operational Controls
OPERATIONAL CONTROLS Height Adjustment Handle The height adjustment handle (A) is used to raise or lower the mower deck and to lock the mower deck at the desired cutting height. Primary S.D.L.A. Control Lever Pull the primary S.D.L.A. lever to the left to raise the power unit front hitch and mower deck. -
Page 16: General Operation
GENERAL OPERATION GENERAL OPERATION Daily Inspection 7. Remove the attachment belt from the PTO drive pulley of the power unit. 8. Open the front hitch locking lever*. 9. Restart the power unit and slowly back away from the mower. A side to side movement of the Always set the parking brake, shut off the power steering wheel may aid disengagement. -
Page 17: Cutting Height Adjustment
GENERAL OPERATION Cutting Height Adjustment Cutting Height Range Position The HM/HP series mower decks are designed with two cutting height range positions. The cutting height ranges for the standard and high positions are Always set the parking brake, shut off the power listed on the specifications page of this manual. -
Page 18: Mulching Kit (Optional Accessory)
GENERAL OPERATION Mulching Kit (Optional Accessory) 5. Reinstall the flange nut onto the height adjustment linkage bolts and torque to 31 ft-lbs (42 Nm). Mulching procedures may vary greatly due to cli- 6. Lift up the mower deck shield and remove the 2) mate, type of grass, and soil conditions. -
Page 19: Service
Mower Blade Inspection/Replacement Attention If any component requires replacement, use only Mower blades may be sharp. Always wear original Ventrac replacement parts. heavy gloves when working with mower blades. Cleaning and General Maintenance Rotate the mower deck up to the service posi- tion following the deck flip-up procedure. -
Page 20: Drive Belt Replacement
SERVICE Drive Belt Replacement Deck Belt Tensioning Adjustment 1. Detach the mower deck from the power unit. If the deck belt slips during normal mowing operation, the belt tension will need to be adjusted. 2. Remove the drive pulley shield. 1. -
Page 21: Lubrication
SERVICE the blade so the cutting tip is at the back of the vice position. After flipping the deck up to the service deck. Measure the distance from the flat surface position, move the height adjustment bracket to set- to the blade tip. ting #13. -
Page 22: Preparing The Mower For Storage
SERVICE Storage Preparing the Mower for Storage 1. Clean the mower deck and frame. 2. Inspect for loose or missing hardware, damaged components, or signs of wear. Repair or replace any damaged or worn components. 3. Inspect belts, spindles, and blades. Repair or replace any damaged or worn components. -
Page 23: Maintenance Schedule
SERVICE Maintenance Schedule HM602 / HM722 / HP722 Maintenance Schedule Grease & Lubrication: See Lubrication Section Grease & Lubrication: See Lubrication Section Caster Wheel Pivot ... -
Page 24: Specifications
SPECIFICATIONS HM602 Dimensions Overall Height ....... . . 16 inches (40.6 cm) Overall Length . - Page 25 Blank Page...
-
Page 26: Parts
PARTS ILLUSTRATED DRAWING Main Deck Use only original Ventrac Illustrated Parts - 26 replacement parts. - Page 27 23 ..64.1177 ....... .
-
Page 28: Deck Belt, Spindles, & Blades
PARTS ILLUSTRATED DRAWING Deck Belt, Spindles, & Blades Use only original Ventrac Illustrated Parts - 28 replacement parts. - Page 29 12 ..87.0222 ....... .
-
Page 30: Carrier Frame
PARTS ILLUSTRATED DRAWING Carrier Frame Use only original Ventrac Illustrated Parts - 30 replacement parts. - Page 31 7 ..00.0189 ... 00.0189 ....DECAL, VENTRAC ORBITAL .
-
Page 32: Front Wheels & Rear Roller
PARTS ILLUSTRATED DRAWING Front Wheels & Rear Roller Use only original Ventrac Illustrated Parts - 32 replacement parts. - Page 33 13 ..53.0133 ....... .
-
Page 34: Hitch Frame & Drive Shaft
PARTS ILLUSTRATED DRAWING Hitch Frame & Drive Shaft Use only original Ventrac Illustrated Parts - 34 replacement parts. - Page 35 18 ..90.0410 ....... .
-
Page 36: 150 & 39.55151 Mulching Kits
PARTS ILLUSTRATED DRAWING 39.55150 HM602 Mulching Kit 39.55151 HM722/HP722 Mulching Kit Use only original Ventrac Illustrated Parts - 36 replacement parts. - Page 37 PARTS 39.55150 HM602 Mulching Kit 39.55151 HM722/HP722 Mulching Kit HM602 HM722/HP722 REF. PART NO. PART NO. DESCRIPTION QTY. 1 ..97.0506 ... 97.0506 ....BOLT, CARRIAGE 5/16 X 3/4 ........5 2 .
-
Page 38: Warranty
Ventrac equipment. Proof of purchase may be required by the dealer to substantiate any warranty claim. - Page 39 (i) damage or defects due to or arising out of repair of Ventrac turf equipment by person or persons other than an authorized Ventrac service dealer or the installation of parts other than genuine Ventrac parts or Ventrac recommended parts.
