Summary of Contents for Elba EH 733 WH

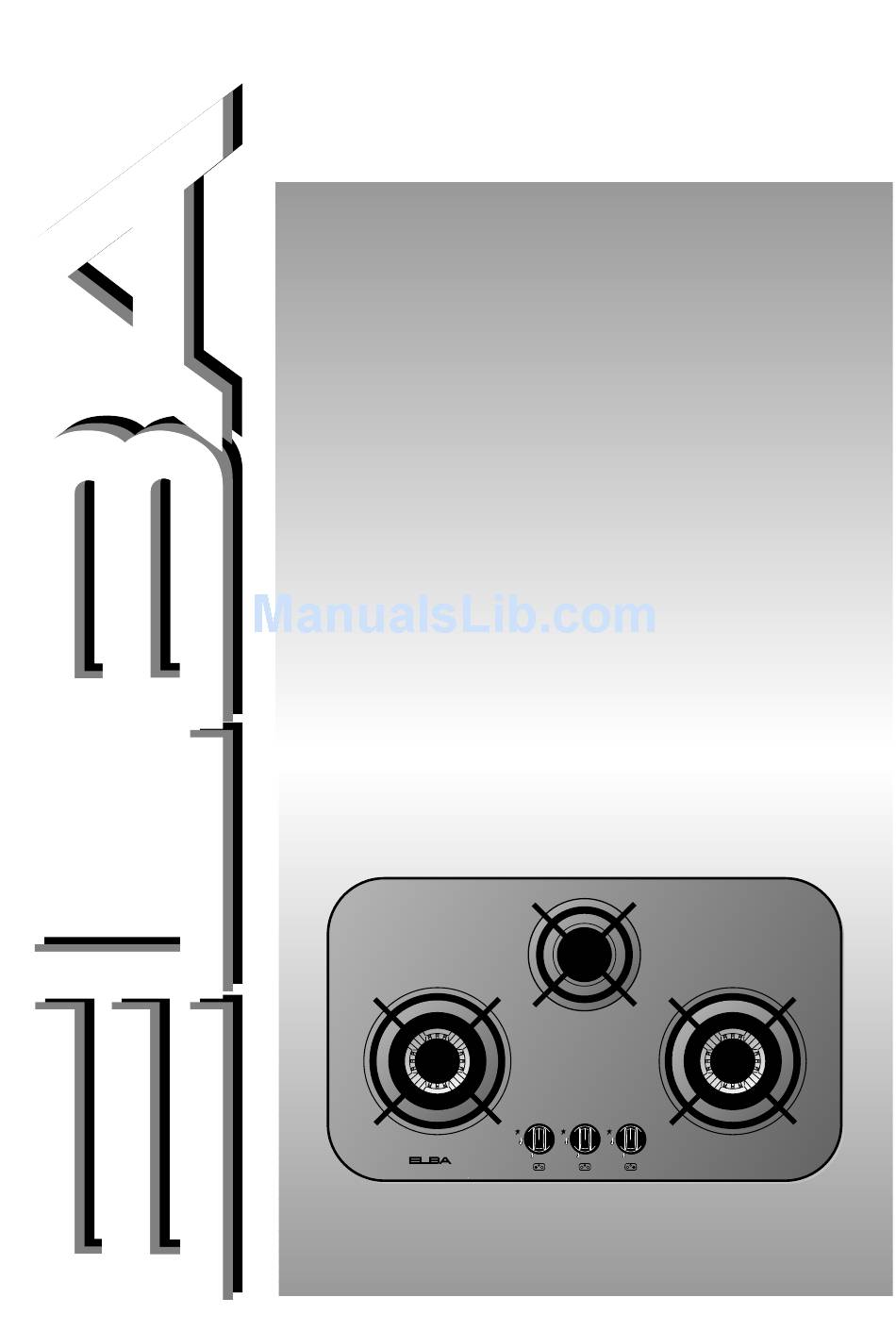

- Page 1 BUILT-IN GLASS HOBS EH 733 WH EH 733 BK EHS 733 WH EHS 733 BK...
- Page 2 Dear Customer, Thank you for having purchased and given your preference to our product. The safety precautions and recommendations reported below are for your own safety and that of others. They will also provide a means by which to make full use of the features offered by your appliance.
-
Page 3: Important Precautions And Recommendations
IMPORTANT PRECAUTIONS TIPS FOR THE USER AND RECOMMENDATIONS During and immediately after use some parts of the hob can reach After having unpacked the very high temperatures. Do not appliance, check to ensure that it touch them. is not damaged. In case of doubt, Keep children away when the hob do not use it and consult your is in use. -
Page 4: Description Of Controls
1. Semirapid burner (SR) 1,75 kW ignition + safety devices 2. Triple ring burner (TR) 3,50 kW with “wok” pan support. EH 733 WH, EH 733 BK 3. Triple ring burner (TR) 3,50 kW with “flat-bottomed” pan support. 3 burners (2 triple ring) +... -
Page 5: Use Of Cooking Hob
USE OF COOKING HOB GAS BURNERS To light one of the gas burners, hold a flame (e.g. a match) close to the top Gas flow to the burners is adjusted by part of the burner, push in and turn turning the knobs illustrated in fig. 2 the relative knob in an anti-clockwise which control the safety valves. - Page 6 WITH ELECTRIC IGNITION (fitted with safety valve device) (without safety valve device) mod. EHS 733 WH, EHS 733 BK mod. EH 733 WH, EH 733 BK with ignition incorporated in the burner knobs model with ignition incorporated in the burner knobs...
-
Page 7: Choice Of The Burner
CHOICE OF THE BURNER On the control panel, near every knob, there is a diagram that indicates which burner is controlled by that knob. The suitable burner must be chosen according to the diameter and the capacity used. As an indication, the burners and the Fig. - Page 8 Do not place anything, e.g. flame tamer, asbestos mat, between pan and pan support as serious damage to the appliance may result. Do not remove the pan support and enclose the burner with a wok stand as this will concentrate and deflect the heat onto the hotplate.
- Page 9 CORRECT USE OF THE PAN SUPPORTS Use the WOK pans only to the wok pan support (fig. 5a - 5b). Do not use the flat-bottomed pans to the wok pan support (fig. 5c). Do not use the WOK pans to the the SR pan support (fig. 5d). Fig.
-
Page 10: Cleaning And Maintenance
CLEANING AND MAINTENANCE GENERAL ADVICE GENERAL Cleaning and maintenance should be When the appliance is not being used, it is advisable to keep the carried out with the appliance cold especially when cleaning the gas tap closed. enamelled parts. Avoid leaving alkaline or acid If the gas tap becomes stiff, it is substances (lemon juice, vinegar etc.) necessary to dismount it... - Page 11 TRIPLE RING BURNER CLEANING THE TRIPLE RING BURNER The triple ring burner must be correctly Pay special attention to this burner: the positioned (see fig. 7); the burner rib four holes around the outside of the must be enter in their logement as crown must always be kept clean.
- Page 12 BUILT-IN GLASS HOBS Advice for the Installer...
- Page 13 IMPORTANT The appliance should be installed, regulated and adapted to function with other types of gas by a QUALIFIED INSTALLATION TECHNICIAN. Failure to comply with this condition will render the guarantee invalid. The appliance must be installed in compliance with regulations in force. Always unplug the appliance before carrying out any maintenance operations or repairs.
-
Page 14: Installation
INSTALLATION Foreword: the cooker top must be kept no less These tops are designed to be than 100 mm away from any side embedded into kitchen fixtures wall; measuring 600 mm in depth. the hob must be installed at least 50 mm from the wall. - Page 15 INSTALLATION IN KITCHEN CABINET WITH DOOR (fig. 13) The fixture has to be made according to specific requirements in order to prevent the gas burners from going out, even when the flame is turned down to minimum, due to pressure changes while opening or closing the cupboard doors.
-
Page 16: Installation Room
INSTALLATION ROOM DISCHARGING PRODUCTS OF COMBUSTION The room where the gas appliance is to be installed must have a natural flow of Extractor hoods connected directly to air so that the gas can burn. the outside must be provided, to allow the products of combustion of the gas The flow of air must come directly from appliance to be discharged (fig. -
Page 17: Gas Section
GAS SECTION TYPES OF GASES GAS CONNECTION The connection must be executed by The gases normally used may be qualified technician according to the rel- grouped, in view of their features, in evant standard. three families: The fitting (fig. 18) is made up of: 1 elbow fitting “A”... - Page 18 Orientation of the elbow IMPORTANT: Never attempt to turn the elbow The appliance is supplied with a gas con- “A” without having first slackened nection oriented towards the centre of off the relative lock nipple. the cooking hob. The connection to the gas supply must be effected only from The seals “D-E-F”...
- Page 19 OPERATIONS TO BE PERFORMED WHEN SUBSTITUTING THE INJECTORS If the injectors are not supplied they can be obtained from the “Service Centre”. Remove the gratings and the burner covers; Using a wrench, substitute the nozzle injectors “J” (Fig. 20) with those most suitable for the kind of gas for which it is to be used (see Injector table).
- Page 20 TABLE FOR THE CHOICE OF THE INJECTORS BURNERS WITH SAFETY VALVE DEVICE Measured heat input (kW) Manufacturer’s declaration (kW) Ø injector [1/100 mm] Nominal Reduced Nominal Reduced Semirapid (SR) 1,82 0,60 1,75 0,45 3,59 1,64 1,50 Triple-ring (TR) 3,50 3,40 1,60 3,50 1,50...
-
Page 21: Lubrication Of The Gas Taps
REGULATING THE BURNER LUBRICATION OF THE GAS TAPS MINIMUM SETTING If the gas tap becomes stiff, it is necessary to dismount it accurately When switching from one type of gas clean it with gasoline and spread a bit to another, the minimum flow rate must of special grease resistant to high also be correct: the flame should not temperatures on it. -
Page 22: Electrical Section
ELECTRICAL SECTION It is possible to connect the appliance IMPORTANT: directly to the mains supply by means Installation has to be carried out of a heavy duty switch with 3 mm according to the instructions provid- minimum distance between the ed by the manufacturer. -
Page 23: Replacing The Power Supply Cable
REPLACING THE POWER SUPPLY CABLE Use the same type of power supply cable. This cable must be connected to the ter- minal block following the diagram in fig. SECTION OF THE SUPPLY CABLES Type “H05V2V2-F” resistance to temperatures of 90°C 230 V~ 3 x 0,75 mm 230 V... - Page 24 Descriptions and illustrations in this booklet are given as simply indicative. The manufacturer reserves the right, considering the characteristics of the models described here, at any time and without notice, to make eventual necessary modifications for their construction or for commercial needs. Cod.
