Instructions for the use - Installation advices
100
BUILT-IN COOKING HOBS
%
ELBA QUALITY
MADE IN ITALY
EHS 635D1 SB
EHS 645D1 SB
Made in Italy

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EHS 635D1 SB and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Elba EHS 635D1 SB

  • Page 1 Instructions for the use - Installation advices BUILT-IN COOKING HOBS EHS 635D1 SB EHS 645D1 SB ELBA QUALITY MADE IN ITALY Made in Italy...
  • Page 2 Dear Customer, Thank you for having purchased and given your preference to our product. The safety precautions and recommendations reported below are for your own safety and that of others. They will also provide a means by which to make full use of the features offered by your appliance.
  • Page 3: Important Safety Precautions And Recommendations

    IMPORTANT SAFETY PRECAUTIONS AND RECOMMENDATIONS IMPORTANT: This appliance is designed and manufactured solely for the cooking of domestic (household) food and is not suitable for any non domestic application and therefore should not be used in a commercial environment. The appliance guarantee will be void if the appliance is used within a non domestic environment i.e.
  • Page 4 • CAUTION: this appIiance must only be installed in a permanently ventilated room in compliance with the applicable regulations. • Do not carry out cleaning or maintenance operations on the appliance without having previously disconnected it from the electric power supply. • Do not use a steam cleaner because the moisture can get into the appliance therefore making it unsafe.
  • Page 5 Care should be taken to avoid touching heating elements on – the hob. To avoid burns and scalds, young children should be kept – away. • Make sure that electrical cables connecting other appliances in the proximity of the cooktop cannot come into contact with the hob.
  • Page 6 ADVICE for the INSTALLER IMPORTANT • The appliance should be installed, regulated and adapted to function by a QUALIFIED INSTALLATION TECHNICIAN. • Failure to comply with this condition will render the guarantee invalid. • The appliance must be installed in compliance with the regulations in force in your country and in observation of the manufacturer’s instructions.
  • Page 7: Installation

    INSTALLATION TECHNICAL INFORMATION FOR THE INSTALLER In order to install the cooker top into the kitchen fixture, a hole with the dimensions shown in fig. 1.2 has to be made, bearing in mind the following: • within the unit, between the bottom of the cooktop and the upper surface of a shelf there must be a clearance of at least 30 •...
  • Page 8 INSTALLATION IN KITCHEN Fig. 1.3 (fig. 1.3) CABINET WITH DOOR It is recommended that a 30mm clearance be left between to base of the cooktop and the separator. The separator shall be heat resistant, made Clearance of low thermal conductivity material and shall be removable with the use of a tool for Door installation and service.
  • Page 9: Ventilation Requirements

    VENTILATION REQUIREMENTS The appliance must be installed in compliance with applicable local regulations concerning ventilation and the evacuation of exhaust gases. Intensive and prolonged use may require extra ventilation, e.g. opening a window, or more efficient ventilation increasing the mechanical suction power if this is fitted. CHOOSING SUITABLE SURROUNDINGS The room where the gas appliance is to be installed must have a natural flow of air so that the gas can burn (in compliance with applicable local regulations). The flow of air must come directly from one or more openings made in the outside walls with a free area of at least 100 cm (or refer to applicable local regulations).
  • Page 10: Gas Section

    GAS SECTION GAS INSTALLATION REQUIREMENTS Important ! • Before installation, make sure that the local distribution conditions (gas type and pressure) and the adjustment of this appliance are compatible. The appliance adjustment conditions are given on the plate or the label. •...
  • Page 11 GAS CONNECTION WITH A RUBBER HOSE Important ! A rubber hose connection shall only be made if permitted by the applicable local regulations. The gas connection fitting (fig. 2.1) is made up of: • the appliance inlet pipe; • the floating nut; •...
  • Page 12 Connecting the appliance to LPG If not already fitted, fit the TOWN GAS/NATURAL GAS hose holder on the inlet pipe, making sure that you place the sealing washer between them (as shown in fig. 2.1); then fit the LPG adaptor to the TOWN GAS/NATURAL GAS hose holder, making sure that you place the sealing washer between them (as shown in fig.
  • Page 13 After connecting the appliance to the gas supply, make sure that you • check that the connections are correctly sealed using a soapy solution, but never a naked flame. • check whether the injectors are correct for the type of gas being used. If not, follow the instructions under “GAS MAINTENANCE”.
  • Page 14: Testing Operation

    When connecting the appliance to the gas supply with rigid pipes or a flexible hose, make sure that • you use rigid pipes or a flexible hose complying with applicable local regulations. The flexible hose shall be of the correct construction for the type of gas being used and of the correct size to maintain the heat output of the appliance. •...
  • Page 15: Lubrication Of The Gas Taps

    GAS MAINTENANCE TABLE FOR THE CHOICE OF THE INJECTORS Natural Gas Town Gas G110 Nominal Reduced BURNERS 28 mbar 20 mbar 8 mbar power power [kW] [kW] Ø injector Ø injector Ø injector [1/100 mm] [1/100 mm] [1/100 mm] 1,00 Auxiliary (A) 0,30 1,75...
  • Page 16: Adjusting Of The Minimum Of The Top Burners

    REPLACEMENT OF THE INJECTORS Auxiliary, Select the injectors to be replaced semi-rapid and rapid according to the “Table for the choice of the burners injectors”. nozzle diameters, expressed hundredths of a millimetre, are marked on the body of each injector. If the injectors are not supplied they can be obtained from the “Service Centre”.
  • Page 17 ADVICE for the USER...
  • Page 18: Gas Burners

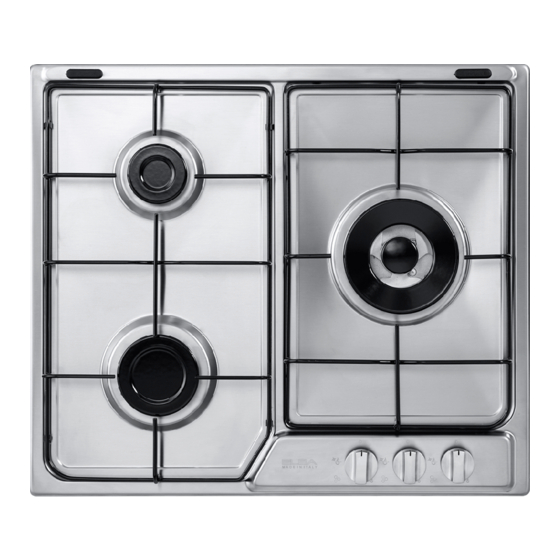

    FEATURES AND HOW TO USE THE COOKTOP Fig. 1.1a Fig. 1.1b GAS BURNERS Auxiliary burner (A) 1,00 kW Semirapid burner (SR) 1,75 kW Semirapid burner (SR) 1,75 kW Rapid burner (R) 3,00 kW Triple-ring burner (TR) 3,50 kW CONTROL PANEL DESCRIPTION Front right auxiliary burner control knob (1) Rear right semirapid burner control knob (2) Rear left semirapid burner control knob (3)
  • Page 19 GAS BURNERS Gas flow to the burners is adjusted by turning the knobs (illustrated in fig. 1.2) which control the safety valves. Turning the knob, so that the indicator line points to the symbols printed on the panel, achieves the following functions: –...
  • Page 20: Lighting The Burners

    LIGHTING THE BURNERS CHOICE OF THE BURNER ignite burner, following On the control panel, near every knob there instructions are to be followed: is a diagram that indicates which burner is controlled by that knob. Press in the corresponding knob and turn counter-clockwise (fig.
  • Page 21 GRATE FOR SMALL PANS (Optional) This grate is to be placed on top of the (smaller) auxiliary burner when using small diameter pans, in order to prevent them from tipping over. Fig. 1.5 (figs. 1.6a - 1.6b) SPECIAL WOK GRILLE This special grille for woks should be placed over the pan-rest for the triple ring burner.
  • Page 22: Cleaning And Maintenance

    CLEANING AND MAINTENANCE GENERAL ADVICE COOKING HOBS WITH • Before you begin cleaning, you must GLASS LID (optional) ensure that the appliance is switched off and disconnected from the electrical power supply. • Important: The use of suitable protective clothing/gloves is recommended when handling or cleaning of this appliance.
  • Page 23 ENAMELLED SURFACES All the enamelled parts must be cleaned with a sponge and soapy water only or other non- abrasive products. Dry preferably with a microfibre or soft cloth. If acid substances such as lemon juice, tomato conserve, vinegar etc. are left on the enamel for a long time they will etch it, making it opaque.
  • Page 24 Fig. 2.2 Fig. 2.1 Fig. 2.3 Fig. 2.4 Fig. 2.5...
  • Page 25 BATTERY FOR ELECTRIC IGNITION In some models the battery is the power supply for the electronic ignition of gas burners. Batteries last on average for about two years (alkaline battery) depending on how often the electronic ignition is used. Fig. 2.6 Fig.
  • Page 26 FITTING THE BATTERY IGNITION Important notes: • SUPPLY Remove the battery if the cooking hob • is not going to be used for a long time. Remove pan supports and burners • from the cooktop. battery leaks, replace • immediately. Avoid touching Turn over the cooktop: be carefull to...
  • Page 28 The manufacturer cannot be held responsible for possible inaccuracies due to printing or transcription errors in the present booklet. The manufacturer reserves the right to make all modifications to its products deemed necessary for manufacturer commercial reasons at any moment and without prior notice, without jeopardising the essential functional and safety characteristics of the appliances.
