  • Page 1 Schaerer Coffee Art 1x7 FS User Manual | 05.2015 | v01...
  • Page 2 All information, illustrations, and specifications are based on the latest product information available at the time of publication approval. Schaerer USA Corporation reserves the right to change the content at any time without prior notice. Note that the pictures and display messages shown inside are only examples; your machine and display messages may vary.
  • Page 3 www.schaererusa.com Cautions & Warnings Cautions & Warnings USE CAUTION WHILE OPERATING AND CLEAN- ING THE COFFEE ART PLUS MACHINE WARNING: TO PREVENT ELECTRICAL SHOCK, DO NOT REMOVE SIDE OR BACK PANELS FROM THIS MACHINE. NO USER SERVICE- ABLE PARTS INSIDE. REFER SERVICING TO AUTHORIZED SERVICE PERSONNEL ONLY.

  • Page 4: Table Of Contents

    Tips During Operation Maintenance Daily Cleaning Cleaning the Steam Wand Weekly Coffee Spout Cleaning Weekly Hopper Cleaning Error Messages How to Get Help Warranty Information Appendix MSDS Schaerer Cleaning Tablets MSDS Schaerer Steam Wand Cleaner User Manual | 05.2015 | v01...

  • Page 5: Machine Overview

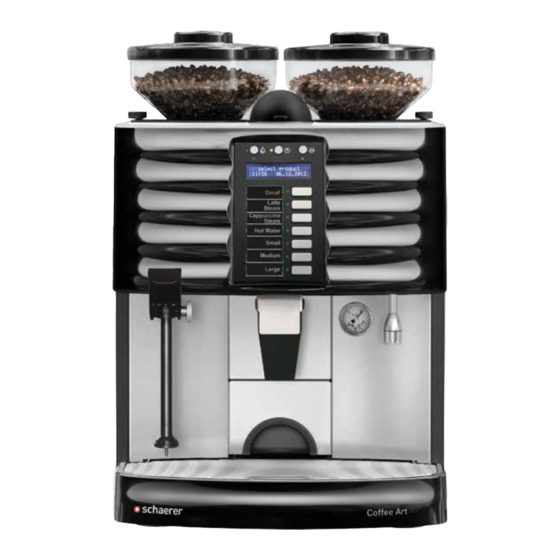

    www.schaererusa.com Introduction | Machine Overview Machine Overview Dual bean hoppers each hold up to 1 kg (2.2 lbs.) Regular (left) and Decaf (right) Cleaning tablet funnel Chip card reader LED display Button panel Coffee spout Hot water spout Grounds bin PEEK steam wand with finesteam ®...

  • Page 6: Machine Description

    www.schaererusa.com Introduction | Machine Description Machine Description Button Panel and “-” button begins the cleaning procedure. button controls the power to the machine. To turn the machine off, press and hold the button for 2 seconds. To turn it on, just the press the button. Press the and “+”...
  • Page 7 Refer to page 20 for instructions. Cleaning Tablet Funnel The cleaning tablet funnel is located between the two bean hoppers. Only Schaerer Cleaning Tablets should be dropped into this funnel dur- ing the daily cleaning procedure. Refer to pages 17-18 for daily cleaning instructions.

  • Page 8: Grounds Bin

    www.schaererusa.com Introduction | Machine Description Grounds Bin The grounds bin is located below and behind the coffee spout. It holds the used grounds which are disposed of after each espresso shot is brewed. The bin slides straight out from the machine and must be emptied periodically or when prompted on the display.

  • Page 9: Machine Accessories

    Introduction | Machine Accessories Machine Accessories User Manual Daily Cleaning Instructions Steam Wand Cleaner (Item #12-MAB-SU1DN-06) Schaerer Cleaning Tablet (Item #65221) Large Cleaning Brush (Item #67409) Small Cleaning Brush (Item #350352) TO ORDER CLEANING SUPPLIES PLEASE CALL 888.989.3004 (PRESS 1, THEN PRESS 4) User Manual | 05.2015 | v01...

  • Page 10: Utility Hook-Up Requirements

    www.schaererusa.com Utility Hook-Up Requirements Utility Hook-Up Requirements 25" [635mm] (including rear clearance) 17" [432mm] 22" [560mm] 3" [80mm] 38" [965mm] (including top clearance) 30" [762mm] 4" [102mm] 3" [80mm] DIAMETER ACCESS HOLE 22" The receptacle (NEMA L6-30R) 28" [712mm] [560mm] and Water Filter can be located (including top and either under the counter or top of...

  • Page 11: General Operation

    www.schaererusa.com Operation | General Operation General Operation Introduction This chapter describes the basic functions of the espresso machine. Read the instructions carefully to ensure smooth routine operation. Filling Bean Hoppers Only use whole beans in the bean hoppers! Never reach with your hands into the bean hoppers when the machine is switched on.
  • Page 12 www.schaererusa.com Operation | General Operation Switching Off the Espresso Machine If the espresso machine is not used for longer periods, i.e. overnight, it can be switched to standby mode. In this mode, the boiler is not heated and no beverages are available. 1.

  • Page 13: Beverage Output

    www.schaererusa.com Operation | Beverage Output Beverage Output - Sample Foamed and Steamed Milk Steam wand is hot! Always wipe steam wand with a thick, clean, damp cloth and purge after each use. Refer to page 19 for details. Foamed Milk Steamed Milk 1.
  • Page 14 www.schaererusa.com Operation | Beverage Output Espresso and Decaf Espresso Shot All beverages dispensed by the machine are extremely hot! Espresso Shot Decaf Espresso Shot 1. Place cup under coffee spout 1. Place cup under coffee spout. 2. Press the Decaf button. 2.

  • Page 15: Cappuccino And Latte

    www.schaererusa.com Operation | Beverage Output Cappuccino and Latte Cappuccino Latte 1. Portion milk into steaming pitcher. 1. Portion milk into steaming pitcher. 2. Submerge steam wand into pitcher and make 2. Submerge steam wand into pitcher and make sure wand points straight down. Press the sure wand points straight down.

  • Page 16: Tips During Operation

    www.schaererusa.com Operation | Tips During Operation Tips During Operation Always run the daily cleaning procedure Always wipe steam wand with a thick, clean, when prompted by the machine display. damp cloth and purge after each use. Refer Refer to pages 17-18 for details. to page 19 for details.

  • Page 17: Daily Cleaning

    ► Item #65221 Item #350352 Item #67409 Item #12-MAB-SU1DN-06 • Use only Schaerer cleaning sup- • Fill large steaming pitcher with • Point steam wand toward drip plies for this procedure. 16oz of water and mix in 1oz/30ml tray. Press the Latte Steam but- Schaerer Steam Wand Cleaner.
  • Page 18 Wipe the two bean hoppers and drop steam wand with a thick, clean, in one Schaerer cleaning tablet. damp cloth. Be careful, wand Cleaning runs (4:33 min.)! Close lid after dropping tablet.

  • Page 19: Cleaning The Steam Wand

    www.schaererusa.com Maintenance | Cleaning the Steam Wand Cleaning the Steam Wand After Each Use Always use a cloth and/or steam wand handle (grip) when cleaning or steaming milk. Direct skin contact with wand may result in burns. ■ ► • Once milk steaming has stopped, •...

  • Page 20: Weekly Hopper Cleaning

    www.schaererusa.com Maintenance | Weekly Hopper Cleaning Weekly Hopper Cleaning Read and follow the instructions carefully before you begin the weekly hopper cleaning procedure. This procedure should be performed on a weekly basis. Do not clean the bean hoppers in the dishwasher. When refilling the bean hoppers, do not reach into the grinder and do not press any of the product buttons! If the oil from the bean remains, use non-abrasive dish washing soap.

  • Page 21: Error Messages

    www.schaererusa.com Error Messages Error Messages Display Message Cause Remedy • Appears when the machine is ready to select product operate. 12:00 07.09.2010 Beverages can be dispensed. • The grounds container has been pulled out. ► After cleaning the brew chamber, reinsert the (Cleaning program).
  • Page 22 www.schaererusa.com Error Messages Display Message Cause Remedy • The brew unit has too much electricity (over selection locked 4A). ► Call for service. over curr. brewmotor • Brew unit is jammed. • No water connection. ► Open the shut-off valve and press the beverage •...
  • Page 23 www.schaererusa.com Error Messages Display Message Cause Remedy • Electrical problem between the sensor and the PCB. selection locked • ► Call for service. Temperature sensor defective. steam sensor def. Beverage output is blocked! • The brew unit motor is not running. selection locked ►...

  • Page 24: How To Get Help

    Hours of Business Normal Hours During normal business hours, a Schaerer representative will answer your call directly. In case all lines are busy, please leave a message on our voicemail system according to the instructions that you hear on the voicemail.

  • Page 25: Warranty Information

    In general, manufacturer’s warranty covers malfunctioning of major components. If, during the warranty period (1 year from installation), a component does not work and needs to be replaced or repaired, Schaerer USA will cover time & materials for the service call.
  • Page 26 Schaerer USA will coordinate scheduling through its Service Vendors. In the event that the store or site does not make itself available for a PM visit, Schaerer USA reserves the right to void its obligation toward this visit and the warranty in general.

  • Page 27: Msds Schaerer Cleaning Tablets

    Appendix | MSDS Schaerer Cleaning Tablets MSDS Schaerer Cleaning Tablets Coffeepure Tabs (065221) Safety Data Sheet Espresso Cleaning Tablets Auskunftgebender Bereich: Schaerer Ltd. P.O Box Allmendweg 8, 4528 Zuchwil Switzerland Tel: +41 (0)32 681 62 00 Fax: +41 (0)32 681 63 26 User Manual | 05.2015 | v01...
  • Page 28 Appendix | MSDS Schaerer Cleaning Tablets Page 1/8 Safety data sheet according to 1907/2006/EC, Article 31 Printing date: 24.03.2014 Version No: 8 Revision: 24.03.2014 SECTION 1: Identification of the substance/mixture and of the company/undertaking · 1.1 Product identifier · Trade name: Coffeepure Tabs ·...
  • Page 29 Appendix | MSDS Schaerer Cleaning Tablets Page 2/8 Safety data sheet according to 1907/2006/EC, Article 31 Printing date: 24.03.2014 Version No: 8 Revision: 24.03.2014 Trade name: Coffeepure Tabs (Contd. of page 1) · Hazard statements H315 Causes skin irritation.
  • Page 30 Appendix | MSDS Schaerer Cleaning Tablets Page 3/8 Safety data sheet according to 1907/2006/EC, Article 31 Printing date: 24.03.2014 Version No: 8 Revision: 24.03.2014 Trade name: Coffeepure Tabs (Contd. of page 2) · After swallowing: Rinse out mouth and then drink plenty of water.
  • Page 31 Appendix | MSDS Schaerer Cleaning Tablets Page 4/8 Safety data sheet according to 1907/2006/EC, Article 31 Printing date: 24.03.2014 Version No: 8 Revision: 24.03.2014 Trade name: Coffeepure Tabs (Contd. of page 3) · Further information about storage conditions: Store under lock and key and out of the reach of children.
  • Page 32 Appendix | MSDS Schaerer Cleaning Tablets Page 5/8 Safety data sheet according to 1907/2006/EC, Article 31 Printing date: 24.03.2014 Version No: 8 Revision: 24.03.2014 Trade name: Coffeepure Tabs (Contd. of page 4) · Change in condition Melting point/Melting range: Not determined.
  • Page 33 Appendix | MSDS Schaerer Cleaning Tablets Page 6/8 Safety data sheet according to 1907/2006/EC, Article 31 Printing date: 24.03.2014 Version No: 8 Revision: 24.03.2014 Trade name: Coffeepure Tabs (Contd. of page 5) 15630-89-4 disodium carbonate, compound with hydrogenperoxide (2:3)
  • Page 34 Appendix | MSDS Schaerer Cleaning Tablets Page 7/8 Safety data sheet according to 1907/2006/EC, Article 31 Printing date: 24.03.2014 Version No: 8 Revision: 24.03.2014 Trade name: Coffeepure Tabs (Contd. of page 6) · European waste catalogue 20 01 29* detergents containing dangerous substances ·...
  • Page 35 Appendix | MSDS Schaerer Cleaning Tablets Page 8/8 Safety data sheet according to 1907/2006/EC, Article 31 Printing date: 24.03.2014 Version No: 8 Revision: 24.03.2014 Trade name: Coffeepure Tabs (Contd. of page 7) R36/38 Irritating to eyes and skin. Risk of serious damage to eyes.
  • Page 36 Appendix | MSDS Schaerer Cleaning Tablets User Manual | 05.2015 | v01 - 36 -...

  • Page 37: Msds Schaerer Steam Wand Cleaner

    Urnex Brands, Inc. 29 Harley Street, London, W1G 9QR, UK Tel. +44 020 7927 6881 Distributor Schaerer USA Corp 2900 Orange AVE. #102, Signal Hill, CA 90755 Tel +1.562.989.3004 Emergency Contact: 800-424-9300 (USA), 001-703-527-3887 (INTERNATIONAL COLLECT ACCEPTED) Date Prepared November 20, 2009 2.
  • Page 38 Appendix | MSDS Schaerer Steam Wand Cleaner MSDS: Schaerer™Milk Steam Wand Cleaner This MSDS was prepared in accordance to REACH 1907/2006/EC, Article 31 Protective Clothing: None required in normal use. When working with large quantities or in technical production applications gloves are recommended.
  • Page 39 MSDS: Schaerer™Milk Steam Wand Cleaner www.schaererusa.com Appendix | MSDS Schaerer Steam Wand Cleaner This MSDS was prepared in accordance to REACH 1907/2006/EC, Article 31 Harmful if swallowed. S-Sentences Keep out of the reach of children. In case of contact with eyes, rinse immediately with plenty of water and seek medical advice.
  • Page 40 www.schaererusa.com Notes Notes User Manual | 05.2015 | v01 - 40 -...
