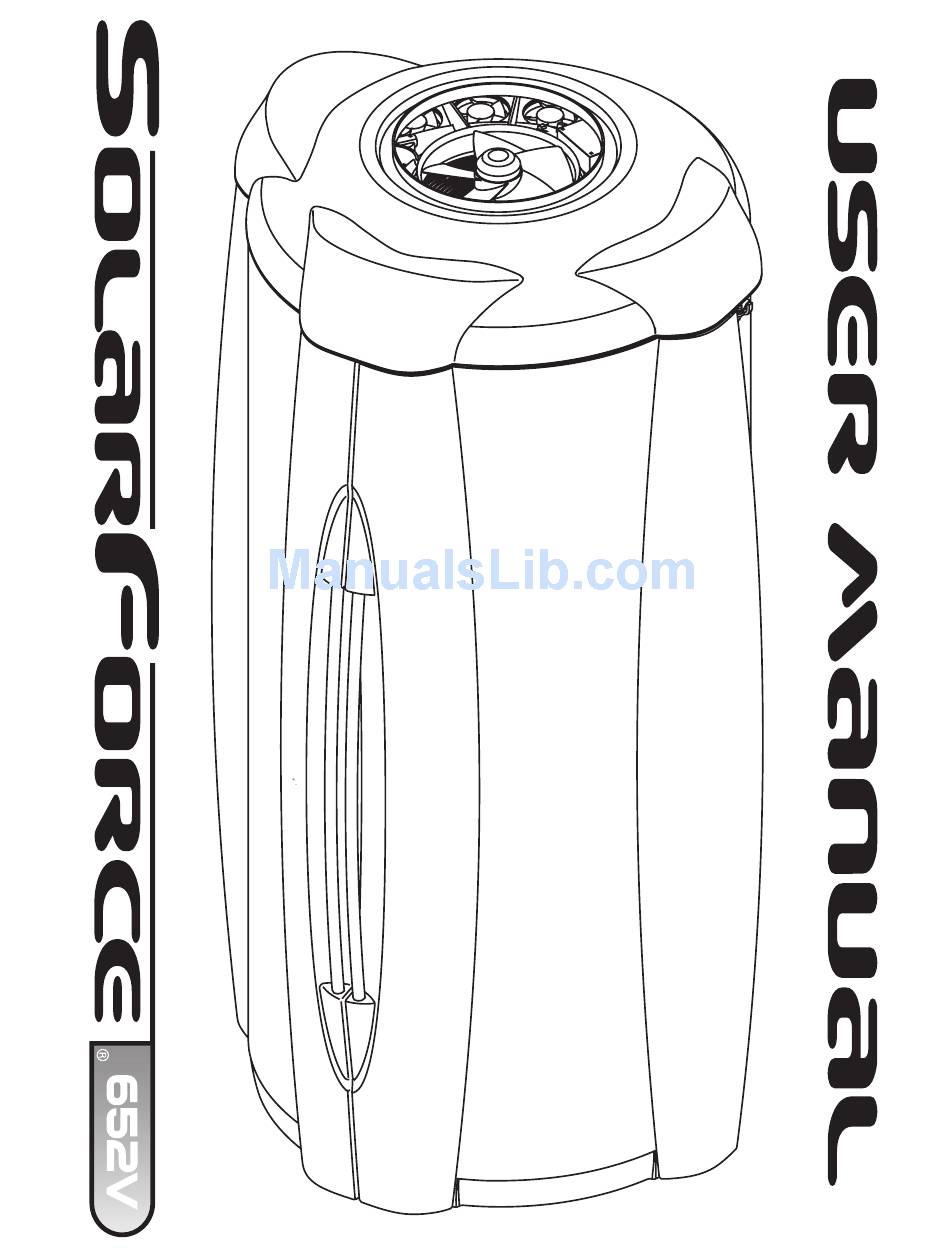

  • Page 1 25809-02A...

  • Page 3: Table Of Contents

    Introduction - 1 ongratulations on your purchase of this technologically advanced sun tanning unit. It has been designed to provide years of dependable service for you. Please read all the instructions in this booklet before installing and using the unit. Always be sure to observe all safety precautions.

  • Page 4: Safety Information

    21 CFR 1040.20. Other types of eyewear may not provide adequate protection. Failure to use protective eyewear may result in severe burns or other eye injury. If discomfort develops, discontinue use and consult a physician. ONLY THE FOLLOWING LAMPS HAVE BEEN CERTIFIED FOR USE IN THE SOLARFORCE 652V: BRONZING SUN™ Wolff® Model BS71-T12-160W VS-R BI-PIN DISCONNECT POWER BEFORE ATTEMPTING TO CLEAN, RELAMP, OR ENGAGE IN THE MAINTENANCE OF THIS PRODUCT.
  • Page 5 Renseignements sur la Sécurité - 3 DANGER Rayonnement ultraviolet. Veuillez suivre les instructions. Évitez une exposition excessive; tout comme pour les rayons du soleil, une exposition excessive peut causer des blessures aux yeux et à la peau et provoquer des réactions allergiques. Une exposition répétée peut causer le vieillissement prématuré de la peau et provo- quer le cancer de la peau.

  • Page 6: Installation

    4 - Pre-Installation Planning Pre-Installation Planning Before your booth is installed, you should observe the following considerations. • The SolarForce® 652V requires a dedicated DANGER circuit capable of providing 70A, 1-phase Shock hazard. service (2 wire plus ground) at 220VAC. This Disconnect power before unit must be hardwired directly to a junction servicing.

  • Page 7: Unpacking And Inspection

    Unpacking and Inspection - 5 Unpacking and Inspection Tools Needed The SolarForce® 652V arrives in eight boxes. For You will need the following tools to assemble the ease of assembly, after inspection leave everything tanning booth. in its original box until called for in the assembly instructions.

  • Page 8: Hardware Inventory

    6 - Hardware Inventory Hardware Inventory Make sure you have all of these items before beginning assembly. x 10 Bolt, 5/16”-18 x 1” Hex Key x 10 Washer, 5/16” flat Lower Handle Bracket Remote Control Bypass Plug x 12 Screw, #8-32 x 3/4” Module Strap Screw, #10 x 1”...

  • Page 9: Assembly Procedures

    Assembly Procedures - 7 Assembly Procedures Put the Base (found in box 7) in the general area you want the booth. Leave some space around the base to work. BACK FRONT...
  • Page 10 8 - Assembly Procedures Note on assembly: These instructions illustrate how to assemble the booth without removing the grills. However, you may find it easier to remove the grills before beginning. The Left Module is shown at right. Using the hex key (included in the hardware kit) turn the four quarter-turn latches on the grill to unlock it.
  • Page 11 Assembly Procedures - 9 Parts needed: Left Module (box 2) Stand the Left Module on the Base as shown. The tab on the module fits into the indentation in the base for easy positioning NOTE: Wiring deleted from illustration for clarity.
  • Page 12 10 - Assembly Procedures Parts needed: (5) 5/16-18 x 1” Hex-head bolts (5) 5/16” Flat washers Open the grill: Using the hex key (in hardware kit) turn the four latches on the grill to unlock it. Swing the grill open. Secure the Left Module to the Base with the five bolts and washers in the slotted holes.
  • Page 13 Assembly Procedures - 11 Parts needed: (1) Lower handle bracket (3) #8-32 x 3/4” Phillips pan-head thread cutting screws Locate the three holes in the bottom plate of the Left Module. Position the Lower Handle Bracket underneath the bottom plate and attach with the three screws as shown.
  • Page 14 12 - Assembly Procedures Parts needed: Right Module (box 1) Stand the Right Module on the Base as shown. NOTE: Wiring deleted from illustration for clarity.
  • Page 15 Assembly Procedures - 13 Parts needed: (5) 5/16-18 x 1” Hex-head bolts (5) 5/16” Flat washers Just like the Left Module, open the grill and secure the Right Module to the Base with the remaining five bolts and washers.
  • Page 16 14 - Assembly Procedures Parts needed: (1) Lower handle bracket (3) #8-32 x 3/4” Phillips screws Locate the three holes in the bottom plate of the Right Module. Position the Lower Handle Bracket underneath the bottom plate and attach with the three screws as shown.
  • Page 17 Assembly Procedures - 15 Parts needed: (1) Module Strap (2) #10 x 1” Phillips pan head screws Connect the two modules with the Module Strap, as shown. NOTE: Wiring deleted from illustration for clarity.
  • Page 18 16 - Assembly Procedures Parts needed: Control Extrusion (box 1) (2) #10 x 1” Phillips pan head screws (2) #10 x 1” slotted hex washer head screws Feed the cable from the Control Extrusion through the hole between the modules). Press the Control Extrusion into place and secure the top with the pan head screws.
  • Page 19 Assembly Procedures - 17 Parts needed: Right Door (box3) (2) Hinge bushings HINGE PIN HINGE BUSHING FRICTION TAB LOWER HINGE Place the Hinge Bushings into the hinge holes (top and bottom). Carefully lower the door hinge pins into the bushings, being careful not to bend the friction tabs.
  • Page 20 18 - Assembly Procedures Parts needed: Left Door (box 4) (2) Hinge bushings Place the Hinge Bushings into the hinge holes (top and bottom). Carefully lower the door hinge pins into the bushings, being careful not to bend the friction tabs. NOTE: Wiring deleted from illustration for clarity.
  • Page 21 Assembly Procedures - 19 Parts needed: Ceiling assembly (box 5) (6) #8-32 x 3/4” Phillips screws Lower the Ceiling assembly onto the top of the booth. Pass the wiring har- nesses (not shown) through the holes directly above each harness so no wires get pinched beneath the Ceiling.
  • Page 22 20 - Assembly Procedures Connect the wiring harnesses as shown. Match similarly colored harnesses and FROM CONTROL EXTRUSION plug them together firmly. Use care when plugging into the display board. DISPLAY BOARD...
  • Page 23 Assembly Procedures - 21 Parts needed: Dome (box 5) (4) #10 x 1” Phillips flat head screws Holding the Dome over the booth, hook the front of the Dome on the front of the Ceiling and lower the back into place.
  • Page 24 22 - Assembly Procedures Parts needed: (2) Handles (2) Handle pins The handles, although they look similar, are not the same. They will only fit properly one way. A slot is cut into the top of each handle that engages a tab inside the hole in the Ceiling assembly.
  • Page 25 Assembly Procedures - 23 Parts needed: Booth Floor (box 7) Place the Booth Floor on the Base. It locks in place with two quarter-turn latches, one on each side near the handles. Use the hex key to lock the floor in place.
  • Page 26 24 - Assembly Procedures Parts needed: Blowers (box 6) (4) 1/4-20 x 5/8” Phillips pan head bolts The Blower assemblies hook on the base and pivot into position (see detail below). Secure them in place with the bolts. Plug the cables from the booth into each Blower.

  • Page 27: Adjusting Hinges

    Adjusting Hinges - 25 Adjusting Hinges Parts needed: (4) Hinge locking pins The booth doors should close tightly, with an even seam between them. The hinges adjust to correct any door alignment problems. Loosen the lock nuts on the underside of a hinge (see photo) and adjust the door as needed.

  • Page 28: Electrical Connections

    26 - Electrical Connections Electrical Connections NOTE: Your unit is designed to accept an input from a remote control device. The remote con- trol is optional. If you plan on using a remote sys- On the back of the booth is a junction box. Have tem refer to Remote Connections.

  • Page 29: Remote Connections

    Remote Connections - 27 Remote Connections T-Max® Manager Remote System This system is ideal for multiple sunbed installa- tions. Simply connect the RJ-22 modular cable(s), Your tanning booth incorporates advanced circuit- described in the T-Max® Manager manual, into ry allowing it to connect and communicate with the remote port(s) located on the back of your most remote control systems.
  • Page 30 28 - Remote Connections T-Max® 1A and 3A Remote Systems In single sunbed installations, the T-Max® 1A and NOTE: A T-Max® 1A 3A can offer the same control as the T-Max® with a “master” chip Manager, eliminating the need for a Manager. If can be substituted you’re using a 1A in this manner, it must have a for a 3A in figure 2.

  • Page 31: Operation

    Operation - 29 Before You Tan Tanning Position Please note the following warnings and precau- For best results, follow all directions carefully. To tions before using your tanning booth. obtain a uniform tan, stand in the center of the booth and raise your hands. You may hold onto the interior handles wherever it feels comfortable.

  • Page 32: Using Your Booth

    30 - Using Your Booth Using Your Booth When connected to the T-Max® Manager or T-Max® 1A or 3A. WARNING Wear protective eyewear. Failure to may result in severe burns or longterm injury to the eyes. A Timer display - Displays remaining time and fan status.
  • Page 33 Using Your Booth - 31 Using Your Booth When used as a stand alone unit or when connected to a remote system using a control relay. WARNING Wear protective eyewear. Failure to may result in severe burns or longterm injury to the eyes. A Timer display - Displays remaining time and fan status.

  • Page 34: Care And Maintenance

    32 - Care and Maintenance Cleaning After Use Thorough Periodic Cleaning Introduction Clean and disinfect the grills, floor and handles The cooling fans draw air through the booth and after each use. Use a non-abrasive disinfectant over time will cause a dust buildup on the lamps cleaner.

  • Page 35: Lamp And Grill Maintenance

    Lamp and Grill Replacement - 33 Lamp and Grill Replacement Introduction To be assured of maximum tanning effectiveness, change lamps after approximately 600-800 hours of use. Tanning will continue after this time but at a slower rate. To ensure trouble-free operation of your booth, replace the lamp starters whenever the lamps are replaced.
  • Page 36 34 - Lamp and Grill Replacement Removing/Replacing Main Lamps After opening the grill, grasp a lamp at one end and at the middle and turn the lamp one quarter turn. Gently remove the lamp from its holders. Reinstall the lamp by inserting the pins located on the ends of the lamp into the slots on top of the lamp holders and turn the lamp a quarter turn.
  • Page 37 Lamp and Grill Replacement - 35 Replacing Entry Lamps Above the doors are two small fluorescent lamps to illuminate the inside of the booth when the tan- ning lamps are off. To access these lamps you must first remove the Dome. Follow these direc- tions carefully.

  • Page 38: Troubleshooting

    36 - Troubleshooting Problem Cause Solution Booth not tanning 1. Booth dirty 1. Clean booth, see Thorough Periodic Cleaning. 2. Low voltage 2. Ensure supply voltage is between 208 and 230V AC. 3. Lamps old 3. Replace lamps if lamp hours are greater than 800hrs.
  • Page 39 I frequently disconnect my A T-Max® Inline 4-Pin Connector is available sunbeds from the T-Max® from ETS, Inc. which connects the chain with- chain and interrupt the rest out a sunbed. of the units Timer display continues to 1.
  • Page 40 38 - Troubleshooting Problem Cause Solution My booth, connected to a T-Max® Manager, did not display a delay time but does indicate: 0:00 1. Remote device has 1. Set remote device. not been set 2. The booth has not 2. See Remote Connections. been connected to the remote system a tanning time and the...
  • Page 41 Notes - 39...
  • Page 42 40 - Notes...

  • Page 43: Limited Warranty

    Limited Lifetime Warranty, contact ETS, Inc. at 1-800-449-3605, and ask for the Technical Service Department. ETS, Inc. shall not be liable for loss of use, loss of time , inconvenience, rental or substitute products, loss of business, loss of income, or any other incidental or consequential damages.
  • Page 44 SolarForce® 652V Size (door open) Minimum Room Size 6’ x 6’ (1.8m x 1.8m) Weight approx. 900 lbs. (409 kg) Electrical - Voltage (AC) Amperage 55A 1-phase Outlet Booth hardwired Main Lamps 52 x BRONZING SUN™ 160W Ballasts 160W Body Cooling System 2 x high power blowers from base, overhead fan Speakers 2 x 25W (130W max) 2-way speakers...
