ETS SunDome 548V User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

29731-03A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SunDome 548V and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ETS SunDome 548V

Summary of Contents for ETS SunDome 548V

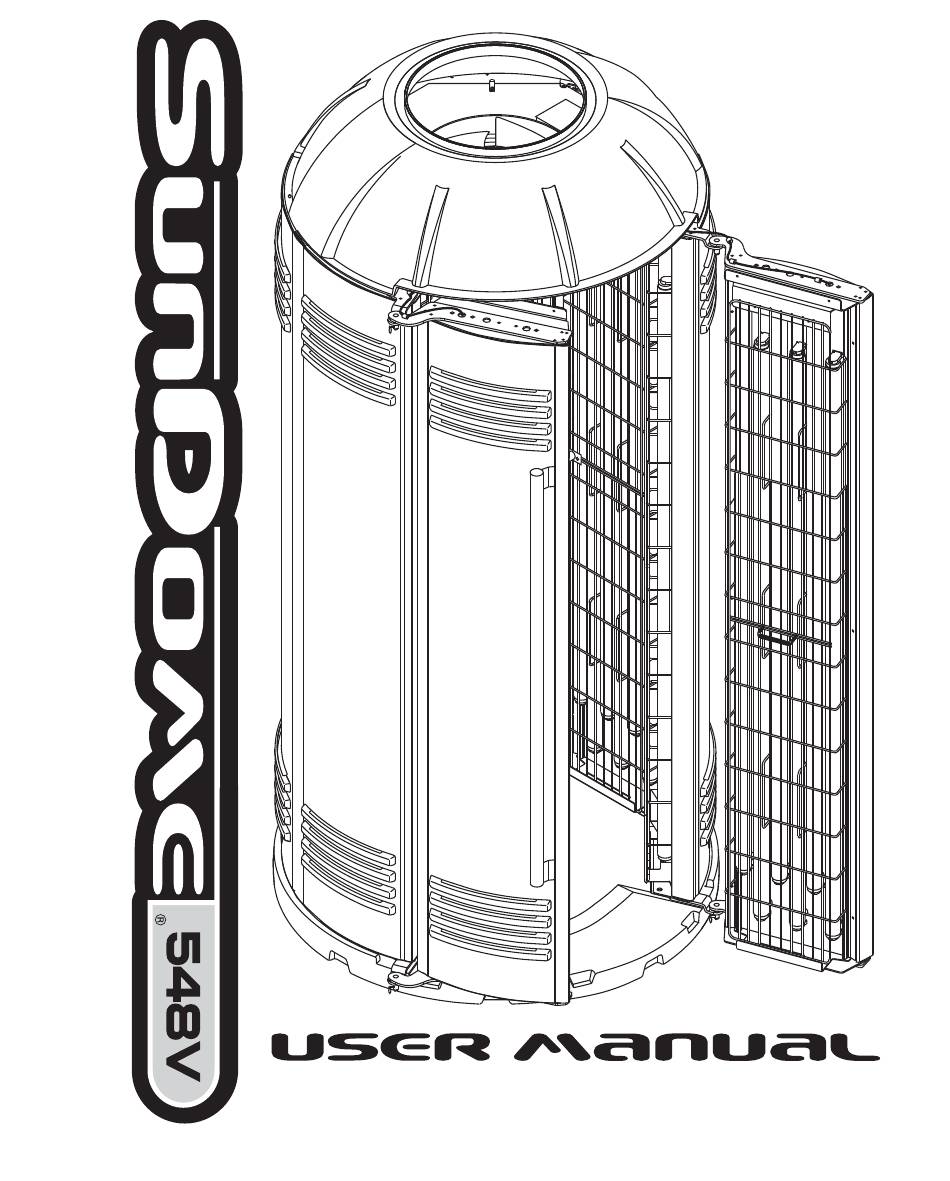

  • Page 1 29731-03A...
  • Page 2 (90) days following the purchase date. Your ETS Distributor (including ETS, LLC if purchased directly), also extends to you a two (2) year parts warranty on all T-Max® remote system components. External voltage transformers (buck-boosters) are covered by a one (1) year parts and labor warranty, provided you send back the defective transformer.

  • Page 3: Table Of Contents

    elcome Congratulations on your purchase of this technologically advanced sun tanning unit. It has been designed to provide years of dependable service for you. Please read all the instructions in this booklet before installing and using the unit. Always be sure to observe all safety precautions.
  • Page 4 afety Information LABELING NOTICE: Labels are affixed on all systems to inform the user of possible dangers. Regulations are stated in 21 CFR, Section 1040.20, and require that all products manufactured after September 8, 1986 which use sunlamps must display the following: DANGER Ultraviolet radiation.
  • Page 5 Renseignements sur la Sécurité DANGER Rayonnement ultraviolet. Veuillez suivre les instructions. Évitez une exposition excessive; tout comme pour les rayons du soleil, une exposition excessive peut causer des blessures aux yeux et à la peau et provoquer des réactions allergiques. Une exposition répétée peut causer le vieillissement prématuré de la peau et provoquer le cancer de la peau. PORTEZ DES LUNETTES PROTECTRICES: LE NON-RESPECT DE CETTE CONSIGNE DE SÉCURITÉ...

  • Page 6: Installation

    nstallation Unpacking and Inspection As you unpack your boxes you should find the following: • Pedestal (box 1) The SunDome® 548V arrives in seven • Control Module (box 2) boxes. For ease of assembly, after inspec- • Bag containing necessary assembly tion leave everything in its box until hardware, and safety goggles (box 2) called for in the assembly instructions.

  • Page 7: Pre-Installation Planning

    Installation - Pre-Installation Planning Pre-Installation Planning Before you begin to assemble your booth, you should observe the following consid- erations. WARNING CAUTION Shock hazard. Use of a voltage source above 230V Disconnect power before AC may prevent proper operation of servicing.

  • Page 8: Tools Required

    Installation - Tools Required Tools Required Hardware Inventory You will need the following tools to assemble your booth. Open the hardware bag and remove the hardware. Make sure you have the follow- ing items. 1/4-20 x 3/4” Hex Head Bolt Quantity - 9 1/4”...
  • Page 9 Installation - Hardware Inventory Hinge Locking Pin Additional hardware found in Box 7 Quantity - 4 #10-32 x 1/2” Screw Quantity - 4 Magnet Strike Plate #8-32 x 1/2” Screw Quantity - 2 Quantity - 4 Shim Washer #10 x 1/2” Screw Quantity - 4 Quantity - 4 #10 Flat Washer...

  • Page 10: Assembly Procedures

    Installation - Assembly Procedures Assembly Procedures Put the pedestal (found in box 1) in the general area you want the booth. Leave some space around the pedestal to work. FRONT...
  • Page 11 Installation - Assembly Procedures Parts needed: CONTROL MODULE Control Module (box 2) (with power cable on back) Left Module (box 3) Right Module (box 4) Remove these two screws and lift the grill from the unit. Repeat other grills. LEFT MODULE NOTE: Wiring has been deleted to show details.
  • Page 12 Installation - Assembly Procedures Parts needed: Control Module Left Module Right Module 9 - 1/4-20 x 3/4” Hex Head Bolts 9 - 1/4” Flat Washers Attach modules to pedestal with three bolts and washers each, as shown. Attach the Control Module (center module) first, then the other two.
  • Page 13 Installation - Assembly Procedures Parts needed: 2 - Joint Plates Remove these four 2 - Wire Clamps screws and secure the joint plate with them as shown at left. Secure one wire clamp to each joint plate. Joint Plate in place.
  • Page 14 Installation - Assembly Procedures Parts needed: 2- Inside Door Handles 4 - #10-32 x 1/2” Screws If not already done, you will need to remove the grills from both doors. Secure handles with screws through the double grid pattern on each door grill.
  • Page 15 Installation - Assembly Procedures Parts needed: Grills (removed earlier) 2 - Trim Profiles Reinstall the grills. Insert trim profiles into space between right and control module, and between left and control module. NOTE: Wiring has been deleted to show details.
  • Page 16 Installation - Assembly Procedures Parts needed: Timer Assembly (box 7) Attach the Timer Bracket to the unit, as shown, Timer Bracket using two #8-32 x 1/2” screws. Secure the Timer 4 - #8-32 x 3⁄4” Screws Box to the bracket with the same type screws, making sure the cables coming out the back of the Timer Box run over the bracket.
  • Page 17 Installation - Assembly Procedures Parts needed: Long Handles 8 - #10-32 x 1⁄2” Screws 4 - #10-32 Nuts The handles attach with two screws to the top of the right and left modules and with two screws with nuts through the double grill wire at the bottom, as shown.
  • Page 18 Installation - Assembly Procedures Parts needed: Insert bronze bushings Left Door (box 5) into hinge holes. Right Door (box 6) 4 - Hinge Bushings Insert door hinge 4 - Hinge Locking Pins post into bronze bushing. Install hinge locking pins in hole in all four hinge posts.
  • Page 19 Installation - Assembly Procedures Parts needed: 2 - Magnet Strike Plates Install magnet strike plates with two 4 - #10-32 x 1/2” Screws screws each. To achieve proper positioning, close the doors and make sure magnets at the top of the doors contact the magnet strike plates.
  • Page 20 Installation - Assembly Procedures There are six cables coming out of the top of the control unit (not counting the two connected to the Timer Assembly). Four have black, three hole female connectors. One has a white three hole female con- nector.
  • Page 21 Installation - Assembly Procedures Parts needed: Position the new body fan / speaker panel Body Fan / Speaker Panel (box 7) on top of the booth, with the curved edge 2 - Short “Z” brackets toward the door opening. There are four 2 - Tall “Z”...
  • Page 22 Installation - Assembly Procedures The two cables left loose earlier go to the Body Fan / Speaker Panel. Bring the cables through any wire clamps they pass and connect to the mating cables on the panel. White connector 6-pin connector...
  • Page 23 Installation - Assembly Procedures Parts needed: Dome (box 7) 4 - #10 x 1/2” screws 4 - #10 flat washers Secure the dome in place with the four screws, as shown. Be sure not to pinch any wires. NOTE: Wiring has been deleted to show details.

  • Page 24: Door Adjustment

    Installation - Door Adjustment Door Adjustment Electrical Connections The hinges on the doors are adjustable to At the rear of the booth is an armored allow precise alignment. A simple twist of power cable. Connect power cable as the hinge pin moves the door up or down. described in Pre-Installation Planning.

  • Page 25: Connecting To Provision Security

    Installation - Remote Connections Connecting to Provision Security PANEL Directly above the power cord is a small access panel This tanning bed comes equipped to connect GROMMET secured screws. directly to the Provision Security system utilized Remove the screws and by Anytime Fitness locations.

  • Page 26: Operation

    peration Before You Tan Exposure Times Please note the following warnings and pre- Follow the guidelines for skin type and cautions before using your tanning booth. exposure times as shown in the table below. Untanned persons should not tan on consecutive days during their first week •...

  • Page 27: Using Your Booth

    Operation - Using Your Booth Using Your Booth 1. Open the doors, step inside and close the doors fully. For best results, position your body in the center of the booth. 2. Put on your safety goggles. 3. Swipe your proximity key ring tag over the RF reader to the left of the timer box to activate a session.

  • Page 28: Care And Maintenance

    are and Maintenance Cleaning After Use Thorough Periodic Cleaning Clean and disinfect your tanning booth’s Introduction grills, handles and pedestal after each use. The cooling fans draw air through the unit Use a non-abrasive disinfectant cleaner. and over time will cause a dust buildup on Wipe the grills with a soft cloth dampened the lamps and reflectors.

  • Page 29: Hour Counter

    Care and Maintenance - Hour Counter Hour Counter Mechanical Inspection Your tanning booth has been built for years The SunDome incorporates an ingenious of service. To ensure trouble-free operation hour counter function into the timing cir- throughout its life, inspect the unit’s cuitry.

  • Page 30: Lamp And Grill Maintenance

    Care and Maintenance - Lamp and Grill Maintenance Lamp and Grill Maintenance Removing/Replacing Lamps After removing the metal grills, replace lamps as follows. Introduction To be assured of maximum tanning effective- Step 1 Grasp the lamp at one end and at ness, change lamps after approximately 600- the middle and turn the lamp one 800 hours of use.
  • Page 31 Notes...

  • Page 32: Troubleshooting

    2. Check for loose connections between the door and the booth. If you did not find the solution to your problem, contact the ETS Technical Service Department at 1-877-507-2582 for additional assistance.
  • Page 35 Parts List This is a list of parts which may be replaced by the consumer. Care should be taken when replacing anything related to electrical wiring. We recom- mend contacting a professional electrician. When calling for parts please have your model number ready (found on the silver serial label on the back of the unit near the power cord)
  • Page 36 SunDome® 548V Size Weight (Pounds) Recommended Room Size 6’ x 6’ Electrical - Voltage (AC) Amperage Recommended Min. Circuit Breaker (Amps) Outlet Hardwire Main Lamps BRONZING SUN™ PLUS 160W Ballasts 160W Body Cooling System 16” overhead fan Timer System Digital Max.
