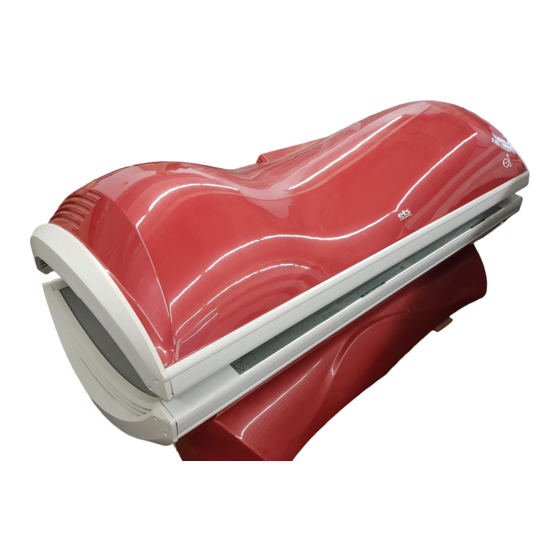

ETS e1 User Manual

Hide thumbs

Table Of Contents

u s e r m a n u a l

30596-02A

Table of Contents

Need help?

Do you have a question about the e1 and is the answer not in the manual?

Questions and answers

Summary of Contents for ETS e1

Page 1 u s e r m a n u a l 30596-02A...
Page 2: Warranty
All labor charges must be authorized by your directly), also extends to you a two (2) year parts warranty ETS Distributor prior to the start of repairs and must not on all T-Max® remote system components. External volt- exceed the established rates and time allotment policies age transformers (buck-boosters) are covered by a one (1) established by your ETS Distributor.
Page 3: Table Of Contents
A poorly ventilated room may cause the unit to become hot and cause dis- comfort to the user. CAUTION Proper assembly of your sunbed requires three people. Plan to have a couple of helpers assist you. e1 Assembly and User Manual - 3...
Page 4: Safety Information
THIS EQUIPMENT MUST BE EARTH GROUNDED. This product is in conformity with performance standards for sun lamp products under 21 CFR PART 88465 1040.20 and ANSI/UL Standard 482. Certiﬁ ed to CAN/CSA Standard C22.2 NO. 224. 4 - e1 Assembly and User Manual...
Page 5 Cet équipement doit être mis à la terre. Ce produit est conforme aux normes de rendement pour les lampes solaires dans le documents 21 CFR, partie 1040.20 , ANSI/UL 482 , CAN/CSA C22.2 N° 224. 88465 e1 Assembly and User Manual - 5...
Page 6: Unpacking And Inspection
Inspect these items, including the canopy #2 Phillips and bench, and make sure they are free from Screwdriver any visible damage. Report the extent of any damage to the transportation company. 7/16” Wrench 6 - e1 Assembly and User Manual...
Page 7: Pre-Installation Planning
See the back cover of this manual for power requirements. See page 16 for wiring instructions. CAUTION Use of a voltage source above 245V AC may prevent proper operation of the sunbed and could cause damage and void the warranty. e1 Assembly and User Manual - 7...
Page 8: Hardware Inventory
M10 Long Bronze Bushing Quantity 4 Quantity 2 #10 x 1/2” Screw, Centering Spring Quantity 4 Quantity 4 Safety Goggles Quantity 1 1/4-20 x 1/2” Machine Screw Quantity 8 1/4-20 Locknut Quantity 8 8 - e1 Assembly and User Manual...
Page 9: Assembly Procedures
Repeat for the other stand upright. Make sure the clevis forks point upwards as shown. BRIDGE PIN CLEVIS FORK CENTERING SPRING e1 Assembly and User Manual - 9...
Page 10 Make sure the clevis forks are pointed up and secure each stand upright to the rear of the bench pedestals using four 1/4-20 x 1/2” machine screws and four locknuts. LOCKNUT (others hidden) STAND UPRIGHT MACHINE SCREWS 10 - e1 Assembly and User Manual...
Page 11 ﬂ oating bearings to attach the canopy. Secure the clevis pins by inserting the straight portion of a bridge pin through the small hole in the end of the clevis pin. BEARING CANOPY ARM BRIDGE PIN CLEVIS PIN e1 Assembly and User Manual - 11...
Page 12 ﬁ nger ac- cess). Slide the gas springs down into the stand uprights, piston end up as shown, and twist the gas springs into the lower clevis forks until they are snug. 12 - e1 Assembly and User Manual...
Page 13 10mm clevis pins. Secure the clevis pins with the retaining rings. NOTE: When this assembly is complete, lift and lower the canopy a few times to lubricate the gas springs for optimum performance. e1 Assembly and User Manual - 13...
Page 14 Attach Cover Panels Put the gas spring cover panel in place and secure with two #10 x 1/2” screws in each end. 14 - e1 Assembly and User Manual...
Page 15 (body fan sold separately) Your sunbed is designed to accept a body cooling fan on the canopy endcap at the foot end. Follow the instructions that come with the body fan for installation. e1 Assembly and User Manual - 15...
Page 16: Electrical Connections
(3 wire plus ground) or single-phase circuit (2 wire plus ground). Follow the dia- gram at right for connection instructions. CONNECT TO CANOPY CONNECT TO BENCH JUNCTION BOX INCOMING POWER (CABLE NOT SUPPLIED) 16 - e1 Assembly and User Manual...
Page 17: Remote Connections
5 volts, attempting to connect it to any higher voltages will damage the sunbed as well as void your warranty. e1 Assembly and User Manual - 17...
Page 18 Manager and one G2 to a wireless ready tanning bed. The rest of the salon may be “daisy-chained” together and connected to the wireless equipped tanning bed, eliminating the need to wire the Manager to the tanning beds. 18 - e1 Assembly and User Manual...
Page 19 “1”, simply connect the RJ-22 modular cables, described in the T-Max® user’s guide, directly into either of the smaller ports located on the back of the bed and either port on the back of the T-Max® 3W. e1 Assembly and User Manual - 19...
Page 20 5 volts, attempting to connect it to any higher voltages will damage the sunbed as is achieved. well as void your warranty. Press the stop button to return to the normal display mode. 20 - e1 Assembly and User Manual...
Page 21: Operation
I Sensitive Skin (Burns easily and severely and does not tan.) NOT RECOMMENDED FOR TANNING II Light (Burns easily and severely and tans minimally.) III Normal (Burns moderately and tans average.) IV Dark (Burns minimally, tans easily and above average.) e1 Assembly and User Manual - 21...
Page 22 F Stop button - Interrupts tanning session. G Timer button - Begins tanning session. Timer display shows remaining time. If a lesser time is desired, press timer button until desired time is displayed. 22 - e1 Assembly and User Manual...
Page 23 The timer will indicate “..” as a off to aid in cooling the sunbed. reminder to clean the sunbed. After the sunbed is cleaned press the timer button and the display will return to “0”. e1 Assembly and User Manual - 23...
Page 24: Care And Maintenance
Disconnect power before removing Troubleshooting. any protective covers. • Inspect all wiring connections. Contact a servicer if any connections seem loose. • Inspect the acrylic. Broken, cracked or badly scratched acrylics should be im- mediately replaced. 24 - e1 Assembly and User Manual...
Page 25: Lamp And Acrylic Replacement
Model BSP 71-T12-100WR BI-PIN Heraeus E400 HPT, Philips Model HPA CAUTION 400/30s or CosmoTech Model 23045 Be careful. The edges of the acrylic shield (SolarMax™ IFT facial unit , if equipped) may be sharp. e1 Assembly and User Manual - 25...
Page 26 Gently close the face tanner glass cas- ing and lock it closed with the screws. Ensure that the screws ﬁ rmly secure the glass casing. RETAINING SCREWS 26 - e1 Assembly and User Manual...
Page 27: Troubleshooting
By holding the body fan button for 3 seconds the timer dis- “id”, I set my sunbed to play will brieﬂ y display three numbers; the installed timer software version, a factory set timer code and then the sun- bed’s “id” number. e1 Assembly and User Manual - 27...
Page 28 Timer display continues to 1. T-Max® Manager remote system has not yet been set. show a 0 after the timer but- 2. Sunbed address is not set correctly, see Remote Connec- ton is pressed tions. 28 - e1 Assembly and User Manual...
Page 29 “0” to “1” will allow the tanning bed to remember clients complain about los- how much time was left when power goes out and resume its session after power is restored. See Parameters. ing session time e1 Assembly and User Manual - 29...
Page 30 Notes: 30 - e1 Assembly and User Manual...
Page 31 † Fans are located at the back of the canopy and under the bench. Use a vacuum to clean. MAINTENANCE LOG What When What When What When B C D E 2/16/2011 example: e1 Assembly and User Manual - 31...
Page 32 Weight no-face (approximate) ... 338lbs (154kg) Main Lamps ........32 x 100W Weight 3-face (approximate) ..345lbs (157kg) Face Tanner Lamps (if equipped) ..3 x 400W Room Size ......9’ (2.7m) x 7’ (2.4m) Body Cooling (optional) ...230cfm Foot Fan Voltage ..........220 VAC Main Timer System .........
