ETS LEGEND 548 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

u s e r m a n u a l
30068-02A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LEGEND 548 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ETS LEGEND 548

Summary of Contents for ETS LEGEND 548

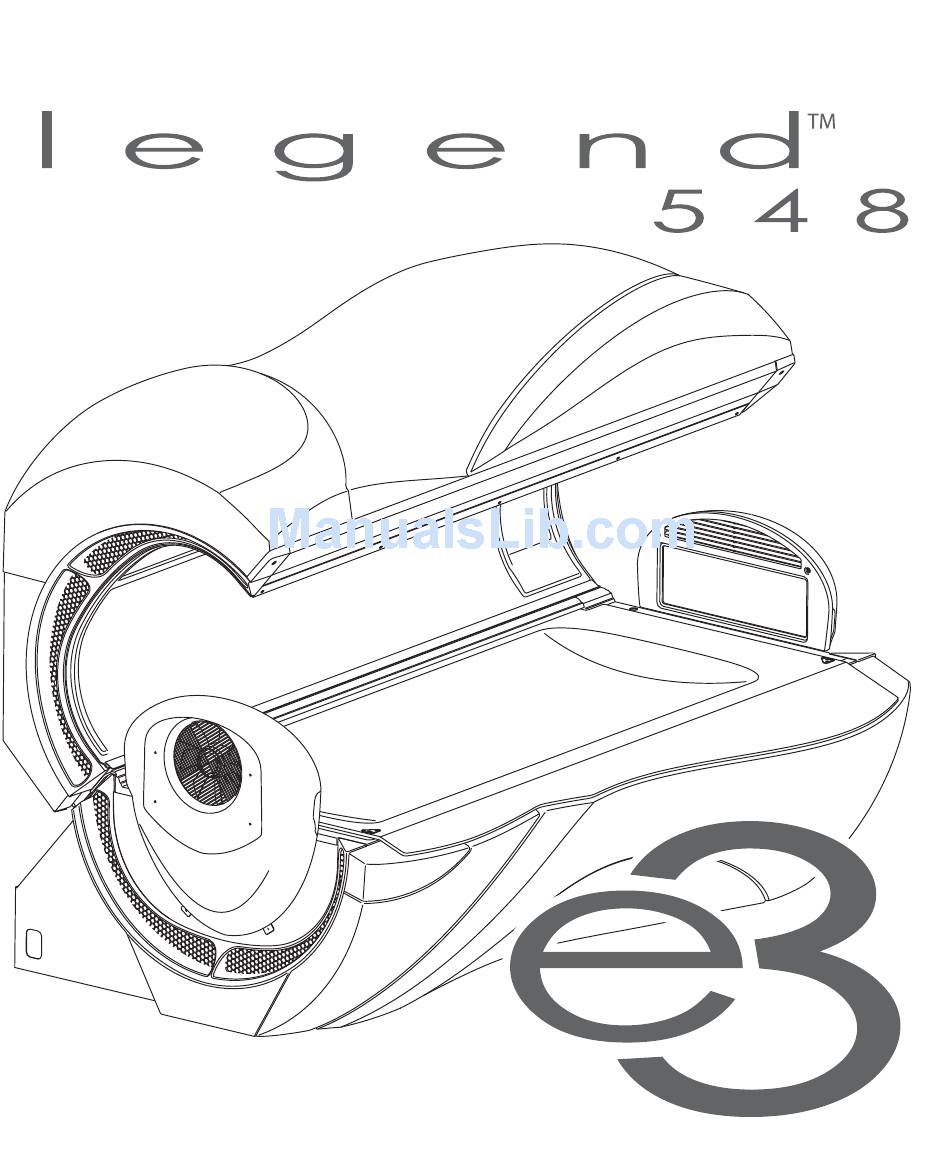

  • Page 1 u s e r m a n u a l 30068-02A...
  • Page 2 All labor charges must be authorized by your directly), also extends to you a two (2) year parts warranty ETS Distributor prior to the start of repairs and must not on all T-Max® remote system components. External volt- exceed the established rates and time allotment policies age transformers (buck-boosters) are covered by a one (1) established by your ETS Distributor.

  • Page 3: Table Of Contents

    Opening / Replacing Acrylics ....42 Removing/Replacing Fluorescent Lamps . 42 Replacement Lamps ....... 42 Removing/Replacing Face Tanner Lamp .. 43 Troubleshooting ........44 Updating Timer Software ......46 Parameters ..........46 Legend 548 Assembly and User Manual - 3...
  • Page 4 THIS EQUIPMENT MUST BE EARTH GROUNDED. This product is in conformity with performance standards for sun lamp products under 21 CFR PART 1040.20 and ANSI/UL Standard 482. Certifi ed to CAN/CSA Standard C22.2 NO. 224. 88465 4 - Legend 548 Assembly and User Manual...
  • Page 5 Cet équipement doit être mis à la terre. Ce produit est conforme aux normes de rendement pour les lampes solaires dans le documents 21 CFR, partie 1040.20 , ANSI/UL 482 , CAN/CSA C22.2 N° 224. 88465 Legend 548 Assembly and User Manual - 5...

  • Page 6: Unpacking And Inspection

    Excessively A poorly ventilated room may cause high voltage could cause damage and the unit to become hot and cause dis- void the warranty. comfort to the user. 6 - Legend 548 Assembly and User Manual...

  • Page 7: Disassembly

    fi nd you can move the unit without further disassembly, feel free to do so and begin the assembly process at a suitable step. Remember to save all hardware removed. It will all be used during reassembly. Shipping Pin Legend 548 Assembly and User Manual - 7...
  • Page 8 Loosen these screws and the front channel will swing down. The screws will remain in the channel. Swing the channel down farther to release the acrylic and lower the acrylic to clear the handle. 8 - Legend 548 Assembly and User Manual...
  • Page 9 Now tip the skirt forward and lift off the pegs at the bottom. As the skirt is removed you will fi nd a cable attached. This powers the Mood Mode ac- cent lighting. Disconnect this cable and set the skirt aside. Legend 548 Assembly and User Manual - 9...
  • Page 10 Do not pull on the wires. A few of the connectors have a wire tie around them. This wire tie is removable and does not need to be cut. 10 - Legend 548 Assembly and User Manual...
  • Page 11 24x1/2” screws at the bottom. Remove these screws, then lift the body fan assembly straight up and off the bed. Be careful of the power cable. The shoulder tanner comes off in the same manner. Legend 548 Assembly and User Manual - 11...
  • Page 12 The bench endcaps are held in place by (4) #10-24x1” screws each. The acrylic end supports are held in place by (5) #10-24x1” fl at head screws each. Remove both pieces from each end and set aside. 12 - Legend 548 Assembly and User Manual...
  • Page 13 The front cross member is held in place with (4) 5/16-18x1” hex socket bolts. Legend 548 Assembly and User Manual - 13...
  • Page 14 Carefully lift the lamp box out of the bench, being careful not to damage the plenum. Three #10x1/2” screws hold the fl oor pro- tector panel. Remove it and set aside. PLENUM 14 - Legend 548 Assembly and User Manual...
  • Page 15 Remove these screws. Carefully lift the cov- er from the bed. The rear corner covers are attached with (6) #10x1/2” screws each. Simply loosen these screws and the covers will slip off. Legend 548 Assembly and User Manual - 15...
  • Page 16 The canopy endcaps are attached with (4) #10-24x1” Phillips screws each. Remove both endcaps. 16 - Legend 548 Assembly and User Manual...
  • Page 17 Remove the (5) 3/8-20x1” hex bolts on each end of the canopy that attach it to the lift system. Make sure something or someone is holding the front of the canopy so it does not fall. Remove the canopy. Legend 548 Assembly and User Manual - 17...
  • Page 18 The rear cross member sits in cradles on each end and is secured in place with (8) #10x1/2” sheet metal screws. Remove the screws and slip the cross member out of the cradles. REAR ANGLE PANEL REAR CROSS MEMBER 18 - Legend 548 Assembly and User Manual...
  • Page 19 The back panel attaches to the pedestals with (8) #10x1/2” screws. Remove the screws and lift the panel from the pedestals. BACK PANEL SCREWS Legend 548 Assembly and User Manual - 19...

  • Page 20: Assembly

    Assembly Place the pedestals in the salon room ap- proximately where the bed will be. 20 - Legend 548 Assembly and User Manual...
  • Page 21 Phillips sheet metal screws on each end. The rear angle cover attaches between the rear panel and rear cross member with (16) #10x1/2” screws along the angled fl anges. ANGLE COVER REAR CROSS MEMBER REAR PANEL Legend 548 Assembly and User Manual - 21...
  • Page 22 Slide the canopy frame in place in the ped- estal cradles, as shown, and fasten with (5) 3/8-20x1” hex bolts on each cradle. 22 - Legend 548 Assembly and User Manual...
  • Page 23 Attach the canopy endcaps with (4) #10- 24x1” Phillips screws in each. Legend 548 Assembly and User Manual - 23...
  • Page 24 As with the access panel screws, if you re- tightened the screws for the rear corner cov- ers, loosen them now. Slip the rear corner covers into place and tighten the screws to secure them. 24 - Legend 548 Assembly and User Manual...
  • Page 25 (3) #10x1/2” screws. Slide the bench lamp box into place. Be careful of the fan plenum on the underside of the lamp box. Legend 548 Assembly and User Manual - 25...
  • Page 26 Install the front cross member using (2) 5/16- 18x1” hex socket bolts in each end. 26 - Legend 548 Assembly and User Manual...
  • Page 27 Install the bench endcaps with (4) #10-24x1” Phillips screws each. Install the bench acrylic supports with (5) #10-24x1” fl at head screws each. Legend 548 Assembly and User Manual - 27...
  • Page 28 Then engage the hanging clips and fi nally, secure with (2) #10-24x1/2” screws in the bottom mounting fl anges. The shoulder tanner installs in the same manner. 28 - Legend 548 Assembly and User Manual...
  • Page 29 Red, Green, Blue, Yellow Terminal block on skirt frame Remote White From timer box to remote board on back panel Mp3 jack Black Cord across front of lamp box to head pedestal Legend 548 Assembly and User Manual - 29...
  • Page 30 Slip the “hooks” at the bottom corners of the skirt over the pegs on the pedestals and swing the skirt up. Secure with the 4 fl at head screws across the top. 30 - Legend 548 Assembly and User Manual...
  • Page 31 Plug the wiring harness from the exciters to the harness in the bed. Swing the acrylic closed and lock the front edge by swinging the front channel closed and secure the 5 screws. Legend 548 Assembly and User Manual - 31...

  • Page 32: Electrical Connections

    NOTE: Not shown in the diagram above are three thin wires, a red, black and blue one. Do not move these thin wires. Only move the thick- er blue wires with colored stripes. 32 - Legend 548 Assembly and User Manual...

  • Page 33: Audio

    “MUSIC” button on the keypad re- For more musical options, including DMX peatedly. The display will show which music control, FM tuner and voice assist, contact source is playing. an ETS representative for upgrade options. Legend 548 Assembly and User Manual - 33...

  • Page 34: Remote Connections

    5 volts, attempting to connect it to any higher voltages will damage the sunbed as well as void your warranty. 34 - Legend 548 Assembly and User Manual...
  • Page 35 The rest of the salon may be “daisy- chained” together and connected to the wireless equipped tanning bed, eliminating the need to wire the Manager to the tanning beds. Legend 548 Assembly and User Manual - 35...
  • Page 36 T-Max® user’s guide, directly into either of the smaller ports located on the back of the bed and either port on the back of the T-Max® 3W. 36 - Legend 548 Assembly and User Manual...
  • Page 37 5 volts, attempting to connect it to any higher voltages will damage the sunbed as well as void your warranty. Legend 548 Assembly and User Manual - 37...

  • Page 38: Operation

    I Sensitive Skin (Burns easily and severely and does not tan.) NOT RECOMMENDED FOR TANNING II Light (Burns easily and severely and tans minimally.) III Normal (Burns moderately and tans average.) IV Dark (Burns minimally, tans easily and above average.) 38 - Legend 548 Assembly and User Manual...

  • Page 39: The Keypad

    G MUSIC - Press to enter music control mode. Display will change to show current music option. Press repeatedly to change the music option. H VOICE - Press to disable voice assist (if equipped). Press again to enable voice assist. Legend 548 Assembly and User Manual - 39...

  • Page 40: The Tanning Session

    “DRTY” as a reminder to clean After cool-down the timer display re- the sunbed. After the sunbed is cleaned turns to “0”. press the START/TIME button and the display will return to “0”. 40 - Legend 548 Assembly and User Manual...

  • Page 41: Care And Maintenance

    Inspect all wiring connections. Contact a servicer if any connections seem loose. • Inspect the AC power cord and its con- nections. • Inspect the acrylic. Broken, cracked or badly scratched acrylics should be im- mediately replaced. Legend 548 Assembly and User Manual - 41...

  • Page 42: Opening / Replacing Acrylics

    UV light. Acrylics We recommend using the lamps specifi ed sold by ETS have been life tested to ensure below. Use of uncertifi ed lamps is a viola- proper transmission throughout their useful tion of Federal regulations and will void life.

  • Page 43: Removing/Replacing Face Tanner Lamp

    Finger oils will greatly reduce the lamp’s operational life. Slide the face tanner glass into the bracket attached to the bed and lock it in place with the other bracket and two screws. Legend 548 Assembly and User Manual - 43...
  • Page 44 Timer display continues to 1. T-Max® Manager remote system has not yet been set. show a 0 after the timer but- 2. Sunbed address is not set correctly, see Remote Connec- ton is pressed tions. 44 - Legend 548 Assembly and User Manual...
  • Page 45 “0” to “1” will allow the tanning bed to remember clients complain about los- how much time was left when power goes out and resume its session after power is restored. See Parameters. ing session time Legend 548 Assembly and User Manual - 45...

  • Page 46: Updating Timer Software

    In the event you receive an email contain- ing an update fi le, the email will contain full instructions on this procedure as well as the verifi cation process to make sure the update was successful. 46 - Legend 548 Assembly and User Manual...
  • Page 47 FM Preset 3 (example - set to 923 for radio station FM 92.3) P 84 FM Preset 4 (example - set to 923 for radio station FM 92.3) P 85 FM Preset 5 (example - set to 923 for radio station FM 92.3) Legend 548 Assembly and User Manual - 47...
  • Page 48 Weight (approximate) ....924lbs (420kg) Main Lamps ........48 x 180W Room Size ......9’ (2.7m) x 9’ (2.7m) Face Tanner Lamps ......4 x 500W Voltage ..........230 VAC Shoulder Tanner ........8 x 25W Amperage ..........1P - 43A Body Cooling ......1100cfm Foot Fan ............3P - 25A Main Timer System .........
