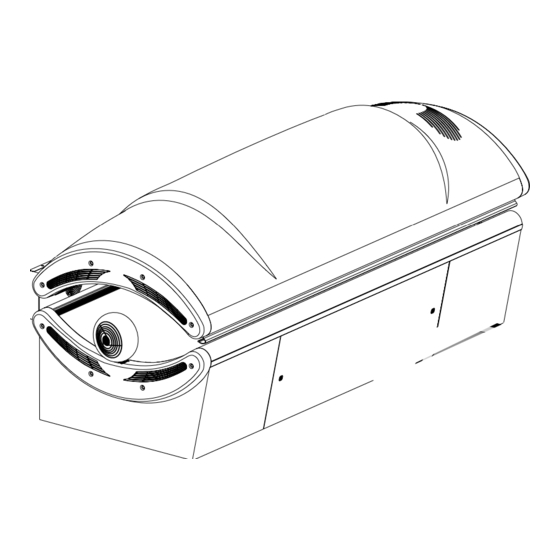

Summary of Contents for ETS SunStar 332

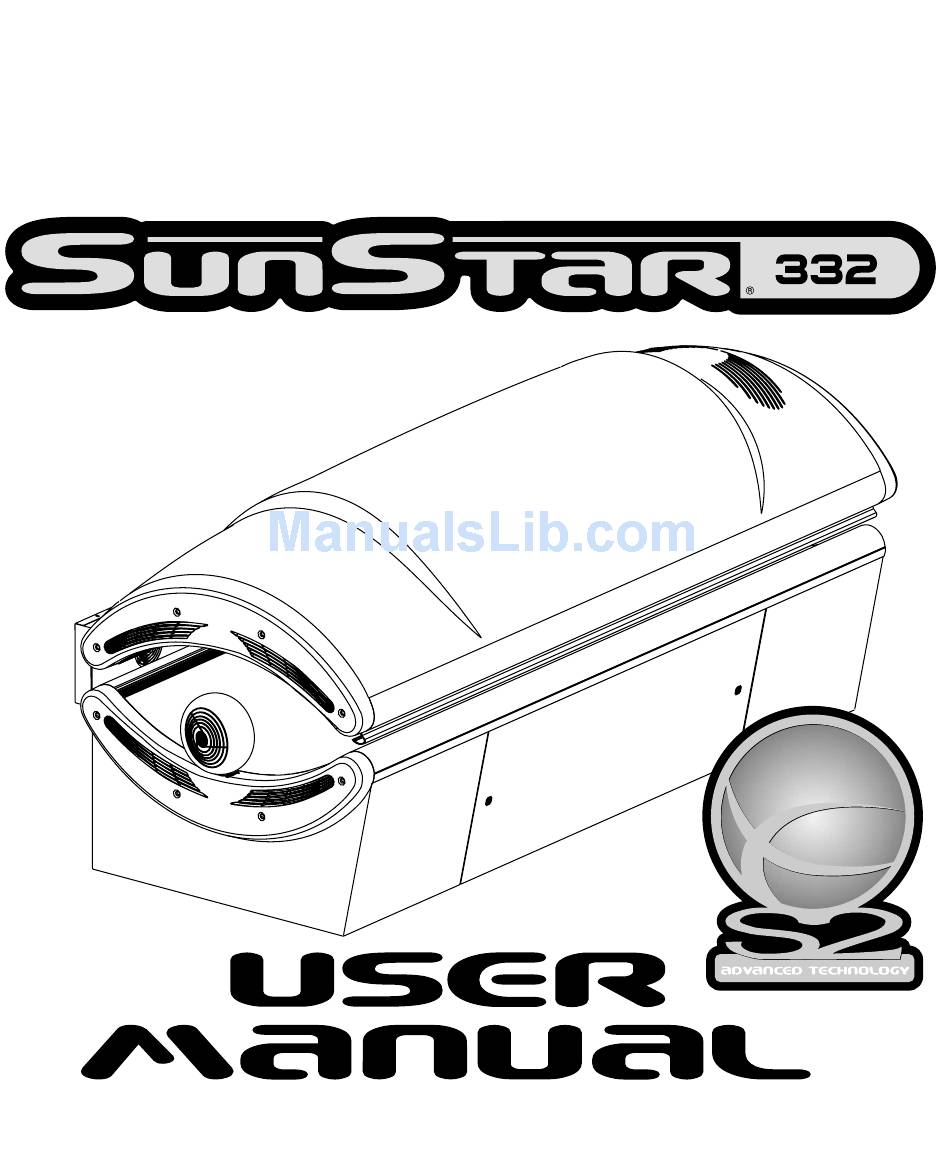

- Page 1 26868-01A...
- Page 2 All warranty service must be performed by an authorized service person. All labor charges must be authorized by your ETS Distributor prior to the start of repairs and must not exceed the established rates and time allotment policies established by your ETS Distributor. If your tanning unit must be returned for service, all freight charges shall be at your expense.
-
Page 3: Table Of Contents
elcome Congratulations on your purchase of this technologically advanced sun tanning unit. It has been designed to provide years of dependable service for you. Please read all the instructions in this booklet before installing and using the unit. Always be sure to observe all safety precautions. -
Page 4: Safety Information
afety Information LABELING NOTICE: Labels are affixed on all systems to inform the user of possible dangers. Regulations are stated in 21 CFR, Section 1040.20, and require that all products manufactured after September 8, 1986 which use sunlamps must display the following: DANGER Ultraviolet radiation. - Page 5 Renseignements sur la Sécurité DANGER Rayonnement ultraviolet. Veuillez suivre les instructions. Évitez une exposition excessive. Tout comme pour les rayons du soleil, une exposition excessive peut causer des blessures aux yeux et à la peau et provoquer des réac- tions allergiques. Une exposition répétée peut causer le vieillissement prématuré de la peau et provoquer le cancer de la peau. PORTEZ DES LUNETTES PROTECTRICES: LE NON-RESPECT DE CETTE CONSIGNE DE SÉCURITÉ...
-
Page 6: Installation
nstallation Unpacking and Inspection After unpacking the unit, check to make sure you have received the following: • Canopy unit Your sunbed comes in two cardboard car- • Bench unit tons, one for the canopy and one for the • Ballast drawer bench and ballast tray. -
Page 7: Pre-Installation Planning
Installation - Pre-Installation Planning Pre-Installation Planning Before you begin to assemble your sunbed, you should observe the following consid- erations. WARNING CAUTION Shock hazard. Use of a voltage source above 230V AC may prevent proper operation of Disconnect power before servicing. -
Page 8: Tools Required
Installation - Tools Required Tools Required You will need the following tools to assemble your sunbed. Utility Knife #2 Phillips Screwdriver... -
Page 9: Hardware Inventory
Installation - Hardware Inventory Hardware Inventory Nylon Floating Bearing Quantity 4 Use the utility knife to cut open the hard- ware bag. Remove the hardware. In addi- tion to some touch-up paint, a phone type Hinge Pin, (RJ-11) cable and pillow, make sure you 5/16”... -
Page 10: Assembly Procedures
Installation - Assembly Procedures Assembly Procedures Stand Assembly 1. Place the bench unit approximately where it will be when assembled. Leave some room behind it to work. 2. Slide the ballast drawer under the bench, as shown, with the cables toward the back. - Page 11 Installation - Assembly Procedures Install Canopy 1. Lay something across the bench, such as some cardboard or a blanket, to protect the units and place the canopy on the bench with the canopy hinge arms toward the back. Once again, do not use the canopy plastic endcaps to lift the unit.
- Page 12 Installation - Assembly Procedures 2. Insert the Nylon Floating Bearings into the canopy hinge arms and carefully lower the hinge arms into the bench uprights. 3. Secure the arms in place with the Hinge Pins and Hinge Pin Locking Clips. Bench Upright...
- Page 13 Installation - Assembly Procedures Install Gas Springs 1. Screw the upper Clevis Forks onto the Gas Springs, piston end up as shown. 2. Have a helper hold the canopy in its fully open position. 3. The lower clevis forks are already installed.
- Page 14 Installation - Assembly Procedures Attach Gas Springs 1. With the canopy still raised, slip the Bronze Bushings into the hole in the clevis brackets on the underside of the canopy mounting arms. 2. Line up both Clevis Forks and careful- Clevis Bracket ly lower the canopy to engage the Clevis Forks.
- Page 15 Installation - Assembly Procedures Install Endcaps NOTE: This unit comes with a foot end body fan. Instructions for installing the fan are included with the body fan kit. Follow those instructions to install the body fan. Put the head end endcap (the one without slots on top) in place and secure with two #10 x 1/2”...
-
Page 16: Electrical Connections
Installation - Electrical Connections Electrical Connections Helpful Hint: Line up the plug with the proper receptacle and push in. Apply At the rear of the sunbed, connect the two pressure to the plug and twist the locking canopy power cords and two bench power ring counter-clockwise until you feel the cords from the ballast tray to their respective plug click into place. -
Page 17: Final Assembly
Installation - Final Assembly Final Assembly Make sure the air filter is in place on top of the ballast drawer. It simply sits on the drawer, over the air slots, and is held in place by airflow when the unit is running. The arrow on the filter should point down. -
Page 18: Remote Connections
Installation - Remote Connections Remote Connections You will notice some wire clamps along the side of the fan housing under the bench. These are for the remote cables to Your sunbed incorporates advanced cir- keep them out from under the ballast cuitry allowing it to connect and com- drawer when rolling the drawer in and municate with most remote control sys-... - Page 19 Installation - Remote Connections T-Max® Products CAUTION The T-Max® remote systems offer the ultimate The remote connection is not designed to supply or accept high voltage, nor can it provide power in sunbed control, while allowing the tanner to an external timer. The sunbed’s remote inter- easy straightforward operation.
- Page 20 Installation - Remote Connections T-Max® 1A and 3A Remote Systems Setting the address manually In single sunbed installations, the T-Max® 1A Before connecting your sunbed to the T-Max® and 3A can offer the same control as the T- Manager or T-Max® 1A or 3A, the address of Max®...
- Page 21 Installation - Remote Connections Remote systems using a Control Relay Most non-T-Max® remote systems control the sunbed by the use of a relay. The relay oper- ates the sunbed by connecting and discon- necting a pair of wires leading from the sunbed.
-
Page 22: Operation
peration Before You Tan DANGER Some medication may increase your sensi- tivity to ultraviolet light. It is recommended Before using your sunbed, please note the that you consult a physician before using following important precautions. this sunbed if taking any medication or if you suspect that your skin might be especially •... -
Page 23: Using Your Sunbed
Operation - Using Your Sunbed Using Your Sunbed A Face tanner control (Operation as a stand-alone unit or connected to - Turns face tanners a remote system using a control relay. If using T- on and off during use. (Units equipped Max®... - Page 24 Operation - Using Your Sunbed (Operation while connected to a T-Max® remote system. If using other remotes or no remote sys- tem, see previous page.) 1. Lift the canopy, lie down on the bench (face up), lower the canopy using the canopy handle.
-
Page 25: Care And Maintenance
are and Maintenance Cleaning After Use Step 2 With a soft cloth, wipe the entire length of each lamp to remove any film buildup. Clean and disinfect your tanning bed’s Step 3 Clean both sides of the acrylic bench and canopy after each use. Use a shields with a non-ammonia dis- non-abrasive disinfectant cleaner that does infectant cleaner. -
Page 26: Lamp And Acrylic Replacement
Care and Maintenance - Lamp and Acrylic Replacement Lamp and Acrylic Replacement Opening/Replacing Acrylic Shields The acrylic shields are secured in place by turn latches along the front edge. Use a Introduction flat-bladed screwdriver to turn the latches To be assured of maximum tanning effec- a quarter turn to open the acrylic. - Page 27 Acrylics vary greatly over time in their the lamp holders and turn the ability to effectively transmit UV light. lamp a quarter turn. It should Acrylics sold by ETS have been life tested click in place. to ensure proper transmission throughout their useful life.
- Page 28 Care and Maintenance - Lamp and Acrylic Replacement Removing/Replacing Face Tanner Note! Never take hold of the lamp such Lamp that your fingers are in contact with the lamp glass. Finger oils will greatly reduce After removing the canopy acrylic shield, the lamp’s operational life.
- Page 29 roubleshooting Problem Solution Sunbed not tanning 1. Clean sunbed, see Thorough Periodic Cleaning. 2. Ensure supply voltage is between 208 and 230V AC. 3. Replace lamps if lamp hours are greater than 800hrs. 4. Replace acrylic. Lamps fail to light and timer dis- 1.
-
Page 30: Troubleshooting
Troubleshooting Problem Solution Timer display is indicating Er 91 Timer software error. Disconnect and reapply power to the unit. Timer display is indicating Er 92 Current sensor indicating unit is off when it should be on. Contact servicer. Timer display is indicating Er 93 Current sensor indicating unit is on when it should be off. - Page 31 Troubleshooting Problem Solution My bed is connected to a T-Max® You have probably attempted to connect your sunbed to the remote system but I am having remote system already. Disconnect the remote plug(s) from the trouble getting into “id” mode ports at the back of the sunbed, wait 90 seconds and try again.
- Page 33 Ballast Tray...
- Page 34 Parts List Hardware Kit, Complete* Hardware Kit, Assembly* This is a list of parts which may be replaced by the Hour Counter* consumer. Care should be taken when replacing Ignitor anything related to electrical wiring. We recom- mend contacting a professional electrician. When Label, English Warnings calling for parts, first state your bed model as P- Label, French Warnings...
- Page 35 WHEN What to do After each use Monthly 400-500hrs 800-1000hrs A. Clean/Disinfect Interior Surfaces* B. Clean Lamps* C. Clean Reflectors* D. Clean Exterior E. Check/Clean Fans† F. Change Lamps and Starters** H. Check Fasteners (nuts, bolts, etc.) I. Check Power Cords* J.
- Page 36 332ST 3F Size Weight (Pounds) Minimum Room Size 6’ x 8’-3” Recommended Room Size 7’ x 9’ Electrical - Voltage (AC) Amperage Circuit Breaker (Recommended min.) Outlet Hardwire Main Lamps DARK TAN™ PLUS Ballasts 100W Face Tanner SolarMax™ IFT FT Ballasts 400W Body Cooling System Full side fan panel...
