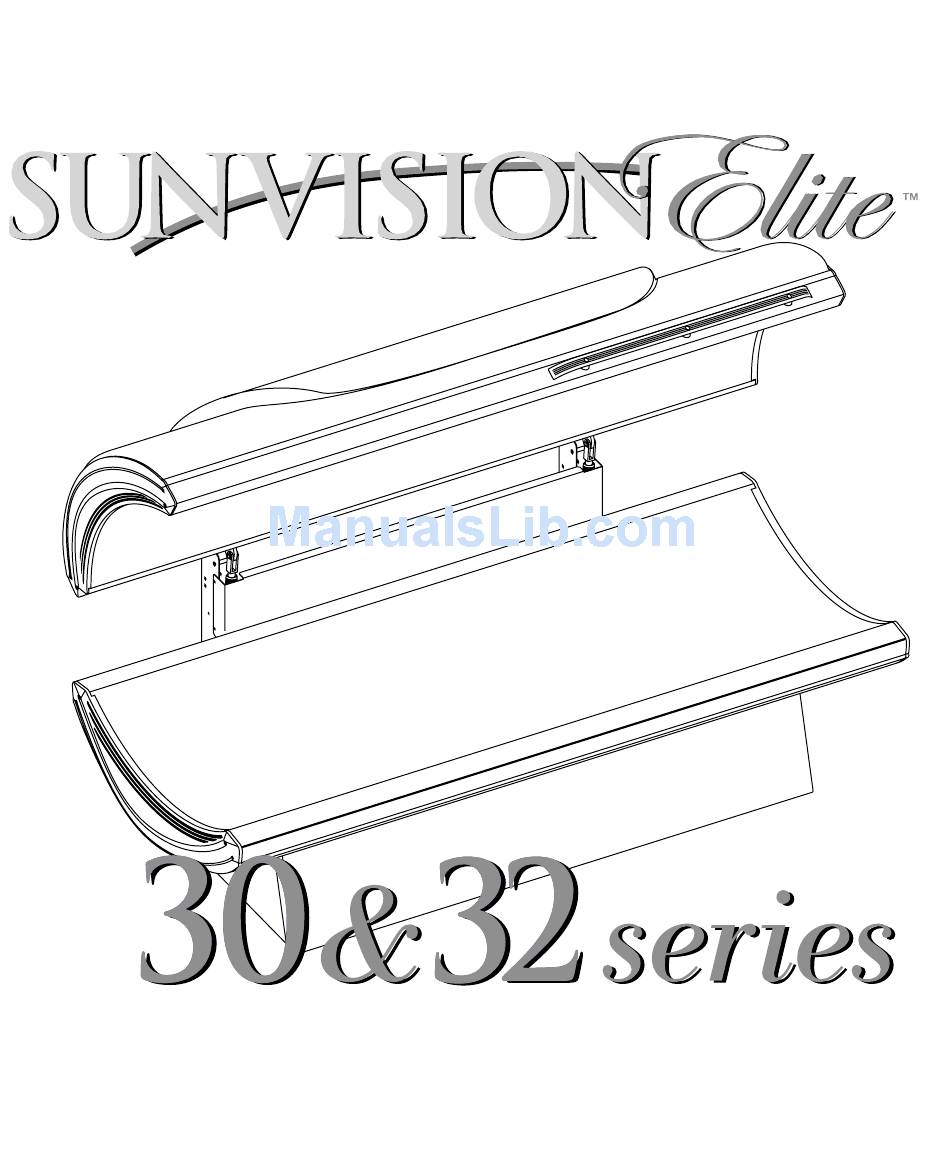

Page 1: User Manual
USER MANUAL 27964-01A... - Page 2 Your ETS Distributor (including ETS, LLC if purchased directly), through a manufacturer’s warranty, warrants your tanning unit to be free of structural defects in material and workmanship, under normal use, for its lifetime. Your ETS Distributor will, at its discretion, repair any structural defect which materially affects the performance of the tanning unit, or replace the tanning unit.
-
Page 3: Table Of Contents
elcome Congratulations on your purchase of this technologically advanced sun tanning unit. It has been designed to provide years of dependable service. Please read all the instructions in this booklet before installing and using the unit. Always be sure to observe all safety precautions. -
Page 4: Safety Information
Velocity® Wolff® Model VEL 71-T12-100W Heraeus E400 HPT, Philips Model HPA 400/30s or CosmoTech Model 23045 (SolarMax™ IFT facial unit : 30 3F , 32 3F) DISCONNECT POWER BEFORE ATTEMPTING TO CLEAN, RELAMP, OR ENGAGE IN THE MAINTENANCE OF THIS PRODUCT. - Page 5 Velocity® Wolff® Modèle VEL 71-T12-100W Heraeus E400 HPT, Philips Modèle HPA 400/30s ou CosmoTech Modèle 23045 (unité faciale : 30 3F , 32 3F) Débrancher l’alimentation électrique avant de nettoyer l’appareil , d’en faire l’entretien ou de changer les lampes.
-
Page 6: Installation
nstallation Unpacking and Inspection Your sunbed comes in two cardboard car- tons, one for the bench and one for the canopy. Open the cartons and remove the bench and canopy as follows. The bench and canopy are each wrapped in plastic. Pull back the plastic and, with a helper, grasp the bench and pull it from the carton bottom, leaving the plastic wrap and the carton packaging. -
Page 7: Pre-Installation Planning
Pre-Installation Planning Before you begin to assemble your sunbed, you should observe the following consid- erations. WARNING Shock hazard. Disconnect power before servicing. • The SUNVISION Elite™ 30 and 32 series require a dedicated circuit capable of providing 30 Amp ser- vice at 220VAC. -
Page 8: Hardware Inventory
Installation - Hardware Inventory Hardware Inventory Use the utility knife to cut open the hard- ware bag. Remove the hardware. Make sure you have the following items. Clevis Pin 3/8” x 2 1/64” Quantity 2 Bridge Pin Quantity 4 Clevis Fork, M10 Long Quantity 4 Centering Spring... -
Page 9: Assembly Procedures
Assembly Procedures Lower Clevis Fork Assembly 1. Insert the larger clevis pin (3/8” x 2 1/64”) through the hole directly below the large hole in one of the stand uprights, as shown. 2. Slide a centering spring, a clevis fork and then another centering spring onto the clevis pin and insert the pin the... - Page 10 Installation - Assembly Procedures Stand Upright Assembly 1. Place the bench approximately where it will remain, leaving room to work behind it. 2. Make sure the clevis forks are pointed up and secure each stand upright to the rear of the bench pedestals using four 1/4-20 x 1/2”...
- Page 11 Canopy Installation 1. Place two nylon floating bearings into each canopy arm. 2. Holding the canopy over the bench, with the canopy arms inside the stand uprights, insert clevis pins (5/16” x 2 1/32”) through the uprights and nylon floating bearings to attach the canopy. 3.
- Page 12 Installation - Assembly Procedures Install Gas Springs 1. Have a helper hold the canopy in its fully open position. 2. Make sure the threaded holes in the lower clevis forks face up (the large holes above the clevis forks allow fin- ger access).
- Page 13 Attach Gas Springs 1. With the canopy still raised, slip the bronze bushings into the hole in the clevis brackets on the underside of the canopy arms. 2. Line up both clevis forks and carefully lower the canopy to engage the clevis forks.
- Page 14 Installation - Assembly Procedures Attach Cover Panels 1. Put the gas spring cover panel in place and secure with two blue-headed #10 x 1/2” screws in each end. The skirt installs in the same way.
- Page 15 Installation - Assembly Procedures Attaching Handle to Canopy 1. Install the handle by inserting the three #10 x 1” Phillips head screws through the handle and into the predrilled holes on the canopy.
- Page 16 Installation - Assembly Procedures Body Fan Assembly (body fan sold separately) WARNING Shock hazard. Be sure power is disconnected before installing body fan. Your sunbed is designed to accept a body cooling fan on the canopy endcap at the foot end. Follow the instructions that come with the body fan for installation.
-
Page 17: Electrical Connections
Electrical Connections At the rear of the bed, insert canopy plug (A) into bench socket (B). Connect power cord (C) as described in Pre-Installation Planning. Again, a professional electrician is recommended. The Remote Control Bypass plug is already installed in one of the remote control ports as shown. -
Page 18: Remote Connections
Installation - Remote Connections Remote Connections Your sunbed incorporates advanced circuitry allowing it to connect and communicate with most remote control systems. If a remote sys- tem is to be used, first determine whether the remote system is a T-Max® System or a stan- dard remote system operating with a control relay. - Page 19 Installation - Remote Connections Scenario 1 - T-Max® Manager Series with Complete Wireless Connect one AP-900 (with Power Injector) to the Manager and one AP-900 to each of the tanning beds. Install as many beds as you like with this configuration. Units that do not communicate with T-Max will need an AP-900 with Power Injector and an additional 3A to operate.
- Page 20 Installation - Remote Connections Scenario 4 - T-Max® Manager Series with Wireless combo 2 Wireless can be easily added to an existing salon already utilizing T-Max®. Connect one AP-900 (with Power Injector) to the Manager and one AP-900 to each wireless ready tan- ning bed.
- Page 21 Scenario 7 - Non T-Max® Remote System wired to unit Most non-T-Max® remote systems control the sunbed by the use of a relay. The relay operates the sunbed by connecting and disconnecting a pair of wires leading from the sunbed. Refer to the user’s manual provided with your remote system to determine if it operates in this way.
-
Page 22: Operation
peration Before You Tan Before using your sunbed, please note the following important precautions. • Your skin should be free of cosmetics, tanning oils, or other body lotions prior to tanning except for those specifically made for use with tanning devices. -
Page 23: Using Your Sunbed
Using Your Sunbed When connected to the T-Max® Manager or T-Max® 1A or 3A. A Face tanner control - Turns face tanners on and off during use. Face tanner lamps require one minute to relight. (Units equipped with face tanner only) B Body tanner control on and off during use. - Page 24 Operation - Using Your Sunbed Using Your Sunbed When used as a stand alone unit or when connected to a remote system using a control relay. A Face tanner control - Turns face tanners on and off during use. lamps require one minute to relight. (Units equipped with face tanner only) B Body tanner control on and off during use.
-
Page 25: Care And Maintenance
are and Maintenance Cleaning After Use Clean and disinfect your tanning bed’s bench and canopy after each use. Use a non-abrasive disinfectant cleaner that does not contain ammonia or ammonia deriva- tives. Ammonia may damage the acrylic shield. Spray the acrylic lightly with disin- fectant and wipe dry with a clean soft cloth. -
Page 26: Lamp And Acrylic Replacement
Care and Maintenance - Lamp and Acrylic Replacement Lamp and Acrylic Replacement Introduction To be assured of maximum tanning effec- tiveness, change lamps after approximate- ly 800-1000 hours of use. Tanning will continue after this time but at a slower rate. - Page 27 THE FOLLOWING LAMPS HAVE BEEN CERTIFIED FOR USE IN THIS EQUIPMENT: Velocity® Wolff® Model VEL 71-T12-100W Heraeus E400 HPT, Philips Model HPA 400/30s or CosmoTech Model 23045 (SolarMax™ IFT facial unit in 30 3F and 32 3F) Care and Maintenance - Lamp and Acrylic Replacement...
- Page 28 Care and Maintenance - Lamp and Acrylic Replacement Removing/Replacing Face Tanner Lamp (if equipped) After removing the canopy acrylic shield, replace the face tanner lamp as follows: Step 1 Support the face tanner assembly with your hand while unscrew- ing the two retaining screws. The face tanner glass casing will swing downward.
- Page 29 roubleshooting Problem Sunbed not tanning Lamps fail to light and timer dis- play is blank One or more lamps fail to light The canopy will not stay up The face tanners will not come on The last minute of tanning time does not count down from 59 sec- onds, but some time less than 59 seconds...
-
Page 30: Troubleshooting
Troubleshooting Problem Timer display is indicating Er 91 Timer display is indicating Er 92 Timer display is indicating Er 93 Timer display is indicating Er 94 Timer display changes to indicate a tanning time after the timer but- ton is pressed but lamps do not come on My bed is connected to the T- Max®... - Page 31 Problem My bed is connected to a T-Max® remote system but I am having trouble getting into “id” mode My bed, connected to a T-Max® Manager, did not display “dL” but does indicate: “0” a tanning time and the lamps have come on a tanning time but the lamps have not come on...
-
Page 34: Parts List
Parts List This is a list of parts which may be replaced by the consumer. Care should be taken when replacing anything related to electrical wiring. We recom- mend contacting a professional electrician. When calling for parts, first state your bed model as S- 30SV, S-30SV3F, S-32SV or S-32SV3F, depending on the model. - Page 35 SUNVISION Elite™ Size Weight (Pounds) Recommended Room Size Electrical - Voltage (AC) Amperage Circuit Breaker (Amps) Outlet Main Lamps Ballasts Face Tanner FT Ballasts Cooling System Timer System Max. Exposure Time Back-up Timer Remote Capability 7’D x 9’W Hardwire Velocity® 100W 100W 230cfm “Turbo”...
- Page 36 Size Weight (Pounds) Recommended Room Size Electrical - Voltage (AC) Amperage Circuit Breaker (Amps) Outlet Main Lamps Ballasts Face Tanner FT Ballasts Cooling System Timer System Max. Exposure Time Back-up Timer Remote Capability 32SV 7’D x 9’W Hardwire Velocity® 100W 100W 230cfm “Turbo”...
