Summary of Contents for ETS STARPOWER 548

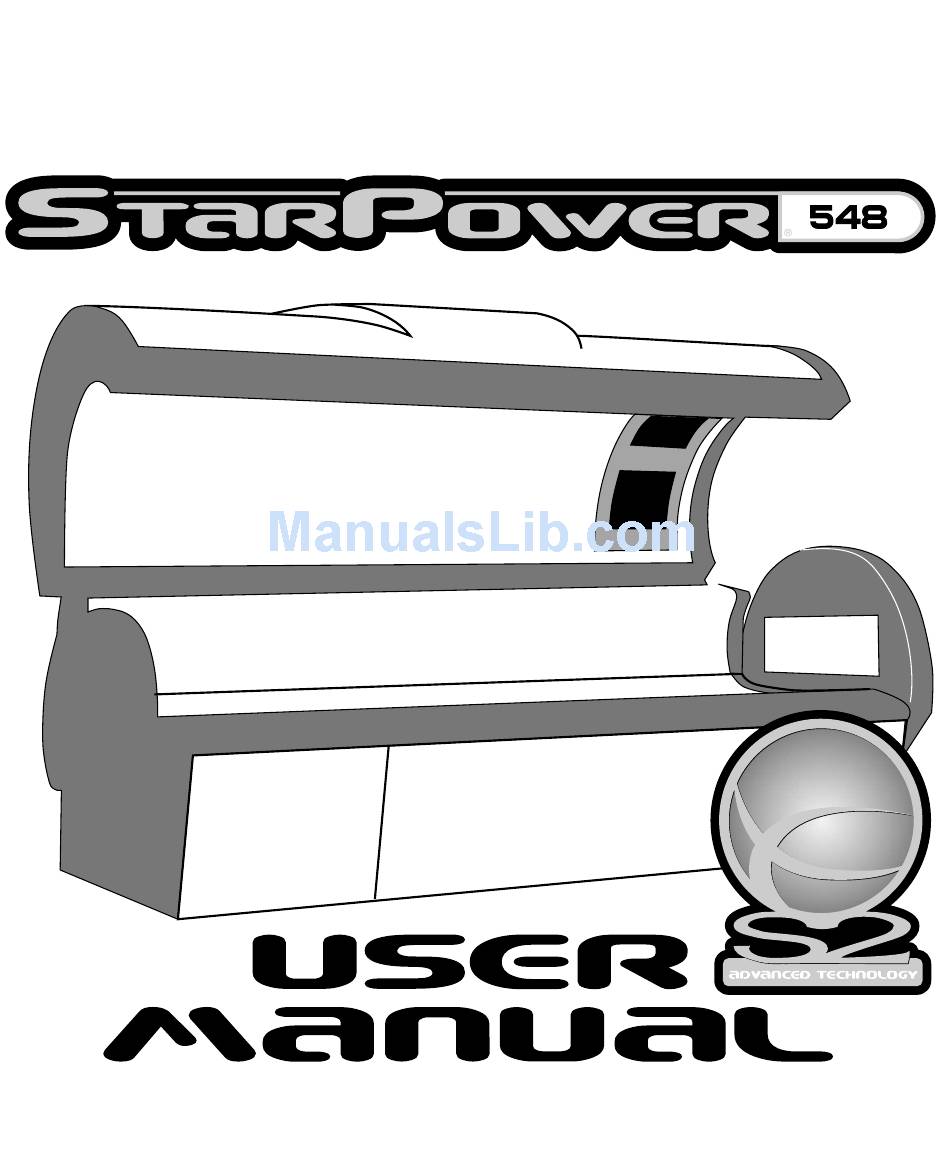

  • Page 1 27330-01A...
  • Page 2 All warranty service must be performed by an authorized service person. All labor charges must be authorized by your ETS Distributor prior to the start of repairs and must not exceed the established rates and time allotment policies established by your ETS Distributor. If your tanning unit must be returned for service, all freight charges shall be at your expense.

  • Page 3: Table Of Contents

    Welcome Congratulations on your purchase of this technologically advanced sun tanning unit. It has been designed to provide years of dependable service for you. Please read all the instructions in this booklet before installing and using the unit. Always be sure to observe all safety precautions.

  • Page 4: Safety Information

    Safety Information DANGER Ultraviolet radiation. Follow instructions. Avoid overexposure. As with natural sunlight, overexposure can cause eye and skin injury and allergic reactions. Repeated exposure may cause premature aging of the skin and skin cancer. WEAR PROTECTIVE EYEWEAR; FAILURE TO MAY RESULT IN SEVERE BURNS OR LONGTERM INJURY TO THE EYES. Medications or cosmetics may increase your sensitivity to the ultraviolet radiation.
  • Page 5 Renseignements sur la Sécurité DANGER Rayonnement ultraviolet. Veuillez suivre les instructions. Évitez une exposition excessive. Tout comme pour les rayons du soleil, une exposition excessive peut causer des blessures aux yeux et à la peau et provoquer des réac- tions allergiques. Une exposition répétée peut causer le vieillissement prématuré de la peau et provoquer le cancer de la peau. PORTEZ DES LUNETTES PROTECTRICES: LE NON-RESPECT DE CETTE CONSIGNE DE SÉCURITÉ...

  • Page 6: Installation

    The ballast tray is secured to the carton bottom with brack- ets. Remove these brackets from the bal- Tools Required last tray with a Phillips screwdriver. You will need the following tools to assemble your sunbed.

  • Page 7: Pre-Installation Planning

    Installation - Pre-Installation Planning Pre-Installation Planning • The STARPOWER® 548 operates from a 220V AC power source. The unit should Before you begin to assemble your be wired to a dedicated circuit capable sunbed, you should observe the following of providing 60 Amp service. This unit considerations.

  • Page 8: Adapter Gusset

    Installation - Hardware Inventory Canopy Adapter Arm Additional hardware in Body Fan box Quantity 2 #10 x 1/2” Phillips Pan Head Screw Quantity 5 1/4-20 x 1 1/2” Hex Head Bolt Quantity 4 Adapter Gusset Quantity 4 Hardware in Shoulder Tanner box Safety Goggles #10 x 1/2”...

  • Page 9: Assembly Procedures

    Installation - Assembly Procedures Assembly Procedures Before installing the bench endcaps you must install the body fan power cord into the foot end endcap, as shown below, and the shoulder tanning unit power cord into the head end endcap. The connector will snap securely into the endcap.
  • Page 10 Installation - Assembly Procedures Parts needed: Foot end endcap Head end endcap 14 - #10 x 1” Phillips pan-head screws 4 - #10 x 1/2” Phillips pan-head screws Attach endcap with 1” screws as shown. Use 1/2” screws here. Foot end endcap shown.
  • Page 11 Installation - Assembly Procedures Parts needed: Canopy 2 - Canopy Adapter Arms 4 - Adapter Gussets 12 - 3/8 x 1 1/4” hex-socket bolts 12 - 3/8” self-locking hex nuts CANOPY ARM Attach adapter arms to canopy arms using two adapter gussets and six bolts and nuts.
  • Page 12 Installation - Assembly Procedures Parts needed: CANOPY 6 - 3/8 x 1 1/4” hex-socket bolts 6 - 3/8” self-locking hex nuts Install this bolt as a positioning aide. Slip canopy arm onto hinge arm. Positioning bolt will engage the slot on top of hinge arm and hold canopy HINGE ARM up while the other bolts are...
  • Page 13 Installation - Assembly Procedures Parts needed: Rear lamp module 8 - #10 x 1/2” Phillips pan-head screws Canopy removed for clarity. Secure rear lamp module in place with 8 screws where shown.
  • Page 14 Installation - Assembly Procedures Parts needed: Body fan kit Shoulder tanner kit Install the body fan and shoulder tanner as described in the instruction sheets included in their respective boxes.
  • Page 15 Installation - Assembly Procedures Slide the ballast tray under the unit and pull the cords through to the rear. Install the access panel by putting it in place and locking with the access panel key.

  • Page 16: Electrical Connections

    Installation - Electrical Connections Electrical Connections Helpful Hint: Line up the plug with the proper receptacle and push in. Apply At the rear of the sunbed, connect the two pressure to the plug and twist the locking canopy power cords, two bench power ring counter-clockwise until you feel the cords and rear lamp module cord from the plug click into place.

  • Page 17: Final Adjustments

    Installation - Final Adjustments Final Adjustments Make sure the air filters are in place. The filter on top of the ballast tray simply sits over the vent holes. Airflow holds it in Your sunbed uses a smooth gliding spring place when the unit is on. The airflow lift system to raise the canopy.

  • Page 18: Remote Connections

    Installation - Remote Connections Remote Connections You will notice some wire clamps along the side of the fan housing under the bench. These are for the remote cables to Your sunbed incorporates advanced cir- keep them out from under the ballast cuitry allowing it to connect and commu- drawer when rolling the drawer in and nicate with most remote control systems.
  • Page 19 Installation - Remote Connections REMOTE PORTS CAUTION The remote connection is not designed to supply or accept high voltage, nor can it provide power WIRED WIRELESS to an external timer. The sunbed’s remote inter- REMOTE REMOTE face circuitry operates on 5 volts, attempting to PORTS (RJ-22) PORT (RJ-11) connect it to any higher voltages will damage the...
  • Page 20 Installation - Remote Connections Scenario 1 - T-Max® Manager Series with wires This system is ideal for multiple sunbed installa- tions. Simply connect the RJ-22 modu- lar cable(s), described in the T-Max® Manager manual, into the remote port(s) located on the ballast drawer and follow the instructions that came with your remote system.
  • Page 21 Installation - Remote Connections Scenario 4 - T-Max® Manager Series with Wireless combo Connect one AP-900 Retail to the Manager and one AP-900 OEM to a wireless ready tanning bed. The rest of the salon may be “daisy-chained” together and connected to the wireless equipped tan- ning bed, eliminating the need to wire the Manager to the tanning beds.
  • Page 22 Installation - Remote Connections Scenario 7 - Non T-Max® Remote System wired Setting the sunbed address manually to unit Before connecting your sunbed to the T-Max® Most non-T-Max® remote systems control the Manager or T-Max® 1A or 3A, the address of sunbed by the use of a relay.

  • Page 23: Operation

    Operation Before You Tan DANGER Some medication may increase your sensi- Before using your sunbed, please note the tivity to ultraviolet light. It is recommended that you consult a physician before using following important precautions. this sunbed if taking any medication or if you suspect that your skin might be espe- •...

  • Page 24: Using Your Sunbed

    Operation - Using Your Sunbed Using Your Sunbed When connected to the T-Max® Manager or T-Max® 1A or 3A. A Face tanner control 1. Lift canopy, lie down on bench (face up), - Turns face tanners lower canopy toward your body using on and off during use.
  • Page 25 Operation - Using Your Sunbed Using Your Sunbed When used as a stand alone unit or when connected to a remote system using a control relay. A Face tanner control 1. Lift canopy, lie down on the bench (face - Turns face tanners up), lower the canopy toward your body on and off during use.

  • Page 26: Care And Maintenance

    Care and Maintenance Cleaning After Use Step 3 Clean both sides of the acrylic shields with a non-ammonia dis- infectant cleaner. Clean and disinfect your tanning bed’s Step 4 Wipe the reflectors with a clean bench, canopy and rear lamp module after damp cloth.

  • Page 27: Lamp And Acrylic Replacement

    Care and Maintenance - Lamp and Acrylic Replacement Lamp and Acrylic Replacement Opening/Replacing Acrylic Shields Refer to the illustration on the next page while reading this instruction. The acrylic Introduction shield in the bench is secured in place by To be assured of maximum tanning effec- two quarter-turn latches along the front tiveness, change 100W lamps after aluminum frame of the acrylic.
  • Page 28 Care and Maintenance - Lamp and Acrylic Replacement CANOPY ACRYLIC REAR LAMP MODULE ACRYLIC BENCH ACRYLIC ACRYLIC SUPPORT...
  • Page 29 It should ability to effectively transmit UV light. click in place. Acrylics sold by ETS have been life tested to ensure proper transmission throughout their useful life. ONLY THE FOLLOWING LAMPS HAVE BEEN CERTIFIED FOR USE IN THIS EQUIPMENT: Bench lamps BRONZING SUN™...
  • Page 30 Care and Maintenance - Lamp and Acrylic Replacement Removing/Replacing Face Tanner Note! Never take hold of the lamp such Lamps that your fingers are in contact with the lamp glass. Finger oils will greatly reduce After removing the canopy and/or rear the lamp’s operational life.

  • Page 31: Troubleshooting

    Troubleshooting Problem Solution Sunbed not tanning 1. Clean sunbed, see Thorough Periodic Cleaning. 2. Ensure supply voltage is between 208 and 230V AC. 3. Replace lamps if lamp hours are greater than 800hrs. 4. Replace acrylic. Lamps fail to light and timer dis- 1.
  • Page 32 Troubleshooting Problem Solution Timer display is indicating Er 91 Timer software error. Disconnect and reapply power to the unit. Timer display is indicating Er 92 Current sensor indicating unit is off when it should be on. Contact servicer. Timer display is indicating Er 93 Current sensor indicating unit is on when it should be off.
  • Page 33 Troubleshooting Problem Solution My bed is connected to a T-Max® You have probably attempted to connect your sunbed to the remote system but I am having remote system already. Disconnect the remote plug(s) from the trouble getting into “id” mode ports at the front of the ballast tray, wait 90 seconds and try again.
  • Page 34 E548R (canopy cover removed and electrical shields cut back)
  • Page 35 Shoulder Tanner (outside shroud removed)
  • Page 36 Body Fan...
  • Page 37 Ballast Tray...
  • Page 38 Parts List Ignitor Lamp Holder w/ Starter This is a list of parts which may be replaced by the Lamp Holder w/o Starter consumer. When calling for parts, first state your Lamp Holder, Face Tanner* bed model as E548R. Then refer to this list and Lamps* preceding illustrations for proper identification.
  • Page 39 WHEN What to do After each use Monthly 400-500hrs 600-800hrs A. Clean/Disinfect Interior Surfaces* B. Clean Lamps* C. Clean Reflectors* D. Clean Exterior E. Check/Clean Fans† F. Change Lamps and Starters** H. Check Fasteners (nuts, bolts, etc.) I. Check Power Cords* J.
  • Page 40 STARPOWER 548 Size Weight (Pounds) 1050 Recommended Room Size 10’D x 10’W Electrical - Voltage (AC) Amperage Circuit Breaker (Amps) Outlet Hardwire Main Lamps (see page iii) BRONZING SUN™ PLUS / Velocity® VS-R™ Ballasts 100W (bench) / 160W (canopy) Face Tanner SolarMax™...
