4-2 ELECTRICAL

BATTERY CHARGING SYSTEM

OUTLINE

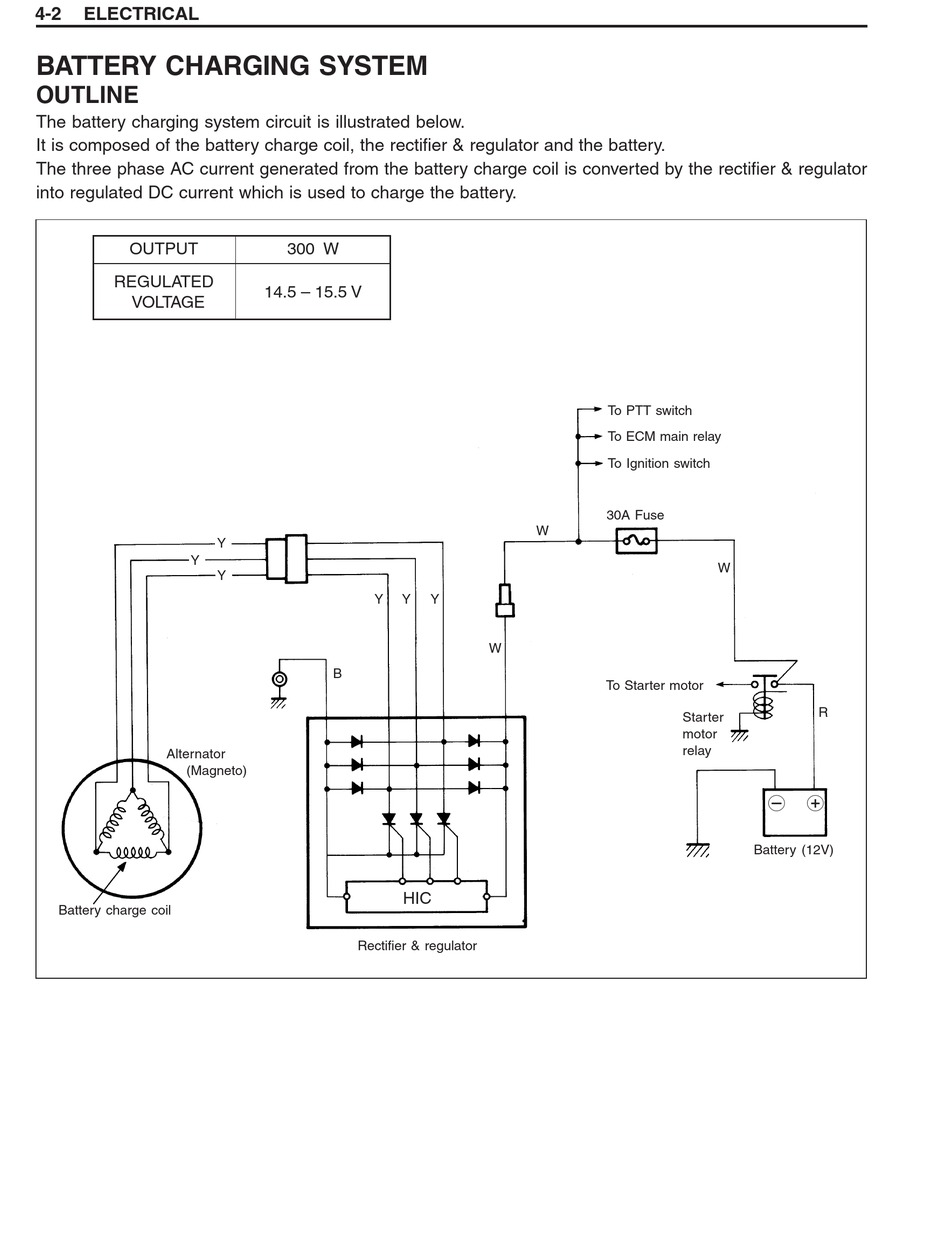

The battery charging system circuit is illustrated below.
It is composed of the battery charge coil, the rectifier & regulator and the battery.
The three phase AC current generated from the battery charge coil is converted by the rectifier & regulator
into regulated DC current which is used to charge the battery.
OUTPUT
REGULATED
VOLTAGE
Y
Alternator
(Magneto)
Battery charge coil
300 W
14.5 – 15.5 V
Y
Y
Y
B
Rectifier & regulator
W
Y Y
W
HIC
To PTT switch
To ECM main relay
To Ignition switch
30A Fuse
W
To Starter motor
Starter
motor
relay
-
Battery (12V)
R
+
