Battery Charging System; Outline - Suzuki DF9,9 Service Manual

3-18 IGNITION AND ELECTRICAL

BATTERY CHARGING SYSTEM

OUTLINE

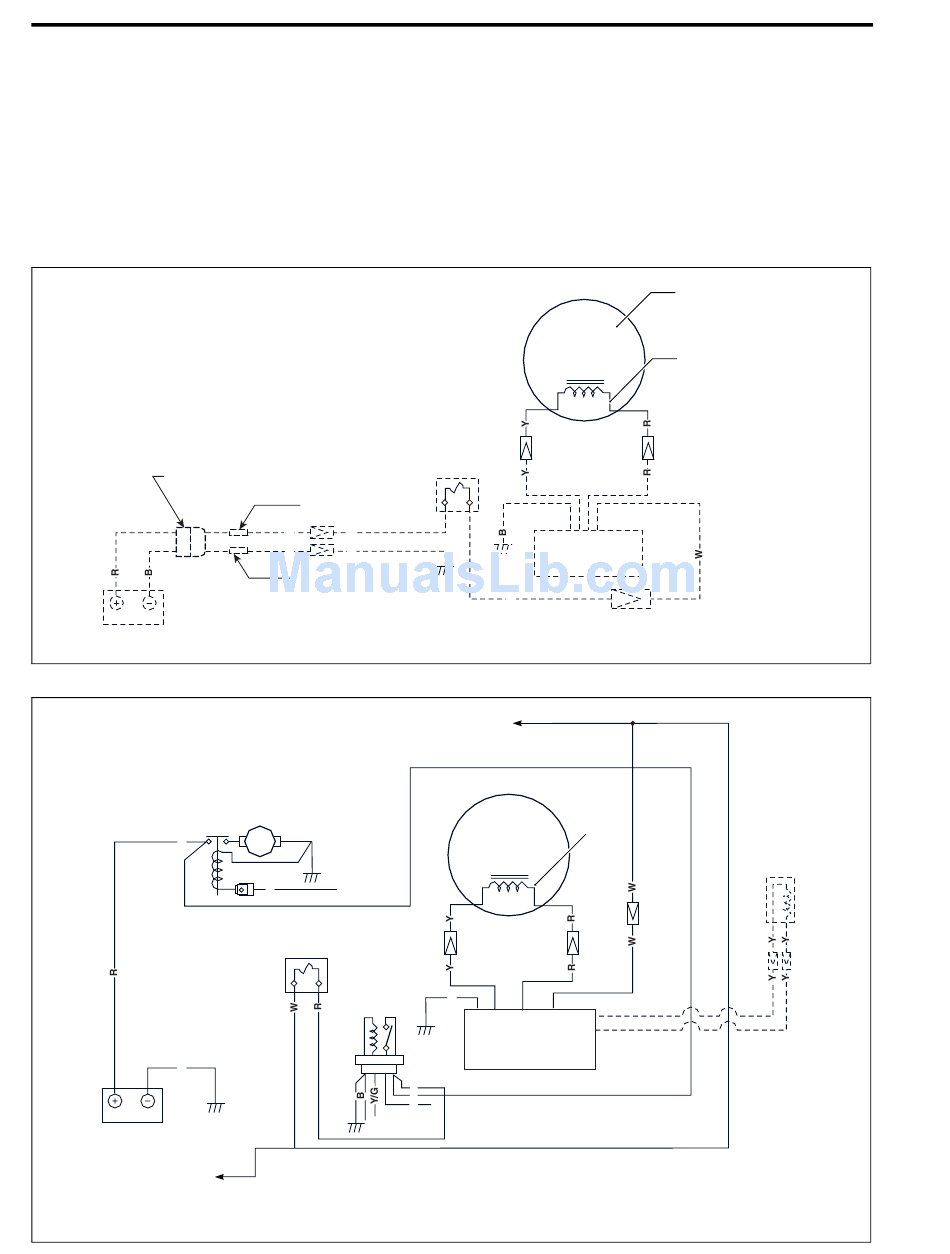

The battery charging system circuit is illustrated below.
It is composed of the battery charge coil, the rectifier & regulator and the battery.
The AC current generated from the battery charge coil is converted by the rectifier into regulated DC current
which is used to charge the battery.
Manual start model
Receptacle plug
Battery (12 V)
Electric start model
R
B
Battery
To ignition switch
(Remote control model)
Y-tube
W W
B B
R-tube
Starter motor
M
R
Fuse 20A
Starter
motor
relay
Fuse 20A
Rectifier &
Regulator
W
To starter button
(Tiller handle model)
Magneto
B
Rectifier &
Regulator
R
R
1. Battery charge coil
12 V 80 W (Tiller handle model)
12 V 120 W (Remote control model)
------ : Remote control model only
Magneto
Battery charge coil
(12 V 80 W)
------: Option
1.
PTC
heater
