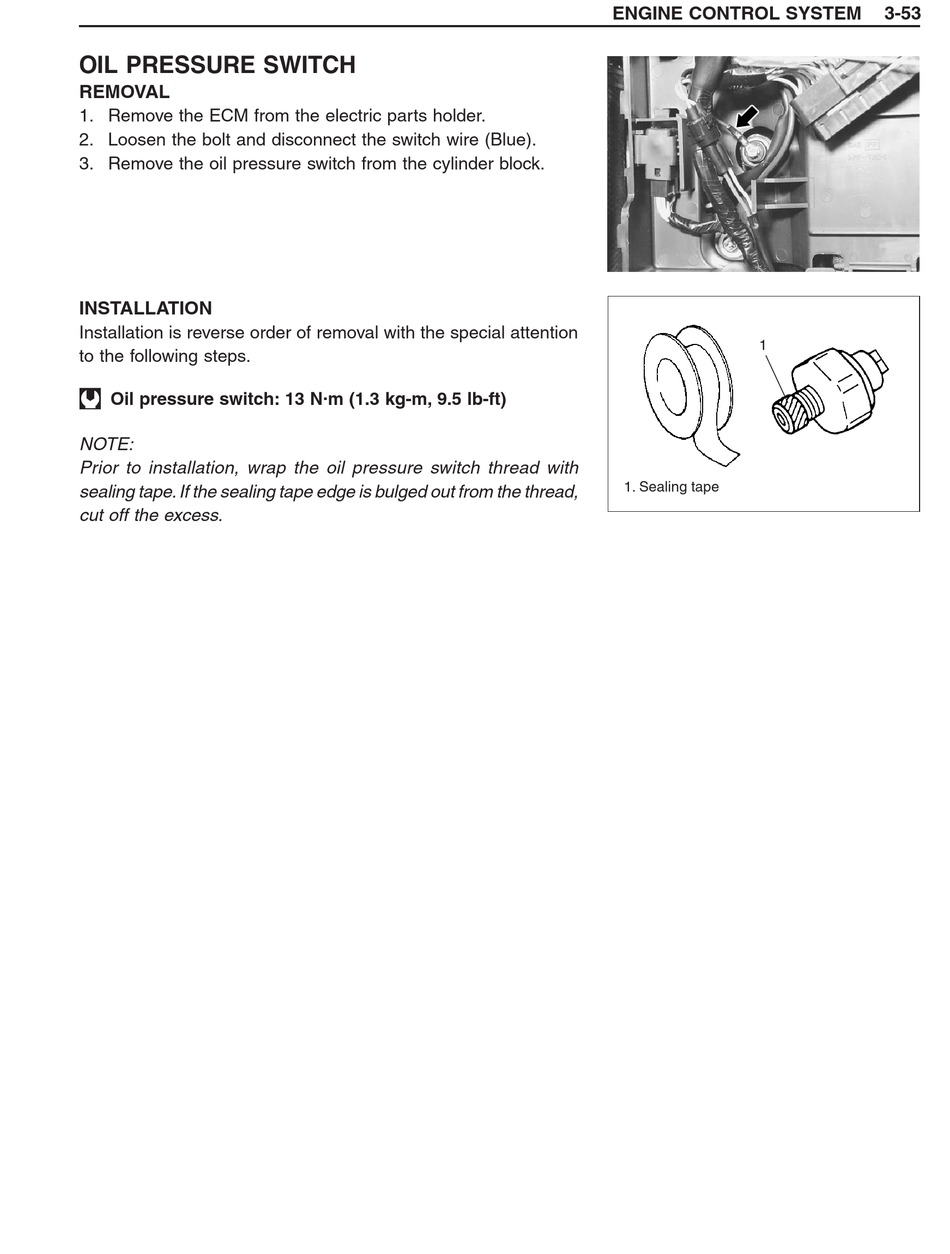

ENGINE CONTROL SYSTEM 3-53

OIL PRESSURE SWITCH

REMOVAL
1. Remove the ECM from the electric parts holder.
2. Loosen the bolt and disconnect the switch wire (Blue).
3. Remove the oil pressure switch from the cylinder block.
INSTALLATION
Installation is reverse order of removal with the special attention
1
to the following steps.
Oil pressure switch: 13 N . m (1.3 kg-m, 9.5 lb-ft)
+
NOTE:
Prior to installation, wrap the oil pressure switch thread with
1. Sealing tape
sealing tape. If the sealing tape edge is bulged out from the thread,
cut off the excess.
