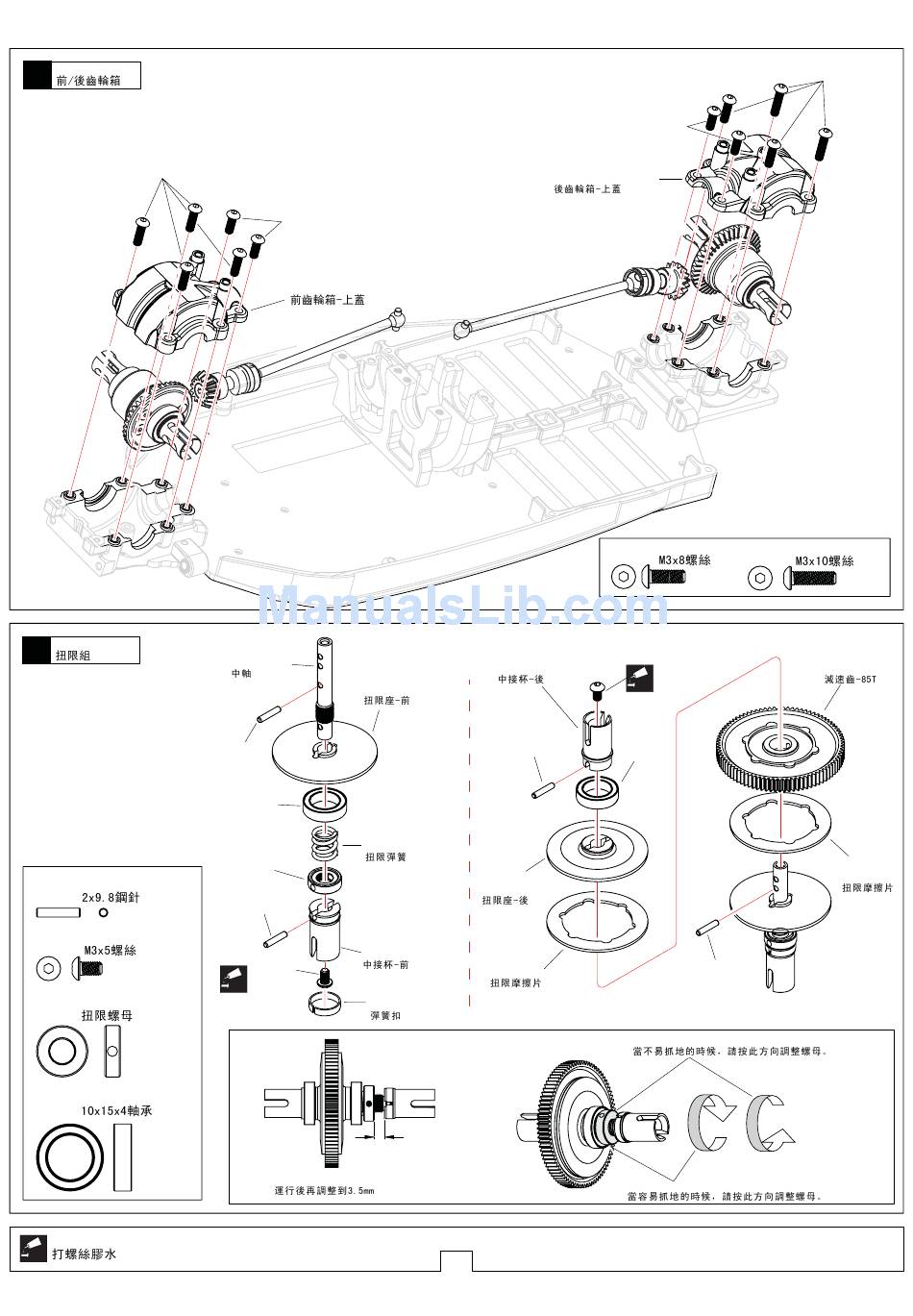

Team C t4 u2 User Manual page 6

5
F/R Gear-Box
TR4059 M3x10
6
Slipper set
T04032 2x9.8 Pin
...............4
TR4059 M3x5 Screw
..................2
T04018 Slipper nut
...............1
T02099 10x15x4 Ball Bearing
............2
Apply threadlocker(screw cement)
Screw
Cement
TR4059 M3x8
TR4002
Front Gear-box-cover
T04023
Center Shaft
T04020
Slipper Hub-F
T04032
T02099
T04019
Slipper Spring
T04018
T04032
T04021
Mid Connecting Hub-F
TR4059
M3x5
Screw
TR4022
Cement
Spring Buckle
Aften first run, re-adjust to around 3.5mm
T04039
Rear Gear-box-cover
T04021
Mid Connecting Hub-R
T04032
T04020
Slipper Hub-R
T04036
Slipper pad
3.5mm
3
TR4059 M3x8
TR4059 M3x8 Screw
TR4059 M3x10 Screw
.........4
TR4059
Screw M3x5
Cement
T02099
T04032
Loosen for more slippage
Tighten for less slippage when traction grip
TR4059 M3x10
.........8
TR4027
Supr Gear-85T
T04036
Slipper pad
