38
L
Wheel
R
39
Wing

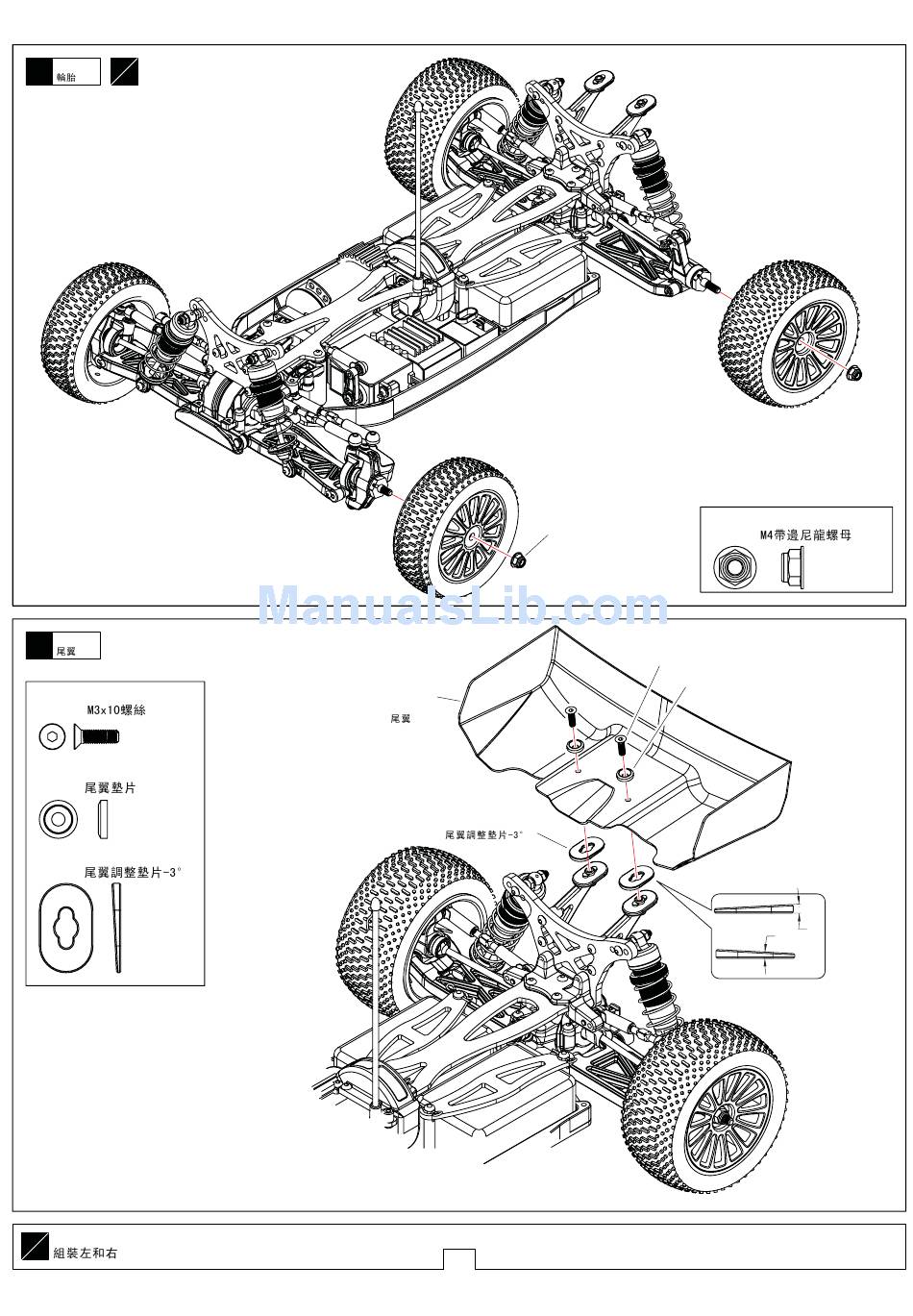

TR4858 M3x10 Screw
...............2
T04012 Wing washer
...............2
T04012 Wing angle shim-3°
...............2
Assemble both Left and Right
L
R
T02084
T04016
Wing
T04012
Wing angle shim-3°
19
T02084 M4 Flanged Nylon Nut
...............4
TR4058
T04012
+3 deg
3°
3°
-3 deg
