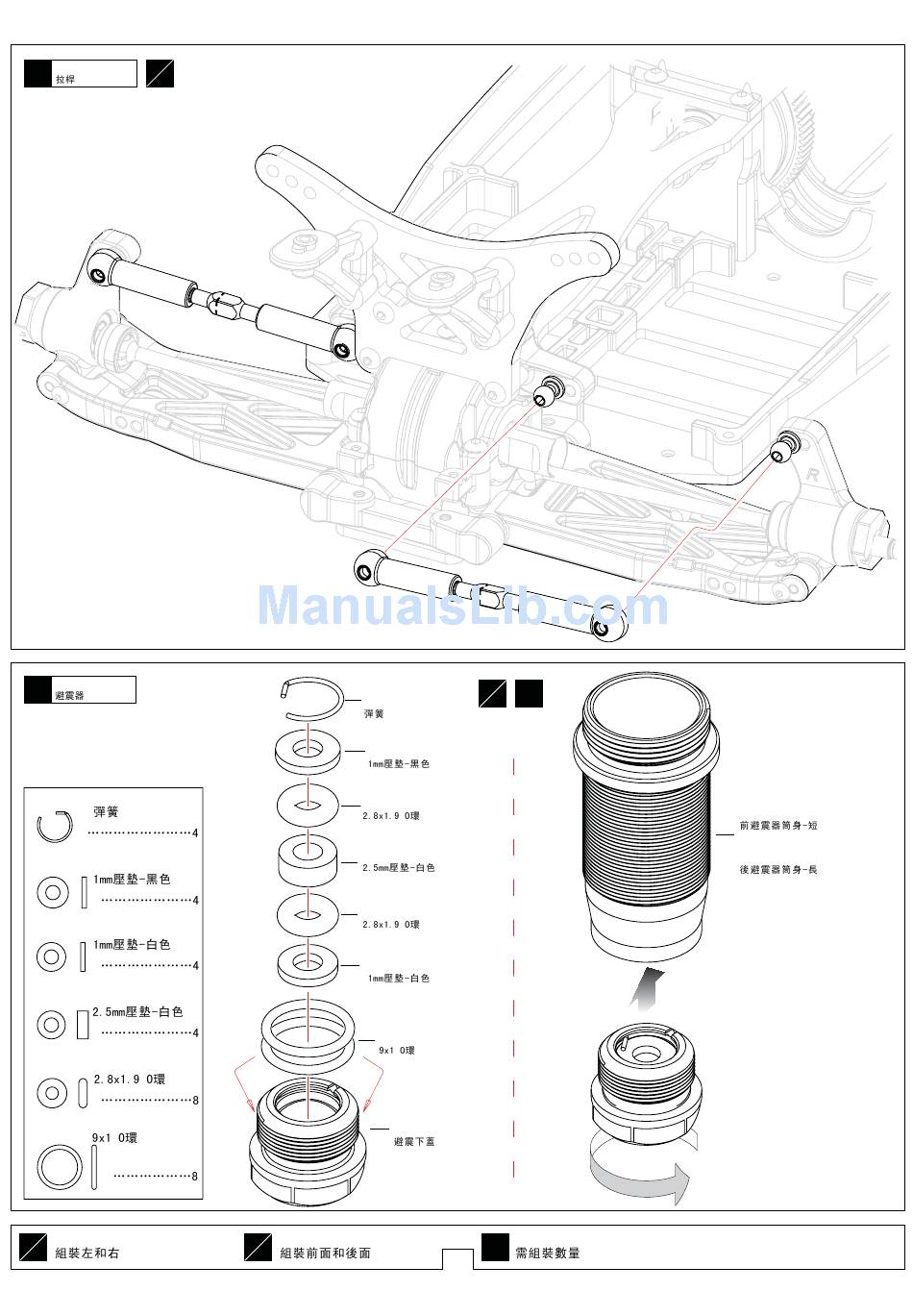

Team C t4 u2 User Manual page 16

26
L
Rear Turnbuckle
R
27
Shock Absorber
TU0250-8 Spring
TU0250-8 1mm Washer-Black
TU0250-8 1mm Washer-White
TU0250-8 2.5mm Washer-White
TU0250-8 2.8x1.9 O-ring
TU0250-8 9x1 O-ring
Assemble both Left and Right
L
R
TU0250-8
Spring
TU0250-8
1mm Washer-Black
TU0250-8
2.8x1.9 O-ring
TU0250-8
2.5mm Washer-White
TU0250-8
2.8x1.9 O-ring
TU0250-8
1mm Washer-White
TU0250-8
9x1 O-ring
TU0250-3
Shock Below Cover
Assemble both front and rear
F
R
x2
F
R
Assemble as many times as specified
x2
13
TU0250-3
Front Shock Absorber Body-Short
TU0250-4
Rear Shock Absorber Body-Long
