Team C t4 u2 User Manual page 12

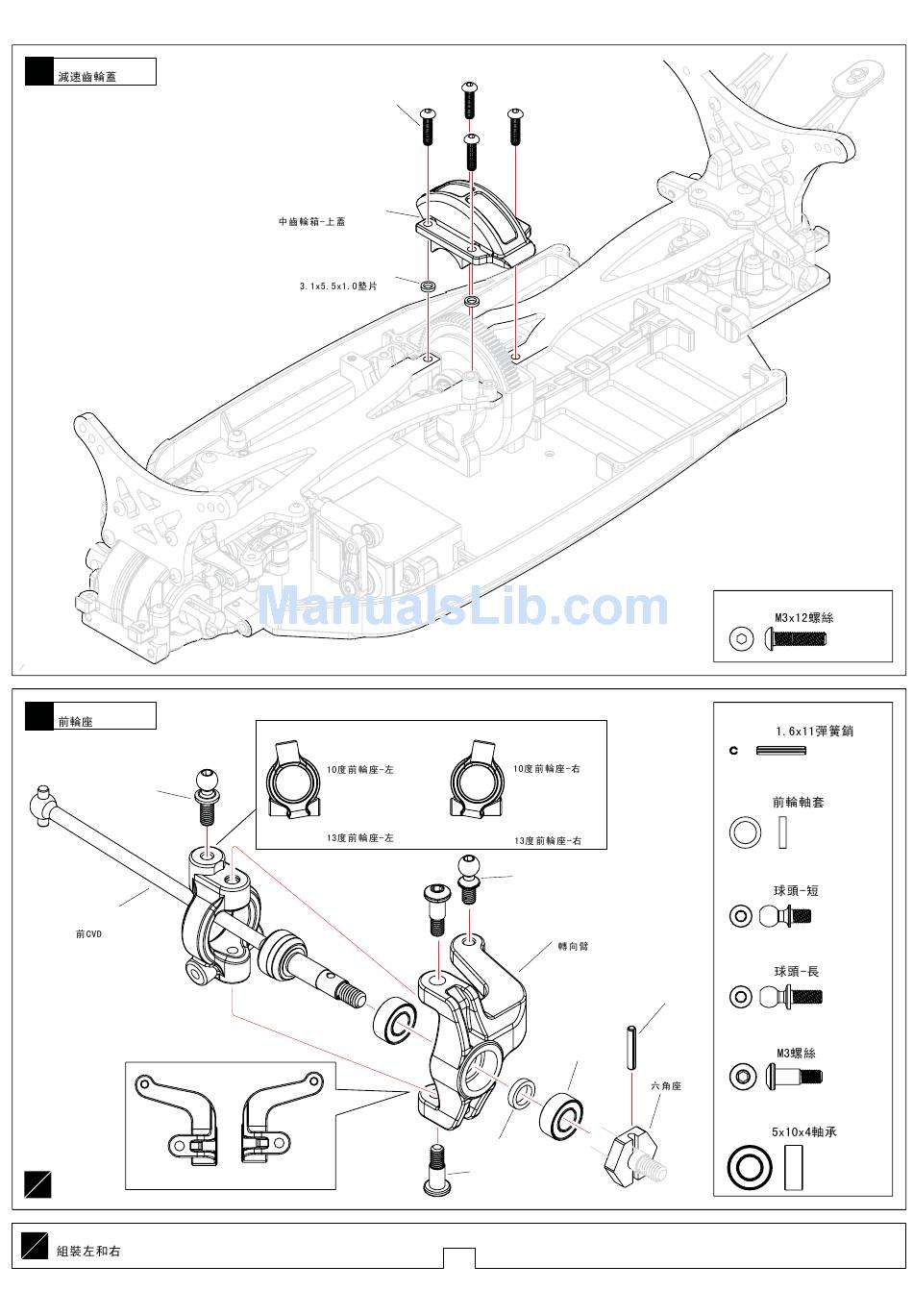

17 Spur Gear Cover
18
Front Hub Carrier
T02092
T04025
Front CVD
L
L
R
Assemble both Left and Right
L
R
TR4059 M3x12
TR4016
Center Gear-box-cover
T04057
3.1x5.5x1.0 Washer
TR4007
Front Hub Carriers
10 Degree-Left
TR4008
Front Hub Carriers
13 Degree-Left
R
TR4007
Front Hub Carriers
10 Degree-Right
TR4008
Front Hub Carriers
13 Degree-Right
T02093
TR4006
Steering Block
TR4011 1.6x11
T02100
T04028
T04038 M3
9
TR4059 M3x12 Screw
TR4011 1.6x11 Spring Pin
...............2
T04028 Front bearing collar
...............2
T02093 Ball stud-Short
...............2
T02092 Ball stud-Long
T04038 M3 Screw
T04011
Hex Mount
T02100 5x10x4 Ball Bearing
...............4
............4
............2
............4
