Team C t4 u2 User Manual page 17

28

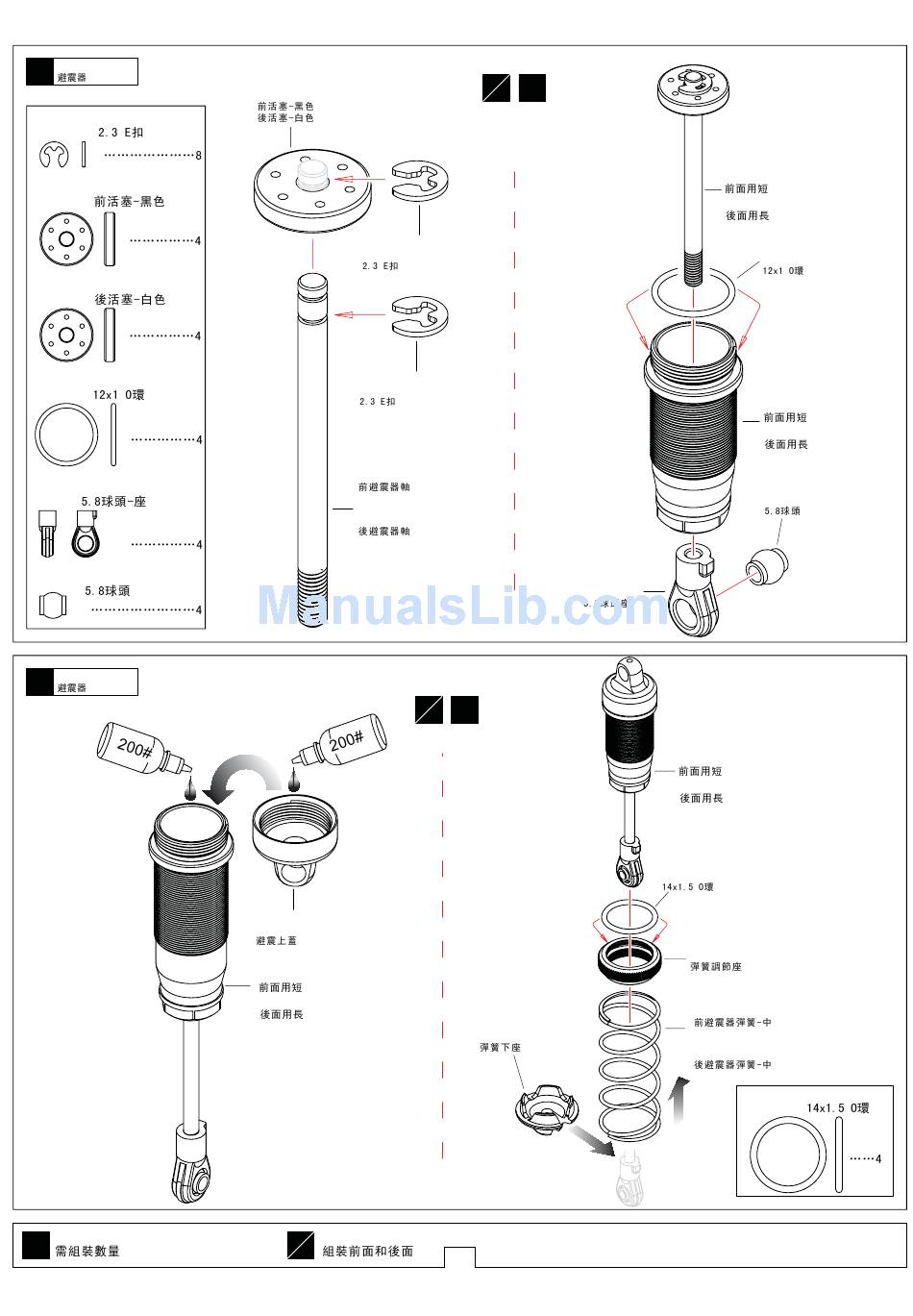

Shock Absorber
TU0250-1/TU0250-2 2.3 E-ring
TU0250-7 Front Piston-Black
TU0250-7 Rear Piston-White
TU0250-8 12x1 O-ring
T02031 5.8 Ball End
T02062 5.8 Ball Stud
29
Shock Absorber
Assemble as many times as specified
x2
TU0250-7
Front Piston-Black
Rear Piston-White
TU0250-1/TU0250-2
2.3 E-ring
TU0250-1/TU0250-2
2.3 E-ring
TU0250-1
Front Shock Absorber Shaft
TU0250-2
Rear Shock Absorber Shaft
F
TU0250-3/TU0250-4
Shock Upper Cover
Front For Short
Rear For Long
Assemble both front and rear
F
R
x2
F
R
T02062
5.8 Ball End
x2
R
TU0250-5
Below Spring Mount End
14
Front For Short
Rear For Long
TU0250-8
12x1 O-ring
Front For Short
Rear For Long
T02062
5.8 Ball stud
Front For Short
Rear For Long
TU0250-8
14x1.5 O-ring
TU0250-3/TU0250-4
Spring Adjuster
TU0250-10F
Front Shock Absorber Spring-Medium
TU0250-10R
Rear Shock Absorber Spring-Medium
TU0250-8 14x1.5 O-ring
