Team C t4 u2 User Manual page 5

3 x2

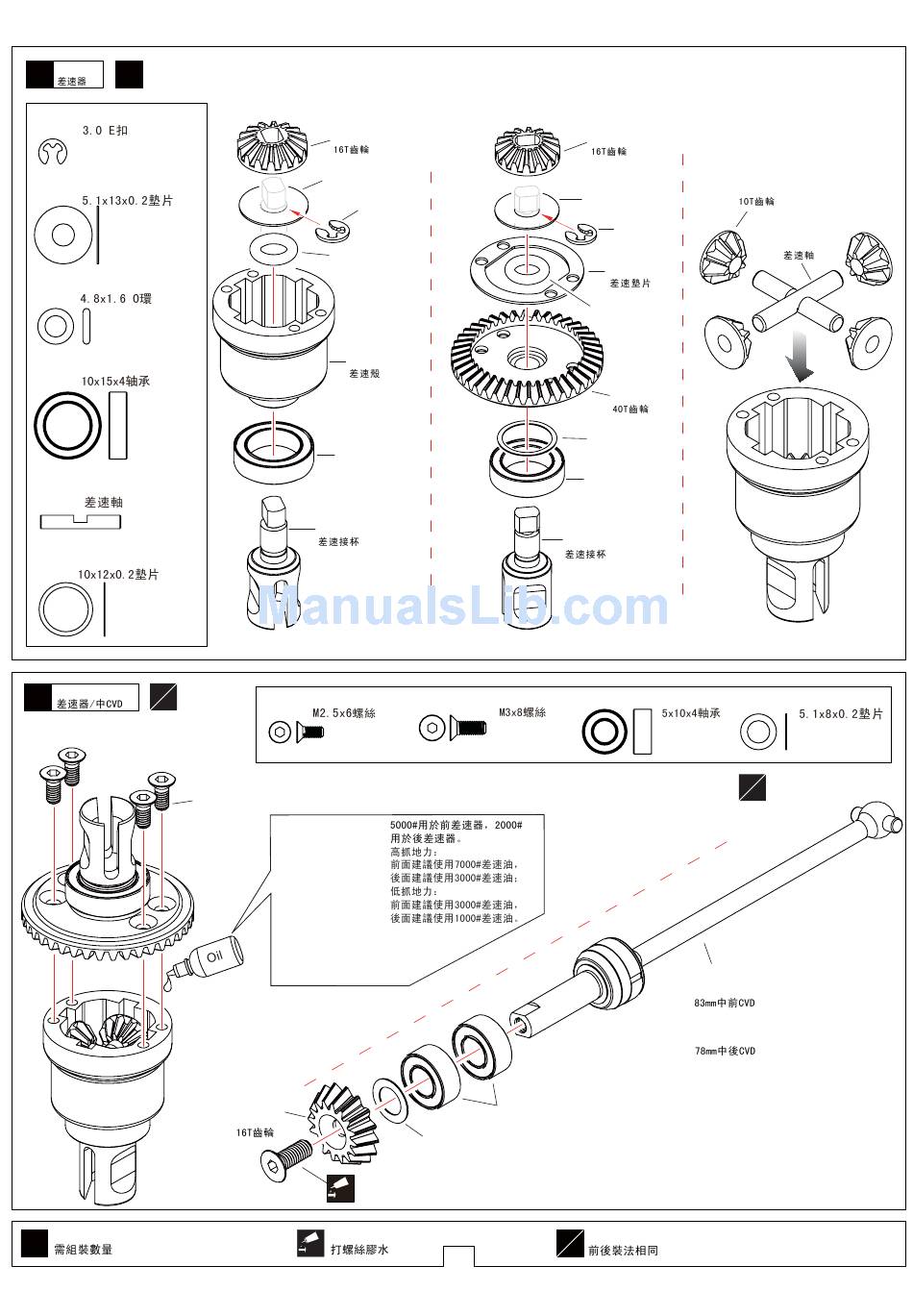

Diff
TS4040 3.0 E-ring
...........................4
TS4039 5.1x13x0.2 Washer
.....................4
T04040 4.8x1.6 O-ring
........................4
T02099 10x15x4 Ball Bearing
...............4
TS4039 Diff shaft
...............4
T04041 10x12x0.2 Washer
..................2
4
Diff / Mid CVD F
R
T04040
M2.5x6
Assemble as many times as specified
x2
TS4039
16T gear
TS4039
5.1x13x0.2
TS4040
T04040
4.8x1.6
T04040
Diff housing
T02099
10x15x4
TS4040
Diff connecting cup
T04040 M2.5x6 Screw
............8
5000# for Front diff，
2000# for Rear diff．
High grip:
Suggest using 7000#
differential oil for front,
Suggest using 3000#
differential oil for rear;
Low grip:
Suggest using 3000#
differential oil for front,
Suggest using 1000#
differential oil for rear.
T04041
16T gear
T04044 / T04045
Screw M3x8
Cement
Apply threadlocker(screw cement)
Screw
Cement
TS4039
5.1x13x0.2
TS4040
Diff connecting cup
T02100 5x10x4 Ball Bearing
T04044/T04045 M3x8 Screw
...............2
T02100 5x10x4
86000
5.1x8x0.2
F
R
2
TS4039
16T gear
TS4039
10T gear
TS4040
T04040
Diff pads
T04041
4.8x1.6
T04041
40T gear
T04041
10x12x0.2
T02099
10x15x4
86000 5.1x8x0.2 Washer
...............4
F
R
T04044
83mm center front CVD
T04045
78mm center rear CVD
Assemble front and rear sides the same way
TS4039
Diff shaft
..................2
