United States Stove Company 1269E Owner's Manual

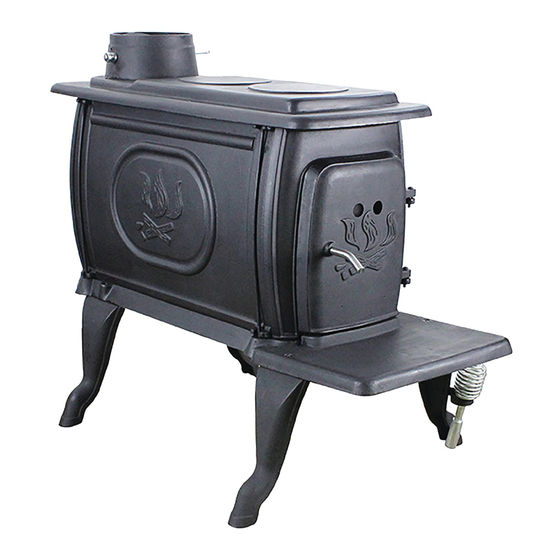

Small epa certified cast iron logwood stove, 54,000 btus
Hide thumbs Also See for 1269E:
Table of Contents

Advertisement

Quick Links

"U.S. ENVIRONMENTAL PROTECTION AGENCY Certified to comply with 2015 particulate emission
standards for single burn rate heaters. Not approved for sale after May 15, 2020. This single
burn rate wood heater is not approved for use with a flue damper."
THIS MANUAL WILL HELP YOU TO OBTAIN EFFICIENT, DEPENDABLE SERVICE FROM THE HEATER, AND ENABLE
YOU TO ORDER REPAIR PARTS CORRECTLY. KEEP IN A SAFE PLACE FOR FUTURE REFERENCE.
French version is available for download from the United States Stove Company website: http://www.usstove.
com/La version française est disponible pour téléchargement à partir du site United States Stove Company:
Please read this entire manual before you install or use your new room heater. Failure to
follow instructions may result in property damage, bodily injury, or even death.
If this heater is not properly installed, a house fire may result. For your safety,
follow the installation instructions. Never use make-shift compromises during the
installation of this heater. Contact local building or fire officials about permits,
restrictions and installation requirements in your area.
Owners Manual
Logwood 1269E
CONFORMS TO
UL 1482 (R2015)
CAN/ULC S627
WASHINGTON STATE APPROVED
DO NOT USE THIS HEATER IN A MOBILE HOME
SAVE THESE INSTRUCTIONS.
http:/www.usstove.com/
For use with Solid Fuel, Conforms to UL 1482
(R2015) and CAN/ULC-S627
Improper Installation Could Void Your Warranty!
SAFETY NOTICE:
&
CERTIFIED TO
CAUTION!
UNITED STATES STOVE COMPANY
227 Industrial Park Road
P.O. Box 151
South Pittsburg, TN 37380
(800) 750-2723
852430D-4402F

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 1269E and is the answer not in the manual?

Questions and answers

Related Manuals for United States Stove Company 1269E

Summary of Contents for United States Stove Company 1269E

  • Page 1 YOU TO ORDER REPAIR PARTS CORRECTLY. KEEP IN A SAFE PLACE FOR FUTURE REFERENCE. French version is available for download from the United States Stove Company website: http://www.usstove. com/La version française est disponible pour téléchargement à partir du site United States Stove Company: http:/www.usstove.com/...
  • Page 2 140 lbs This manual describes the installation and operation of the United States Stove Company Model 1269E woodheater. This heater meets the 2015 U.S. Environmental Protection Agency's crib wood emission limits for woodheaters sold after May 15, 2015. Under specific EPA test conditions burning Douglas Fir dimensional lumber this heater has been shown to deliver heat at a rate of 24,433 Btu/hr.

  • Page 3: Tools And Materials Needed

    DO NOT BURN: 1. Residential or commercial garbage; 2. Lawn clippings or yard waste; 3. Materials containing rubber, including tires; 4. Materials containing plastic; 5. Waste petroleum products, paints or paint thinners, or asphalt products; 6. Materials containing asbestos; 7. Construction or demolition debris; 8.

  • Page 4: Ash Removal And Disposal

    Operational Tips For The Best Performance Of Your Heater BUILDING A FIRE The top down method of fire building is recommended for this appliance. Place the largest pieces of wood on the bottom, laid in parallel and close together. Smaller pieces are placed in a second layer, crossways to the first.
  • Page 5 CHIMNEY Take into account the chimney’s location to insure it is not too close to neighbors or in a valley which may cause unhealthy or nuisance conditions. EFFICIENCY Efficiencies can be based on either the lower heating value (LHV) or the higher heating value (HHV) of the fuel.

  • Page 6: Safety Rules

    Safety Rules SAFETY NOTICE: If this heater is not properly installed, a house fire may result. For your safety, follow the installation directions. Contact local building or fire officials about restrictions and installation inspection requirements in your area. READ THESE RULES AND THE INSTRUCTIONS CAREFULLY: 1.

  • Page 7: Required Tools

    ASSEMBLY INSTRUCTIONS NOTICE: United States Stove Company grants no warranty, stated or implied, for the installation or maintenance of your wood stove and assumes no responsibility of any incidental or consequential damages. REQUIRED TOOLS 6. Attach the front legs to hearth with two (2) 1/4-20 •...

  • Page 8: Installation

    Installation MINIMUM CLEARANCE TO COMBUSTIBLE WALLS US, CANADA 18” 18” 419mm 419mm HEATER/FLOOR PROTECTOR LOCATION (Dimensions are required for non-protected surfaces. See chart for dimensions for protected surfaces.) Place the heater on solid masonry or solid concrete. When the heater is used on a combustible floor, use an Underwriters Listed floor protector.
  • Page 9 5. Use three sheet metal screws in each stove pipe and or elbow joint to firmly hold the pipe together. Seal around the screws 6. Do not install this heater in a mobile home or trailer. 7. Check your local building and insurance codes. The installation must comply with their rulings. 8”...

  • Page 10: Chimney Connection

    Operation Of The Heater 1. Burn wood or wood products only. The wood should be well FLUE CONNECTION-NON-COMBUSTIBLE WALL seasons prior to use for maximum efficiency. 2. Provide air into the room for combustion. FLUE CONNECTION-NON-COMBUSTIBLE WALL 3. Do Not touch the heater after firing until it has cooled. NONCOMBUSTIBLE WALL 4.
  • Page 11 CONNECTION OF CHIMNEY CONNECTOR TO A MASONRY CHIMNEY THROUGH A COMBUSTIBLE WALL CONNECTION OF CHIMNEY CONNECTOR TO A MASONRY CHIMNEY THROUGH A COMBUSTIBLE WALL Figure 8 shows how to connect the chimney connector of a heater to a masonry chimney through a Figure 8 shows how to connect the chimney connector of a heater to a masonry chimney through a combustible wall.
  • Page 12 PART A, FIGURE 8 MINIMUM CHIMNEY CLEARANCE TO (FIGURE 8 CONTINUED ON NEXT PAGE) BRICK AND COMBUSTIBLES IS 2 IN. MINIMUM CLEARANCES 12 IN. OF BRICK ALL AROUND CHIMNEY CONNECTOR TO HEATER FIRE CLAY LINER MINIMUM 12 IN. (5/8" MIN. WALL THICKNESS) TO COMBUSTIBLES MASONRY CHIMNEY CONSTRUCTED TO...
  • Page 13 the wall pass-through system to the inner face of the chimney flue, but not beyond. It does not have to be fastened in place so long as it cannot accidently be pulled out of the chimney or shoved into the chimney flue.

  • Page 14: Service Hints

    CAUTION! CAUTION! USE WOOD OR WOOD-LIKE MATERIALS NEVER USE GASOLINE, GASOLINE-TYPE ONLY. DO NOT USE COAL OR LANTERN FUEL, KEROSENE, CHARCOAL CHARCOAL. COAL OR CHARCOAL WILL LIGHTER FLUID, OR SIMILAR DESTROY THE FIREBOX. DO NOT USE LIQUIDS TO START OR "FRESHEN UP" A DRIED LUMBER OR TREATED WOOD.

  • Page 15: Woodstove Utilization

    WOODSTOVE UTILIZATION Your heating unit was designed to burn wood only; no other materials should be burned. Waste and other flammable materials should not be burned in your stove. Any type of wood may be used in your stove, but specific varieties have better energy yields than others.

  • Page 16: The First Fires

    THE FIRST FIRES The fresh paint on your stove needs to be cured to preserve its quality. Once the fuel charge is properly ignited, only burn small fires in your stove for the first four hours of operation. Make sure that there’s enough air circulation while curing the stove. The odors could be smelled during the 3 or 4 first fires.

  • Page 17: Maintenance

    CAUTIONS: • ASHES COULD CONTAIN HOT EMBERS EVEN AFTER TWO DAYS WITHOUT OPERATING THE STOVE. MAINTENANCE Your wood stove is a high efficiency stove and, therefore requires little maintenance. It is important to perform a visual inspection of the stove every time it is emptied, in order to insure that no parts have been damaged, in which case repairs must be performed immediately.

  • Page 18: Parts Diagram

    PARTS DIAGRAM -18-...

  • Page 19: Parts List

    PARTS LIST PART NO. DESCRIPTION QTY. 892508 Bottom Channel 892510 Baffle 86802 Bent Tube Right 892516 Tube Weldment 89972 Latch 88228 Kao Wool 40309 Flue Collar 40774 Main Top 40398 Flue Baffle (to be fixed) 40775 Main Side 40771 Hearth Extension 40772 Floor 40302...

  • Page 20: Limited Warranty

    Any defects should be reported to United States Stove Company or its dealer and/or distributor giving descriptions and pertinent data, including proof or purchase which will be returned upon request. Providing the heater has been installed and used in accordance with the Owners Manual supplied with the heater, United States Stove Company will either: Replace the defective part free of charge...

  • Page 21: Service Record

    SERVICE RECORD It is recommended that your heating system is serviced regularly and that the appropriate Service Interval Record is completed. Service Provider: Before completing the appropriate Service Record below, please ensure you have carried out the service as described in the manufacturer’s instructions.
  • Page 22 NOTES...
  • Page 23 NOTES...

  • Page 24: How To Order Repair Parts

    FOLLOWING INFORMATION AS SHOWN IN THIS LIST: 1. The PART NUMBER _________________________________ 2. The PART DESCRIPTION ____________________________ 3. The MODEL NUMBER _______________________________ 4. The SERIAL NUMBER _______________________________ UNITED STATES STOVE COMPANY 227 Industrial Park Road P.O. Box 151 South Pittsburg, TN 37380 (423) 837-2100...
