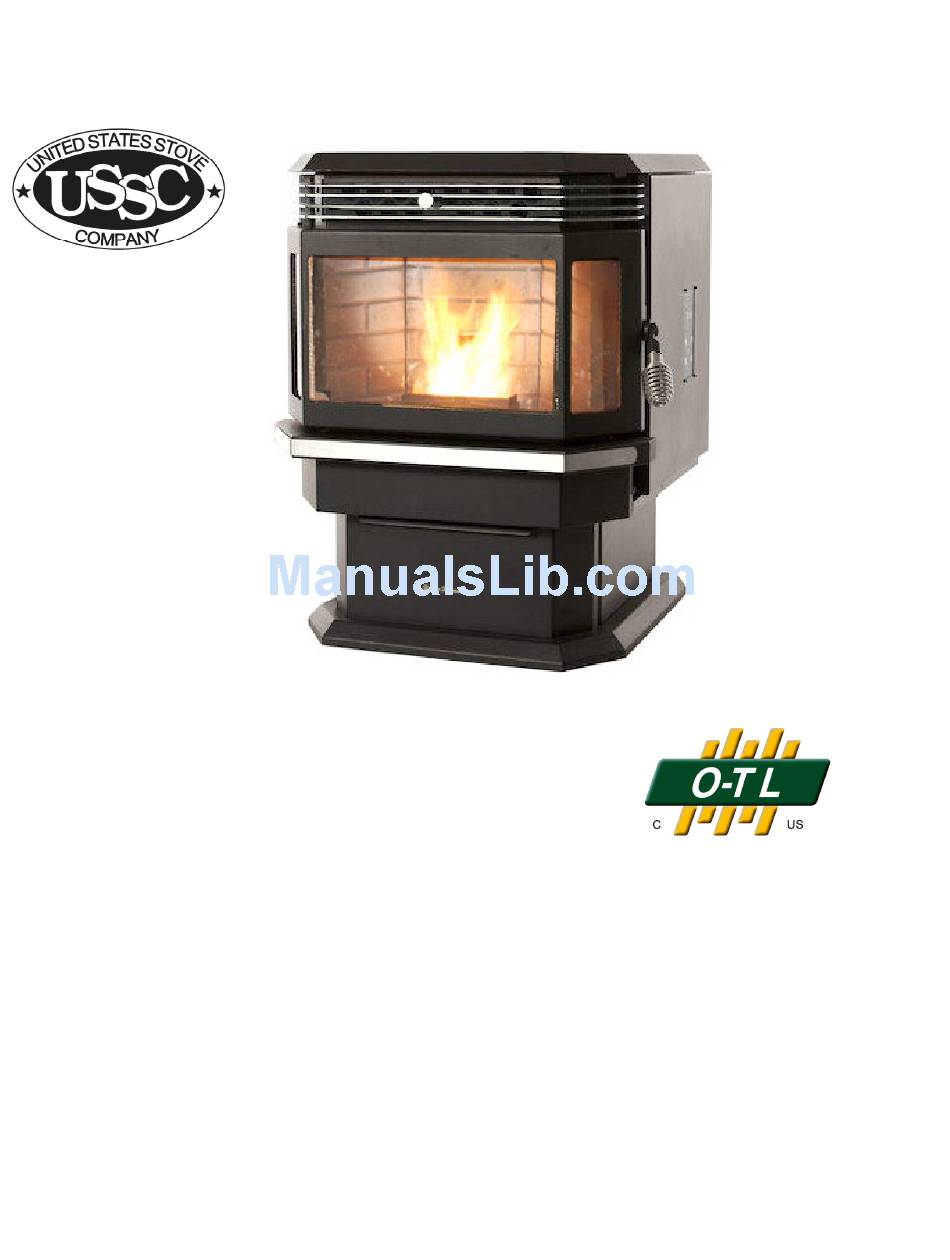

Installation and Operating Manual
Please read this entire manual before installation and use of this pellet fuel-burning room heater. Failure to follow instructions
may result in property damage, bodily injury, or even death.
If your heater is not properly installed, a house fire may result. For everyone's safety, FOLLOW all Installation and Operating
Directions. Never use makeshift compromises during the installation of this appliance.
Contact your local building or fire officials about restrictions and installation inspection requirements in your area.
These Pellet Stove Room Heaters have been designed for use in the US and Canada and are suitable for mobile homes.
The French version of this manual is available for download at www.usstove.com
United States Stove Company • 227 Industrial Park Road, South Pittsburg, TN 37380 • Ph #: (800) 750-2723
Model 5560 (I)
SAFETY NOTICE
Save These Instructions
Tested &
Listed by
OMNI- Test Laboratories, Inc.
Report #:
215-S-32-4 and 215-S-33-4
Portland
Oregon USA
Part No.: 851901B
