Owners Manual

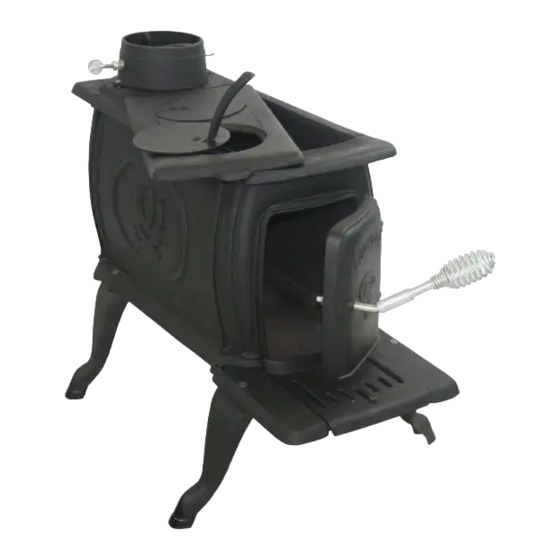

Logwood 1261
EPA EXEMPT PER
METHOD 28A
TESTED TO
UL 1482
CAUTION!
Read All Instructions Carefully
Before Starting The Installation
DO NOT USE THIS HEATER
or Operating This Heater.
IN A MOBILE HOME OR TRAILER
SAVE THIS MANUAL FOR FUTURE REFERENCE
THIS MANUAL WILL HELP YOU TO OBTAIN EFFICIENT, DEPENDABLE SERVICE FROM THE HEATER, AND ENABLE YOU
TO ORDER REPAIR PARTS CORRECTLY. KEEP IN A SAFE PLACE FOR FUTURE REFERENCE.
UNITED STATES STOVE COMPANY
227 Industrial Park Road
P.O. Box 151
US
South Pittsburg, TN 37380
(423) 837-2100
-1-
85029F

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Logwood 1261 and is the answer not in the manual?

Questions and answers

Related Manuals for United States Stove Company Logwood 1261

Summary of Contents for United States Stove Company Logwood 1261

  • Page 1: Owners Manual

    THIS MANUAL WILL HELP YOU TO OBTAIN EFFICIENT, DEPENDABLE SERVICE FROM THE HEATER, AND ENABLE YOU TO ORDER REPAIR PARTS CORRECTLY. KEEP IN A SAFE PLACE FOR FUTURE REFERENCE. UNITED STATES STOVE COMPANY 227 Industrial Park Road P.O. Box 151...

  • Page 2: Tools And Materials Needed

    CONGRATULATIONS! You've purchased a heater from North America's oldest manufacturer of wood burning products. By heating with wood you're helping to CONSERVE ENERGY! Wood is our only Renewable Energy Resource. Please do your part to preserve our wood supply. Plant at least one tree each year. Future generations will thank you. Tools and Materials Needed MATERIALS TOOLS...

  • Page 3: Safety Rules

    Safety Rules SAFETY NOTICE: If this heater is not properly installed a house fire may result. For your safety, follow the in- stallation directions. Contact local building or fire officials about restrictions and installation inspection require- ments in your area. Read these rules and the instructions carefully.

  • Page 4: Installation

    Installation MINIMUM CLEARANCE TO COMBUSTIBLE WALLS Place the heater on solid masonry or solid concrete. When the heater is used on a combustible floor, use an Underwriters Listed floor protector. The floor protector must comply with UL Standards. The base should extend at least 16" beyond the door side of 18"...

  • Page 5: Chimney Connection

    Operation of the Heater FLUE CONNECTION-NON-COMBUSTIBLE WALL 1. BE SURE TO PUT A LAYER OF SAND OR FIREBRICK APPROXI- FLUE CONNECTION-NON-COMBUSTIBLE WALL MATELY 1 1/2" THICK IN THE BOTTOM OF THE STOVE BEFORE STARTING FIRE. NONCOMBUSTIBLE WALL FLUE CONNECTION-NON-COMBUSTIBLE WALL THIMBLE 2.
  • Page 6 CONNECTION OF CHIMNEY CONNECTOR TO A MASONRY CHIMNEY THROUGH A COMBUSTIBLE WALL Figure 8 shows how to connect the chimney connector of a heater to a masonry chimney through a combustible wall. CONNECTION OF CHIMNEY CONNECTOR TO A MASONRY CHIMNEY THROUGH A COMBUSTIBLE WALL There are five allowable ways that a chimney connector can be connected to a masonry chimney by passing through a Figure 8 shows how to connect the chimney connector of a heater to a masonry chimney through a combustible wall.
  • Page 7 PART A, FIGURE 8 MINIMUM CHIMNEY CLEARANCE TO (FIGURE 8 CONTINUED ON NEXT PAGE) BRICK AND COMBUSTIBLES IS 2 IN. MINIMUM CLEARANCES 12 IN. OF BRICK ALL AROUND CHIMNEY CONNECTOR TO HEATER FIRE CLAY LINER MINIMUM 12 IN. (5/8" MIN. WALL THICKNESS) TO COMBUSTIBLES MASONRY CHIMNEY CONSTRUCTED TO...
  • Page 8 PART B MINIMUM CHIMNEY CLEARANCES FROM MASONRY TO FIGURE 8 - SHEET STEEL SUPPORTS AND COMBUSTIBLES 2 IN. (FIGURE 8 CONTINUED) FACTORY-BUILT MINIMUM CLEARANCE CHIMNEY LENGTH 9 IN. ALL AROUND NONSOLUBLE CHIMNEY CONNECTOR REFACTORY TO HEATER CEMENT CHIMNEY LENGTH FLUSH WITH INSIDE USE CHIMNEY MFRS.

  • Page 9: Service Hints

    WARNING! CAUTION! NEVER STORE FLAMMABLE LIQUIDS, NEVER USE GASOLINE, GASOLINE-TYPE ESPECIALLY GASOLINE. IN THE LANTERN FUEL, KEROSENE, CHARCOAL VICINITY OF THE HEATER. LIGHTER FLUID, OR FLAMMABLE LIQUIDS TO START OR "FRESHEN UP" A FIRE IN THE HEATER. CAUTION! OVERFIRING THE APPLIANCE MAY CAUSE A HOUSE FIRE.

  • Page 10: Repair Parts

    Model 1261 Repair Parts PART NO. DESCRIPTION QNTY. 40296 REAR LEG 40318 FRONT LEG 40297 MAIN BOTTOM 40298 MAIN SIDE 40299 MAIN BACK 40300 HEARTH PLATE 40301 SLIDING DRAFT PLATE 40302 DOOR FRAME 40303 DOOR 40304 MAIN TOP 40305 PIVOTING TOP 40306 40307 LID SUPPORT...
  • Page 11 NOTES -11-...

  • Page 12: How To Order Repair Parts

    FOLLOWING INFORMATION AS SHOWN IN THIS LIST: 1. The PART NUMBER 2. The PART DESCRIPTION 3. The MODEL NUMBER: 1261 4. The SERIAL NUMBER: UNITED STATES STOVE COMPANY 227 Industrial Park Road P.O. Box 151 South Pittsburg, TN 37380 (423) 837-2100 www.USSTOVE.com...
