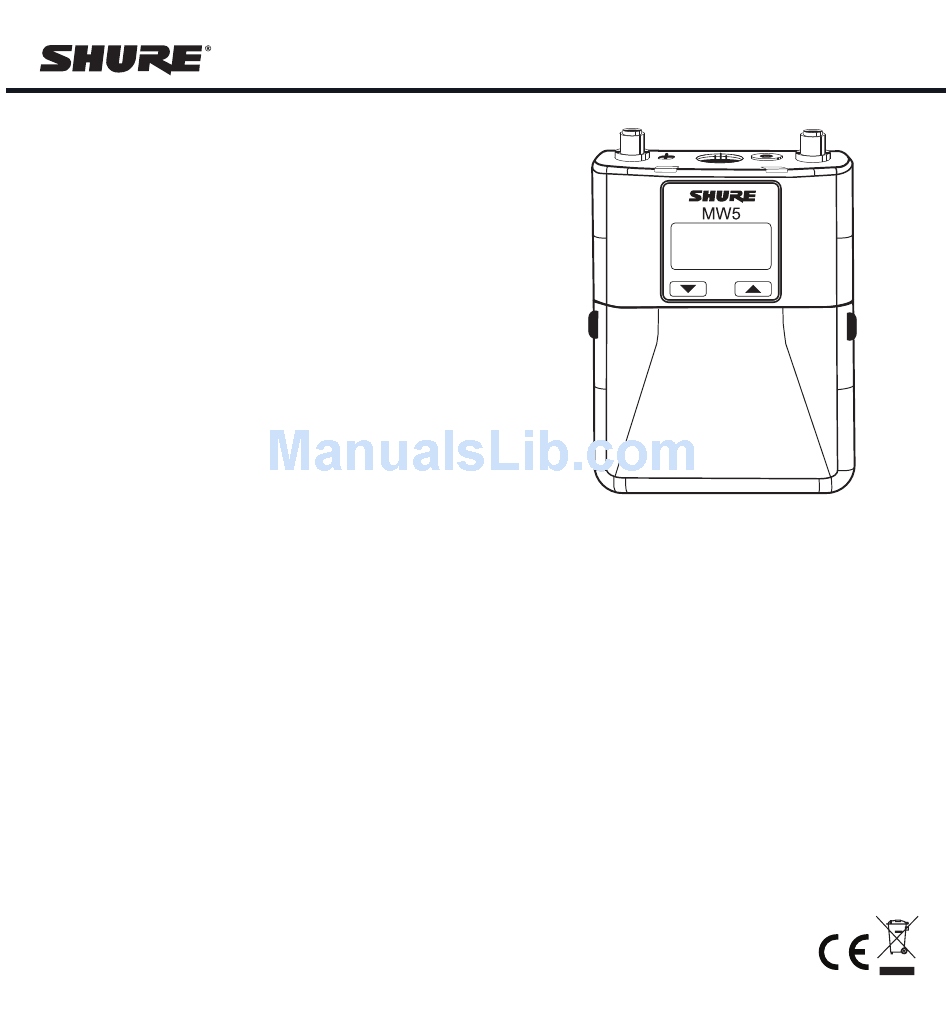

The MW5 is a premium portable wireless microphone receiver component, designed to provide Shure UHF-R®-class wireless technology, performance and quality for profes- sional field and media production applications. Featuring wide-band frequency tuning, hands-on navigation, rechargeability, and a wide variety of mounting options, the MW5 is the clearest choice for wireless portability.
Page 4
exit enter sync scan exit enter sync exit enter sync exit enter sync scan scan exit enter sync scan exit enter sync scan exit enter sync scan 2 sec exit enter sync exit enter sync scan scan exit enter sync exit enter sync scan scan exit enter sync scan...
Page 5
For transferring RF settings and name to a transmitter, or copying the MTx list to another receiver. ⑥ Battery Compartment Install 2 AA batteries or a Shure SB900 rechargeable battery. Open by pressing the latches on both sides and pulling outward. ⑦ Menu Buttons Use in conjunction with the ▼▲ buttons to access the configuration menus.
Power Audio Audio Setup The MW5 can be powered by AA batteries, a Shure SB900 rechargeable battery, or through the Shure AFP522DC camera mount. Use the following steps to connect the receiver to a camera. These steps can also be used to connect to other devices, such as field recorders.
Important! Before you begin: configures the receiver with a compatible tonekey, audio companding, and IR sync pro- tocol. The MW5 does not have Axient ShowLink capabilities. • Turn off the RF on the transmitters for the systems you are setting up. (This prevents them from interfering with the frequency scan.)
Manual Frequency Selection Restore To manually adjust group, channel or frequency, use the RADIO > SET FREQ menu. Resets MW5 to factory default parameters ( SYST CONF > RESTORE ). Squelch Select and press enter . Squelch mutes the audio output from the receiver when the transmitter tonekey RF sig- nal becomes low or in the presence of high RF noise.
Page 9
Using Multiple Transmitters with a Single Add Current Receiver (MTx Mode) Use this method to add entries to the MTx list individually, based on the current settings of the receiver. • Tune the receiver to the desired frequency. You may also want to adjust the reciever The MTx feature stores a list of presets, allowing you to easily switch from one transmit- camera output level, as this is also stored in the list entry.
30 dB SINAD (±3 dB) Battery Type 1. Enter MTx mode ( UTILITIES > MTxMODE > ENTER MODE ). Compatible Frequencies Rechargeable Li-Ion (Shure SB900) or AA 2. Use the ▼▲ buttons to select an entry from the list. batteries (LR6, 1.5 V Per band 40 (band dependent) 3.
This Radio equipment is intended for use in musical professional entertainment and similar applications. Optional Accessories This Radio apparatus may be capable of operating on some frequencies not authorized in your region. Please contact your national authority to obtain information on authorized frequencies and RF power levels for wireless microphone products. Shure Rechargeable Lithium Battery SB900 Shure 8-bay Recharging Station SBC800 Shure Portable Battery Charger SBC210...
Page 12
Approved under the Declaration of Conformity (DoC) provision of FCC Part 15. Note: Use this receiver only with the included power supply or a Shure-approved The CE Declaration of Conformity can be obtained from Shure Incorporated or any of its equivalent.
Page 14
exit enter sync scan exit enter sync exit enter sync exit enter sync scan scan exit enter sync scan exit enter sync scan exit enter sync scan 2 sec exit enter sync exit enter sync scan scan exit enter sync exit enter sync scan scan exit enter sync scan...
Page 22
受信機を接続しているコ ンセン トとは別の回路にあるコ ンセン トに機器を接続する。 次の基準の要件を満たします。 EN 300 422第1部、 第2部, EN 301,489第1部、 第9部, EN60065. • 販売店または熟練したラジオ/テレビ技術者に相談する。 カナダ国内にてICによ りRSS-123認定。 警告 : 不適切な電池を使用すると爆発の危険があり ます。 Shure対応電池のみを使用してくだ IC: 616A-MW5。 さ い。 本クラスBデジタル機器はCanadian ICES-003に適合しています。 Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.
Page 23
UTILITIES MTx MODE ENTER MODE ADD CURRENT DELETE ALL COPY/PASTE VOL ASSIGN exit enter sync scan exit enter sync scan TONE GEN RX NAME LOCK PANEL SYNC SYST CONF SYS MODE SET MODE RADIO SET FREQ UHFR FULL SCAN RUN SCAN DISPLAY SPECTRUM SQUELCH...
