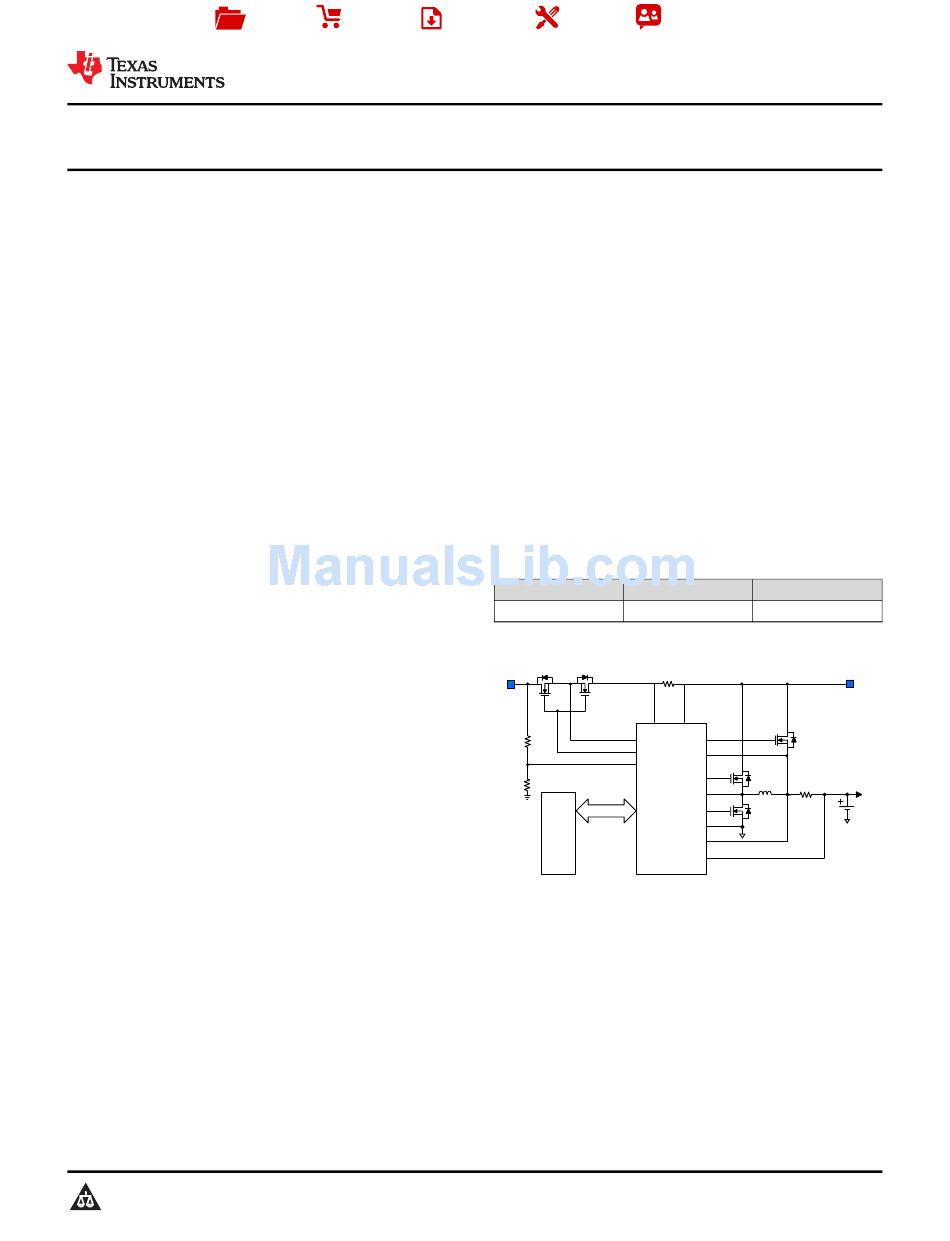

bq24725A 1-4 Cell Li+ Battery SMBus Charge Controller with N-Channel Power MOSFET

1 Features

SMBus Host-Controlled NMOS-NMOS
1
Synchronous Buck Converter with Programmable
615kHz, 750kHz, and 885kHz Switching
Frequencies
Automatic N-channel MOSFET Selection of
System Power Source from Adapter or Battery
Driven by Internal Charge Pumps
Enhanced Safety Features for Over Voltage
Protection, Over Current Protection, Battery,
Inductor and MOSFET Short Circuit Protection
Programmable Input Current, Charge Voltage,
Charge Current Limits
– ±0.5% Charge Voltage Accuracy up to 19.2V
– ±3% Charge Current Accuracy up to 8.128A
– ±3% Input Current Accuracy up to 8.064A
– ±2% 20x Adapter Current or Charge Current
Amplifier Output Accuracy
Programmable Battery Depletion Threshold, and
Battery LEARN Function
Programmable Adapter Detection and Indicator
Integrated Soft Start
Integrated Loop Compensation
Real Time System Control on ILIM pin to Limit
Charge Current
AC Adapter Operating Range 4.5V-24V
5µA Off-State Battery Discharge Current
0.65mA (0.8mA max) Adapter Standby Quiescent
Current
2
20-pin 3.5 x 3.5 mm
VQFN Package

2 Applications

Portable Notebook Computers, UMPC, Ultra-Thin
Notebook, and Netbook
Handheld Terminal
Industrial and Medical Equipment
Portable Equipment
1
An IMPORTANT NOTICE at the end of this data sheet addresses availability, warranty, changes, use in safety-critical applications,
intellectual property matters and other important disclaimers. PRODUCTION DATA.
Sample &
Product
Buy
Folder
Selector and Advanced Circuit Protection
Tools &
Technical
Software
Documents
SLUSAL0A – SEPTEMBER 2011 – REVISED AUGUST 2014

3 Description

The bq24725A is a high-efficiency, synchronous
battery charger, offering low component count for
space-constraint, multi-chemistry battery charging
applications.
The bq24725A utilizes two charge pumps to
separately
drive
RBFET and BATFET) for automatic system power
source selection.
SMBus controlled input current, charge current, and
charge voltage DACs allow for very high regulation
accuracies that can be easily programmed by the
system power management micro-controller.
The bq24725A uses internal input current register or
external ILIM pin to throttle down PWM modulation to
reduce the charge current.
The bq24725A charges one, two, three or four series
Li+ cells.
Device Information
PART NUMBER
bq24725A
(1) For all available packages, see the orderable addendum at
the end of the datasheet.
Adapter
4.5-24V
N-FET Driver
Adapter Detection
SMBus Controls V & I
with high accuracy
SMBus
HOST
Support &
Community
bq24725A
n-channel
MOSFETs
(1)
PACKAGE
BODY SIZE (NOM)
VQFN (20)
3.50mm x 3.50mm
R
AC
Enhanced Safety:
OCP, OVP, FET Short
N-FET Driver
bq24725A
Hybrid Power
Boost Charge
R
SR
Controller
Integration:
Loop Compensation; Soft-Start
Comparator
(ACFET,
SYS
Battery
Pack
1S-4S
