Installing the Transceiver

Mounting the Transceiver

Install the transceiver so it is protected from vibration or shock.
•
Use double-sided tape or Velcro® to mount the transceiver.
•
Position the transceiver where it will not contact other solid components.
•
Mount the transceiver away from moving parts, sharp corners, and possible contaminants (fuel,
•
dirt, etc.).
When possible, waterproof and protect the transceiver by wrapping it in foam rubber and
•
placing it in a rubber balloon or plastic bag. If you accidentally get moisture or fuel inside the
transceiver, intermittent or erratic operation may result.
Position the transceiver so the sensors can be easily connected to it.
•
Antenna
The thinner portion at the end of the antenna wire must be outside the vehicle body
•
DO NOT CUT the antenna wire
•

Connecting the Transceiver

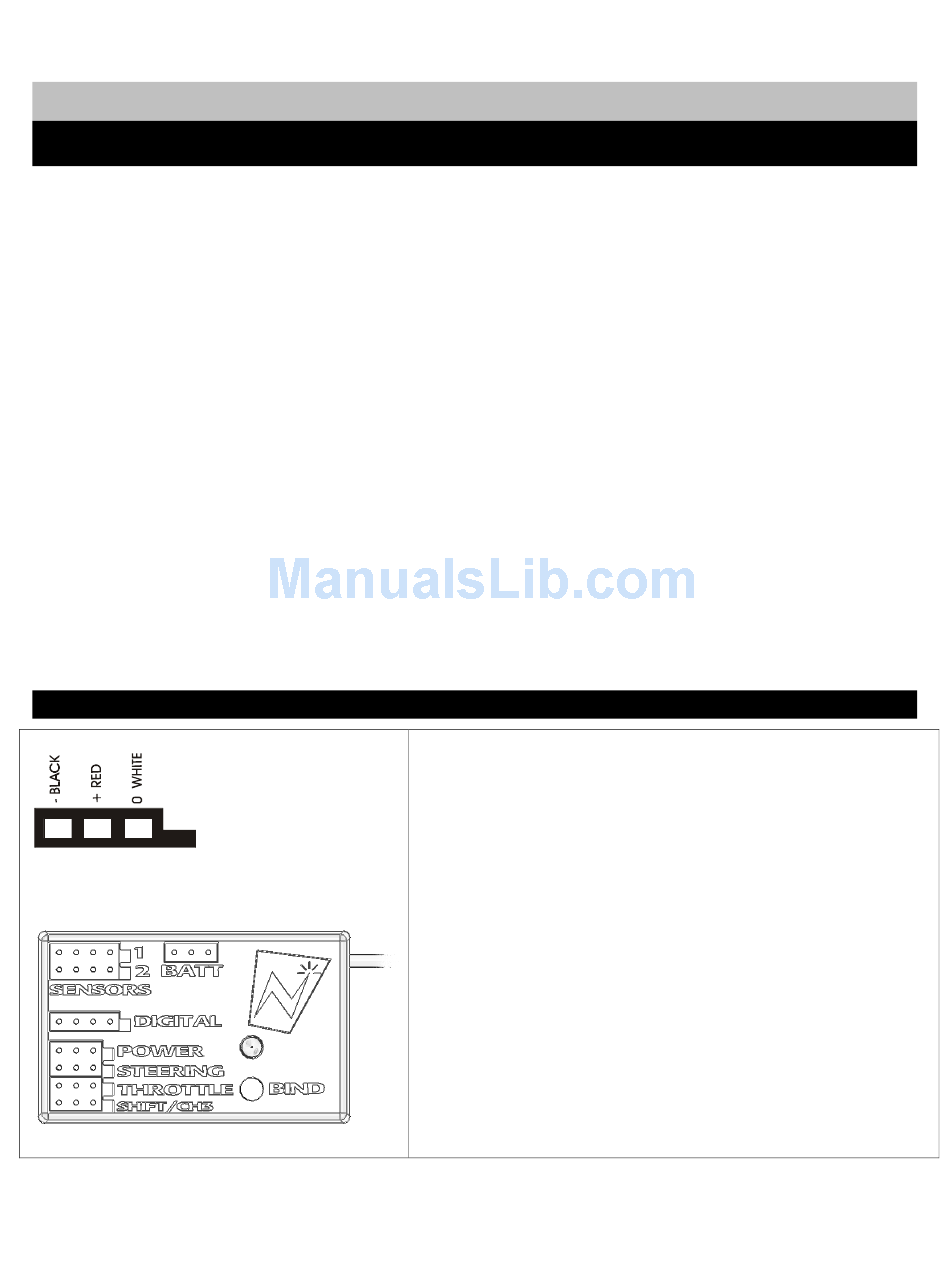

Servo Input Plugs
The transceiver is designed to use Futaba J-style input plugs
with wiring order as shown in the diagram.
Servo lead wires MUST be in this order. If the servo wires
are in a different order, you must re-order the wires in the
input plug. Check with your servo manufacturer about the
color and order of the servo lead wiring.
When you insert the servo input plug into the transceiver,
note that the input plug may have an alignment tab. Orient
the alignment tab properly before inserting the input plug.
To remove in input plug from the transceiver, pull the input
plug rather than the servo wires.
