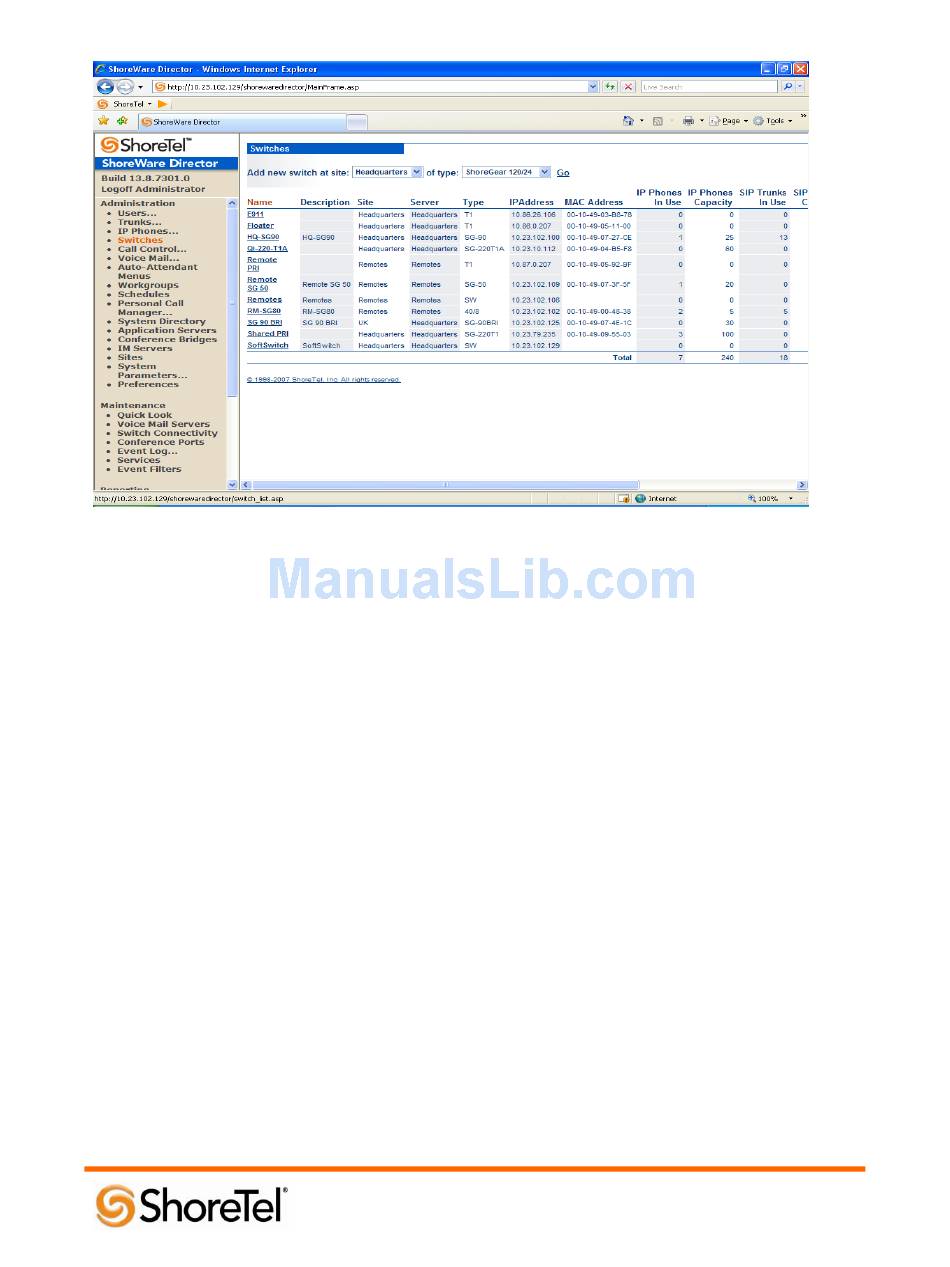

Figure 4 – Administration/Switches
This action brings up the "Switches" screen. From the "Switches" screen, simply select the name of the
switch to configure. The "Edit ShoreGear ...Switch" screen will be displayed. Within the "Edit
ShoreGear ...Switch" screen, define one of the "Port Type" settings from the available ports to "100
SIP Proxy" (Figure 5), then save the change.
Note:
If your installation requires more than 100 SIP extensions, configure the "Port Type" as
"100 SIP Proxy" as necessary (i.e. two ports configured for "100 SIP Proxy" will provide 200 SIP
extensions).
