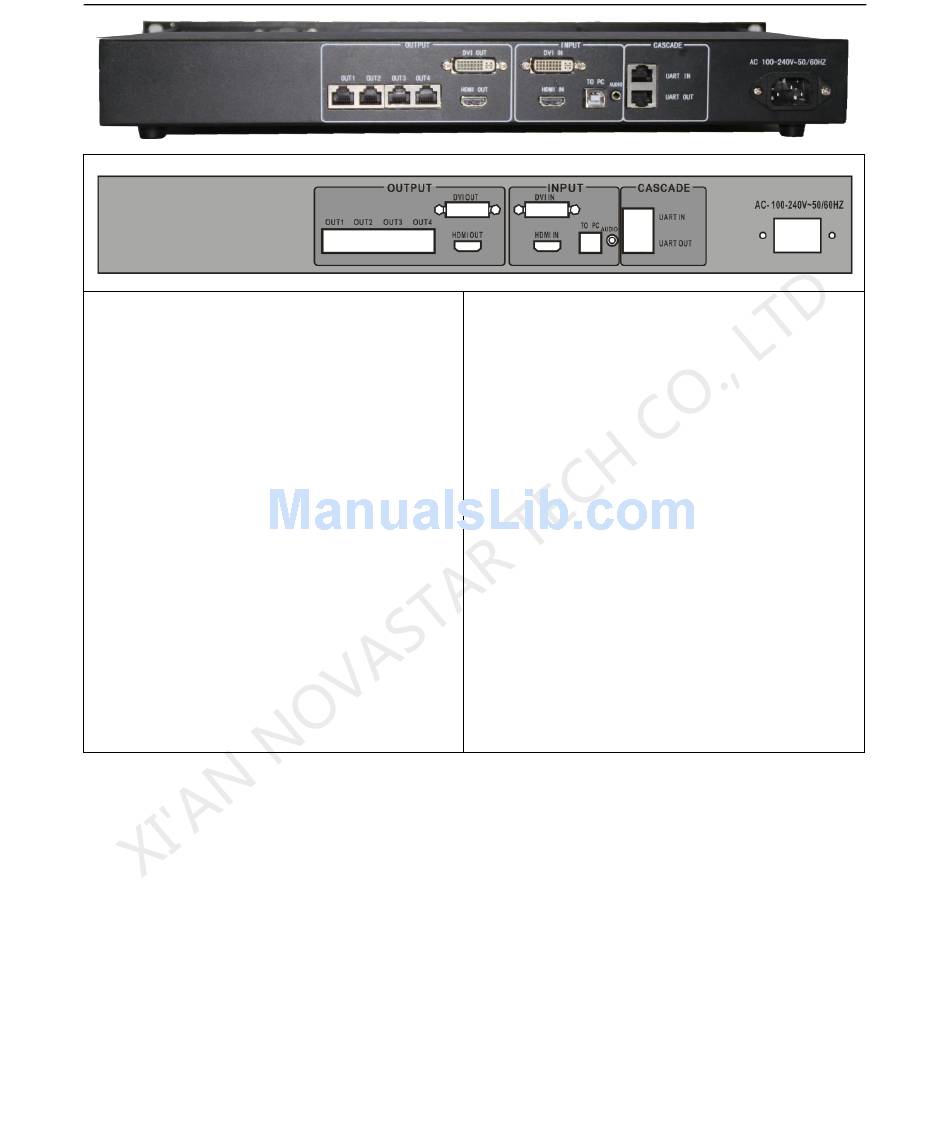

DVI OUT : Indicate the digital visual interface
(DVI) output interface.
DVI IN : Indicate the DVI input interface.
OUT1-OUT2 : Indicates output by four network
interfaces.
HDMI OUT: Indicate the HDMI output interface.
HDMI IN : Indicate the HDMI input interface.

3 Operation Instructions

All operations on the MCTRL660 are implemented through the button and return key.
Button: Press the button to enter a menu. After entry into a menu, rotate the button to adjust the value or
select a submenu.
Return key: Press the return key to exit from the current menu or operation.
TO PC : Indicate the interface for connecting the
computer.
AUDIO : Indicate the audio input interface.
UART IN : Indicate the cascading input interface of
serial ports.
UART OUT: Indicate the cascading output
interface of serial ports.
AC-100-240V-50/60HZ: Indicate the AC power
interface.
