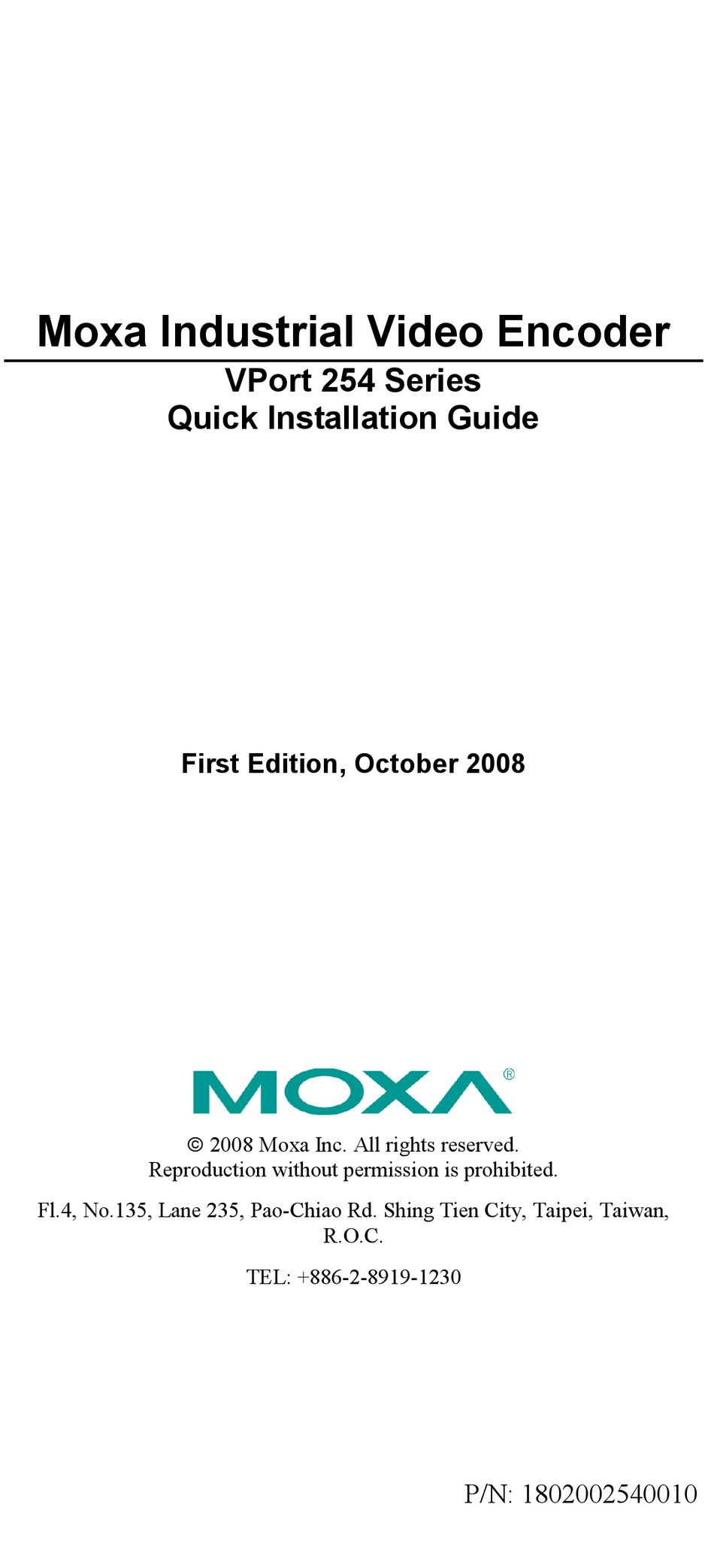

Moxa Industrial Video Encoder
VPort 254 Series
Quick Installation Guide
First Edition, October 2008
2008 Moxa Inc. All rights reserved.
Reproduction without permission is prohibited.
Fl.4, No.135, Lane 235, Pao-Chiao Rd. Shing Tien City, Taipei, Taiwan,
R.O.C.
TEL: +886-2-8919-1230
P/N: 1802002540010
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Moxa Technologies VPort 254 Series
Summary of Contents for Moxa Technologies VPort 254 Series
- Page 1 Moxa Industrial Video Encoder VPort 254 Series Quick Installation Guide First Edition, October 2008 2008 Moxa Inc. All rights reserved. Reproduction without permission is prohibited. Fl.4, No.135, Lane 235, Pao-Chiao Rd. Shing Tien City, Taipei, Taiwan, R.O.C. TEL: +886-2-8919-1230...
-
Page 2: Package Checklist
Overview The VPort 254 is a 4-channel industrial video encoder that uses the ASIC compression chip to provide video performance up to CIF (352 x 240) @ 120 FPS for a total of 4 channels. To meet the wide range of requirements from end-users, the VPort 254 is designed to support dual-codecs, including MJPEG and MPEG4 algorithms. - Page 3 Features High Performance Audio-Video Networking Solution Works with NTSC/PAL analog video cameras Supports MPEG4/MJPEG video compression technologies 4 BNC video inputs Video stream up to 120 frames/sec in CIF (352 x 240) resolution through a total of 4 channels ...
- Page 4 Intelligent Alarm Trigger Capability Built-in Video Motion Detection (VMD) (firmware version V2.0 and later) Equipped with 4 DIs and 2 relays (DO) for external sensors and alarms (firmware version V2.0 and later) Pre, trigger, and post alarm snapshot images provided (firmware version V2.0 and later) ...
- Page 5 VPort 254 Panel Layout Grounding screw RS-232 console port Hardware reset button 8-pin terminal block for Relay 1, Relay 2, and power input 2 (PWR2) 10-pin terminal block for DI 1, DI 2, DI 3, DI 4, power input 1 (PWR1) Heat dissipation orifices LEDs for STAT, PWR1,...
-
Page 6: First-Time Installation And Configuration
If one of the power inputs fails, the FAULT LED will light up in red if the power failure alarm is enabled. NOTE The VPort 254 series support power input specifications of 12-32 VDC for 12/24 VDC power input, or 18-30 VAC for 24 VAC power input (note that this is different from Moxa EDS switch’s... - Page 7 Step 4: Connecting motorized PTZ cameras and serial devices The VPort 254 has 2 RS-232/422/485 ports. One is a COM PORT with DB9 male connector, and the other is a PTZ PORT with 5-pin terminal block connector. Both ports can be used for connecting PTZ control cables for controlling PTZ cameras over the TCP/IP network.
- Page 8 Step 5: Configure the VPort 254’s IP address After powering on the VPort 254, wait a few seconds for the POST (Power On Self Test) to run. The STAT LED turns green to indicate that the POST process has completed. The IP address will be assigned when the 10 or 100 Mbps NETWORK LED blinks.
- Page 9 1. Run the edscfgui.exe program to search for the VPort and EDS switches. After the Utility window opens, select or click on Broadcast Search, which is located under the List Server menu, to initiate a search (note that you can also click on Broadcast Search icon to initiate a search).
- Page 10 NOTE Broadcast Search can only search for devices connected to the same LAN subnet as the VPort. If your devices are located on a different LAN subnet, use the “Specify IP Address” function to search for the device by keying in the IP address. 4.
-
Page 11: Video Information
Step 6: Log in to the VPort 254 web-based manager Type the IP address in the web browser’s address input box and then press enter. Step 7: Install the ActiveX Control Plug-in A security warning message will appear the first time you access the VPort’s web-based manager. - Page 12 Step 9: Accessing the VPort’s System Configuration Click on System Configuration to access the overview of the system configuration to change the configuration. Model Name, Server Name, IP Address, MAC Address, Firmware Version, and LED Status appear in the green bar near the top of the page. Use this information to check the system information and installation.
-
Page 13: Mounting Dimensions (Unit = Mm)
NOTE After accessing the VPort 254’s web-based manager, administrators should access System Configuration System Account to set up the administrator’s password and enable the authentication function. The administrator account name is admin. An authentication window will pop up requesting the account name and password each time the VPort 254 is accessed. -
Page 14: Din-Rail Mounting
DIN-Rail Mounting The aluminum DIN-Rail attachment plate should already be attached to the back panel of the VPort 254 when you take it out of the box. If you need to reattach the DIN-Rail attachment plate to the VPort 254, make sure the stiff metal spring is situated towards the top, as shown in the figures below. -
Page 15: Wiring Requirements
NOTE Test the screw head and shank size by inserting the screw into one of the keyhole shaped apertures of the wall mounting plates, before it is screwed into the wall. STEP 3: Once the screws are fixed in the wall, insert the four screw heads through the large parts of the keyhole-shaped apertures, and then slide the VPort 254 downwards, as indicated below. -
Page 16: Wiring The Redundant Power Inputs
Wiring the Redundant Power Inputs The VPort 254 has two sets of power input, power input 1 and power input 2, which are located on the 6-pin and 8-pin terminal block connectors. Top and front views of the terminal block connectors are shown here. STEP 1: Insert the negative/positive DC or AC wires into the V-/V+ terminals. -
Page 17: Wiring The Digital Inputs
Wiring the Digital Inputs VPort 254 has four sets of digital input, DI1, DI2, DI3 and DI4. Each DI consists of two contacts of the 10-pin terminal block connector on VPort’s top panel. Top and front views of one of the terminal block connectors are shown here. STEP 1: Insert the negative (ground)/positive DI wires into the ┴/I1 terminals. -
Page 18: Basefx Ethernet Port Connection
MDI Port Pinouts MDI-X Port Pinouts 8-pin RJ45 Signal Signal RJ45 (8-pin) to RJ45 (8-pin) Straight-Through Cable Wiring RJ45 (8-pin) to RJ45 (8-pin) Cross-Over Cable Wiring 100BaseFX Ethernet Port Connection The concept behind the SC port and cable is quite straightforward. Suppose that you are connecting devices I and II. - Page 19 COM Port A COM PORT is located on the front panel for connecting a PTZ motorized camera or serial device. The COM port transmits RS-232 or RS-422/485 signals over the TCP/IP network. Users can use this COM port (DB9 male connector) to monitor data or control a serial device, or for the control of a PTZ motorized camera.
-
Page 20: Led Indicators
LED Indicators The front panel of Moxa’s VPort 254 contains several LED indicators. The function of each LED is described in the table below. Color State Description Steady Hardware initialization stage. Flashing Software initialization stage. Green/ STAT Steady System has booted up and is ready to run. Green Flashing Firmware is being upgraded. -
Page 21: Specifications
Specifications Video Video Compression MPEG4, MJPEG Video Inputs 4, BNC connector (1 Vpp, 75 ohms) NTSC/PAL Auto-sensing or manual Video Resolution and FPS (frames per second): NTSC Size Max. FPS Size Max. FPS QVGA 320 x 240 320 x 288 352 x 240 352 x 288 640 x 480... - Page 22 KV ESD protection Console port 1 RS-232 RJ45 port GPIO Digital Inputs 4, max. 8 mA Low: +13V to +30V High: -30V to +3V Relay Output 2 (max. 24 VDC @ 1A) LED Indicators STAT Indicatesif system is booted up properly or not PWR1 Power 1 PWR2...
- Page 23 Alarm Features (firmware version V2.0 and later) Video Motion detection with sensitivity tuning: Daily repeat timing schedule JPEG snapshots for pre/trigger/post alarm images Automatic transfer of stored images via email or FTP with event-triggered actions HTTP Action setting for customized alarm messages being sent via HTTP Event Server PAN/TILT/ZOOM ...
