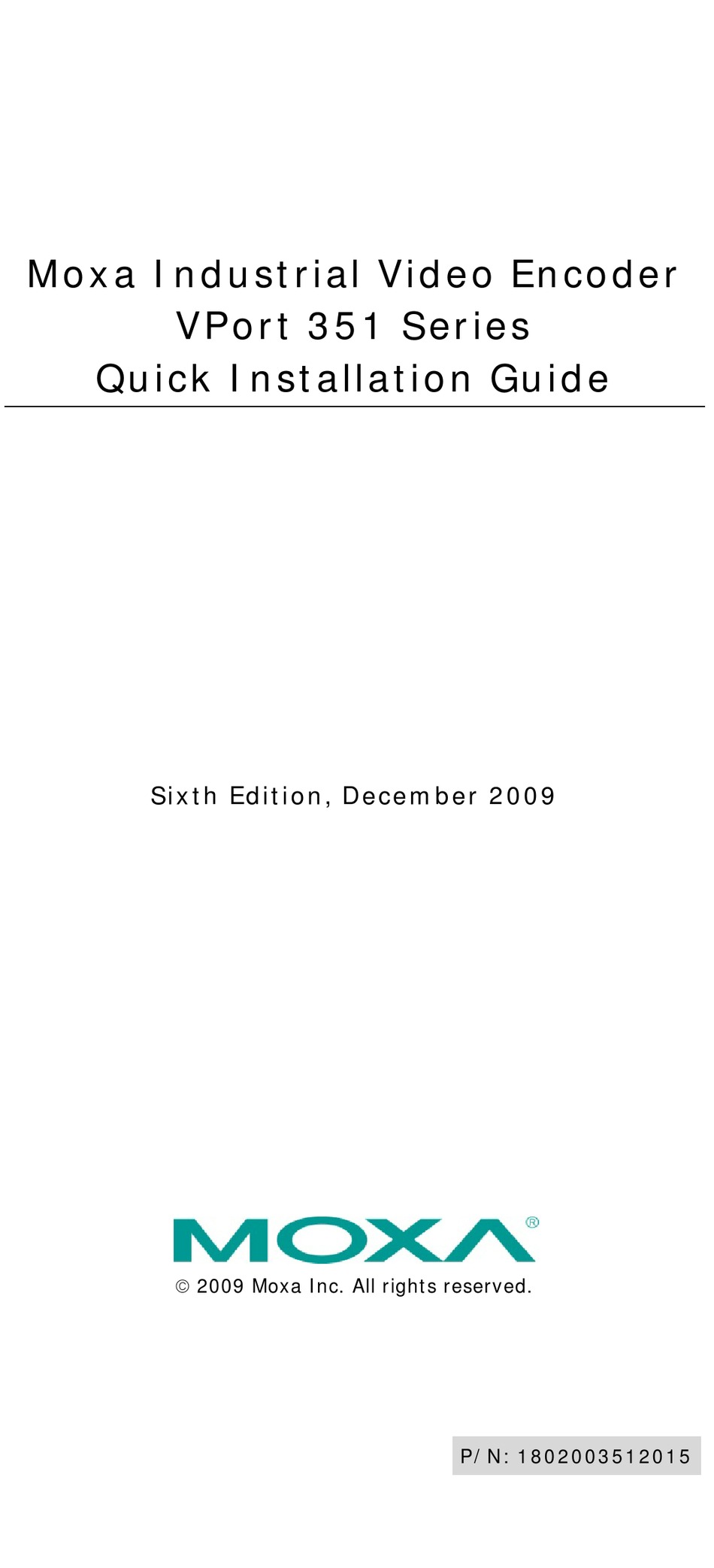

- Page 1 Moxa Industrial Video Encoder VPort 351 Series Quick Installation Guide Sixth Edition, December 2009 2009 Moxa Inc. All rights reserved. P/N: 1802003512015...
-
Page 2: Package Checklist
Overview The VPort 351 is a high performance, 1-channel industrial video encoder that provides up to full D1 (720 x 480) @ 30 FPS video performance. The VPort 351 is designed to support multi-codecs, including MJPEG and MPEG4 algorithms. In addition, a continuous video pre/post event-trigger video record function is supported to enhance video surveillance systems. - Page 3 • 1 auto-sensing 10/100BaseT(X) Ethernet port or 100baseFX (SC connector) • TCP, UDP, and HTTP network transmission modes • Allows simultaneous access of up to 10 clients • Set video quality to CBR (constant bit rate) or VBR (variable bit rate) •...
- Page 4 VPort 351 Panel Layout 1. Grounding screw 2. RS-232 console port 3. Hardware reset button 4. 6-pin terminal block for DI 1, DI 2, power input 2 (PWR2) 5. 8-pin terminal block for Relay 1, Relay 2, power input 1 (PWR1) 6.
-
Page 5: First-Time Installation And Configuration
First-Time Installation and Configuration Before installing the VPort 351 video encoder, check to make sure that all items in the Package Checklist are in the box. In addition, you will need to use a notebook or PC equipped with an Ethernet port. Step 1: Select the Power Source The VPort 351 can be powered by a DC power input from 12 to 32 VDC, or an AC power input from 18 to 30 VAC. - Page 6 RS-422/485 RS-232 Ground Ground T-\D- Tx-/ Data- T+\D+ Tx+/ Data+ To enable PTZ control, configure the PTZ control protocol in the web-based manager. NOTE The PTZ control protocol is not standardized. To use a particular PTZ control protocol, the video server must support the driver for that protocol.
- Page 7 Using the Moxa VPort and EtherDevice Configurator Utility (edscfgui.exe) 1. Run the edscfgui.exe program to search for VPorts and EDS switches. After the Utility window opens, select or click on Broadcast Search (under the List Server menu or click on Broadcast Search icon ) to initiate a search.
- Page 8 NOTE Broadcast Search can only search for devices connected to the same LAN domain as the VPort. If your devices are located on different LAN domain, use the Specify IP Address function to search for the device by keying in the IP address. 4.
- Page 9 NOTE For Windows XP SP2 or above operating systems, the ActiveX Control component will be blocked for system security reasons. In this case, the VPort’s security warning message window may not appear. Users should unblock the ActiveX control function or disable the security configuration to enable the installation of VPort’s ActiveX Control component.
- Page 10 NOTE After accessing the VPort 351’s web-based manager, administrators should access System Configuration System Account to set up the administrator’s password and enable the authentication function. The administrator account name is admin. An authentication window will pop up requesting the account name and password each time the VPort 351 is accessed.
-
Page 11: Mounting Dimensions (Unit = Mm)
Mounting Dimensions (unit = mm) DIN-Rail Mounting The aluminum DIN-Rail attachment plate should already be attached to the back panel of the VPort 351 when you take it out of the box. If you need to reattach the DIN-Rail attachment plate to the VPort 351, make sure the stiff metal spring is situated towards the top, as shown in the figures below. -
Page 12: Wall Mounting (Optional)
Wall Mounting (Optional) Follow the steps below to mount the VPort 351 on a wall or panel. STEP 1: Remove the aluminum DIN-Rail attachment plate from VPort 351, and then attach the wall mount plates, as shown in the diagrams below. ⇒... -
Page 13: Atex Information
ATEX Information 1. Certificate number DEMKO 09 ATEX 0812123X 2. Ambient range (-40°C ≤ Tamb ≤ 75°C) 3. Certification string (Ex nC nL IIC T4) 4. Standards covered ( EN60079-0:2006, EN60079-15:2005) 5. The conditions of safe usage: • These products must be mounted in an IP54 enclosure. •... -
Page 14: Wiring The Redundant Power Inputs
You should also pay attention to the following: • Use separate paths to route wiring for power and devices. If power wiring and device wiring paths must cross, make sure the wires are perpendicular at the intersection point. NOTE: Do not run signal or communications wiring and power wiring in the same wire conduit. -
Page 15: Wiring The Relay Output
Wiring the Relay Output The VPor 351 has two sets of relay outputs, labeled RELAY 1 and RELAY 2, located on the 8-pin terminal block connector. Each relay output uses 3 of the contacts on the 8-pin terminal block. The terminal block is located on the VPor 351’s top panel. -
Page 16: Communication Connections
Communication Connections VPort 351 models have one RJ45 console port (RS-232 interface), and 1 10/100BaseT(X) Ethernet port or 1 100BaseFX (SC-type connector) fiber port. RS-232 Connection VPort 351 has one RS-232 (10-pin RJ45) console port, located on the top panel. Use either an RJ45-to-DB9 or RJ45-to-DB25 cable (see the cable following wiring diagrams) to connect VPort 351’s console port to your PC’s COM port. -
Page 17: 10/100Baset(X) Ethernet Port Connection
RJ45 (10-pin) to DB25 (F) Cable Wiring 10/100BaseT(X) Ethernet Port Connection The 10/100BaseT(X) port located on the VPort 351’s front panel is used to connect to Ethernet-enabled devices. The following table shows pinouts for both MDI (NIC-type) ports and MDI-X (HUB/Switch-type) ports. We also show cable wiring diagrams for straight-through and cross-over Ethernet cables. -
Page 18: Basefx Ethernet Port Connection
100BaseFX Ethernet Port Connection The concept behind the SC port and cable is easy to understand. Since optical signals do not require a circuit to transmit data, one cable is used to transmit data and one cable is used to receive data, providing full-duplex transmission. -
Page 19: Led Indicators
LED Indicators Several LED indicators are located on the front panel of the VPort 351. The function of each LED is described in the table below. Color State Description Hardware initialization FLASH Software initialization STAT System boot-up GREEN FLASH Firmware upgrade proceeding Power is being supplied to power input PWR1 AMBER PWR1... -
Page 20: Specifications
Specifications Video Video Compression MPEG4, MJPEG Video Input 1, BNC Connector Video Output 1, Loop-through BNC Connector NTSC/PAL Auto-sensing or Manual Video Resolution and FPS (Frames per second): NTSC Size Max. FPS Size Max. FPS QVGA 320 × 240 320 × 288 352 ×... - Page 21 Mechanical Casing IP30 protection, metal case Dimension (W x D x H) 52.98 x 135 x 105 mm (2.09 x 5.31 x 4.13 in) Weight 960 g Installation DIN-Rail or wall mounting Environmental Operating Temperature 0 to 60°C (32 to 140°F) -40 to 75°C (-40 to 167°C) for –T models Storage Temperature -40 to 85°C (-40 to 185°F)
- Page 22 Software Bundled Free Moxa SoftDVR Lite 1- to 4-ch IP Surveillance Software for viewing & recording (please check the release information on Moxa’s website) Technical Support Contact Information www.moxa.com/support Moxa Americas: Moxa China (Shanghai office): Toll-free: 1-888-669-2872 Toll-free: 800-820-5036 Tel: 1-714-528-6777 Tel: +86-21-5258-9955...
